Reliable M Series for PEM Electrolysis Products from Nel Hydrogen

As the supply of renewable energy to the electricity grid increases, the ability to match the intermittent supply with demand becomes more and more problematic for power plant operators. As the deployment meets and exceeds 20% capacity, which some countries and regions already experience, grid balancing problems become acute, causing the curtailment of wind. This factor is driving the need to look for long-term, large-scale energy storage solutions.

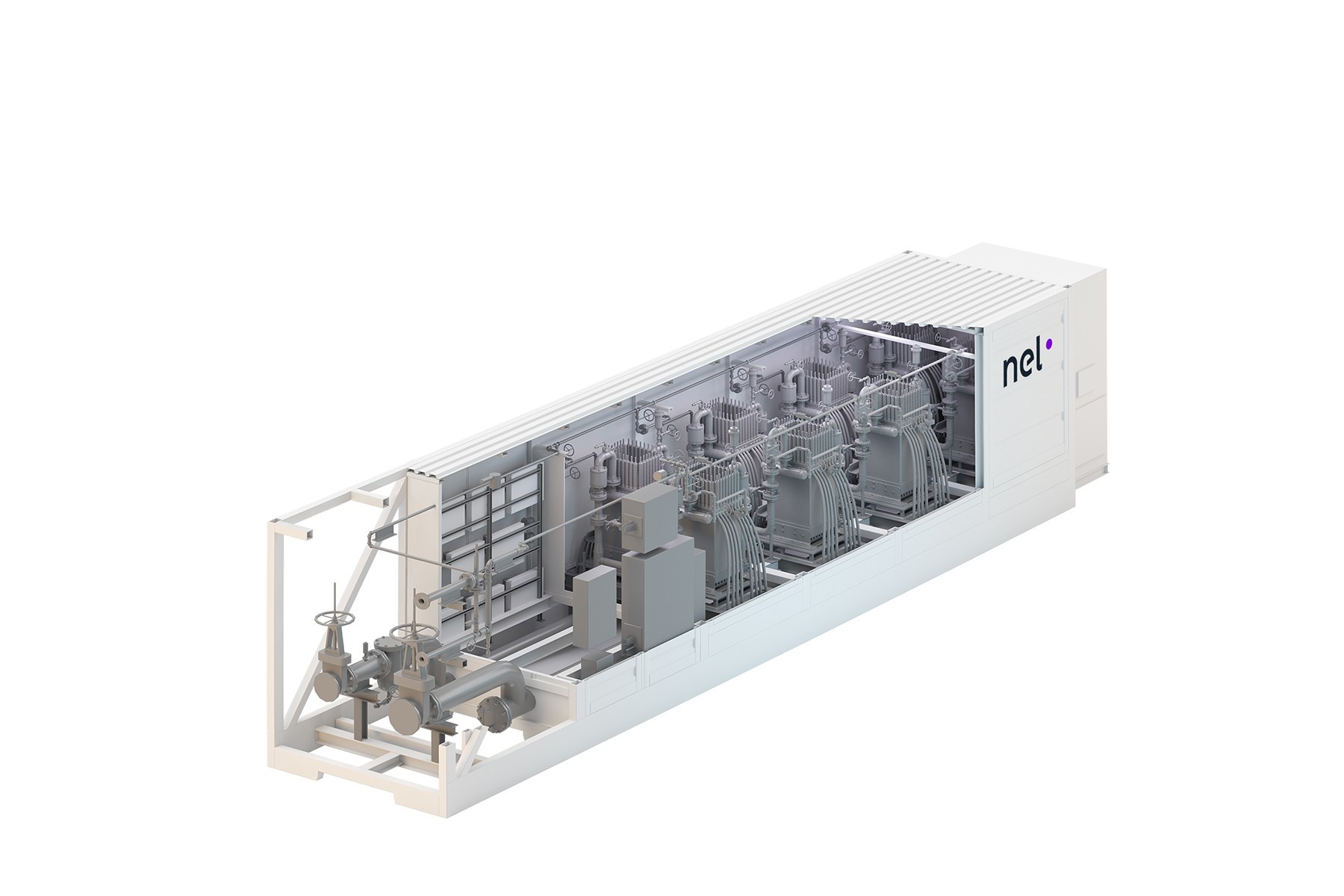

Nel Hydrogen continues its successful history of using reliable and safe PEM electrolysis products at relevant scale for traditional and emerging markets by adding the M Series product to its portfolio. The M Series is an innovative ground-breaking product that has the capacity to integrate renewable sources of production, convert excess electricity to produce hydrogen and store it as energy for future use.

It is sized at a scale that can accept 1 and 2 MW of power and generate nearly 1000 kg of hydrogen per day. The resulting hydrogen can be injected into the natural gas grid (Power-to-Gas) and can be used for hydrogen fuel cell vehicles, biogas upgrading and industrial applications.

The scalable and modular M Series platform makes it an easy option for project managers, who are looking for a solution to meet their energy storage requirements, whether at two MWs or larger.

The M Series product was developed with quick, dynamic response in mind, in order to be adjusted to the irregular nature of renewable energy input. It can use excess renewable power and convert it into hydrogen, which can be stored for long periods for subsequent use as a fuel for mobility, heat and power generation.

Power-to-Gas technology provides the means to store and transport energy, unlike conventional storage technologies. With the existing storage facilities such as the associated underground storage and natural gas pipeline network facilities, the stored energy can be released where and when it is required most.

Energy Storage High Capacity Hydrogen Systems M Series PEM Electrolysers

As the demand for power increases globally, power grids, energy resources and the environment are facing a variety of challenges that often result in greenhouse gas emissions, increased indirect costs on society and high levels of pollution. There has been a shift to deploy renewable technology to meet various demands of the industry, providing sustainable green energy.

Unlike conventional grid power, renewable energy is often unpredictable or unavailable, causing mismatch between the periods of supply and demand. Costs of solar and wind are also approaching grid parity, prompting further penetration of renewables onto an aging infrastructure. This factor is also driving the need for high-capacity energy storage solutions.

Hydrogen produced using PEM electrolysis technology is the solution to fully leverage renewable energy.

As an energy carrier, hydrogen provides daily to seasonal storage and creates a reliable source of dispatchable green energy for the current and future needs of society. With the storage capacity of pumped hydro and the response time of a battery, PEM electrolysis provides the interface to convert excess energy from variable solar and wind power into hydrogen, which can be turned back into electricity when required, or used as a high value chemical feedstock to support a range of industrial applications.

Hydrogen-based solutions combine grid intelligence with renewable resources to provide a dependable, low-cost, environmentally conscious energy supply to support:

  • Power production
  • Power-to-gas
  • Energy storage
  • Biogas upgrade
  • Hydrogen fueling/mobility
  • Grid and micro-grid balancing and load shifting

Safety

  • Advanced differential pressure design
  • No caustic material handling
  • Meets all global safety standards

Dynamic Range

  • 0-100% variable output
  • Cold start in less than 5 minutes
  • Full ramp up/ramp down in seconds
  • Immediate response to variable input power

Flexibility

  • Scalable modular design
  • Small footprint
  • Simple installation requirements
  • Indoor or outdoor options

Reliability

  • Power cycling without stack degradation
  • > 99% availability
  • Over 2500 systems installed
  • More than 20 years of PEM experience
  • Trusted by U.S., French, British militaries

Cost Efficiency

  • Fully automatic system
  • Remote monitoring and control
  • High operating pressure
  • Low cost compared to alternate electrolysis technology
  • Minimal annual maintenance
  • High efficiency

Specifications

MODEL M200 M400
Description Large-scale, modular, skid-based, on-site hydrogen generator. Load following operation automatically adjusts input to follow supply or output to match demand.
Electrolyte Proton Exchange Membrane (PEM) - caustic-free
Hydrogen Production* 200 Nm3/hr
432 kg per 24 hours
400 Nm3/hr
864 kg per 24 hours
Delivery Pressure 30 barg / 435 psig
Hydrogen Purity* > 99.9995% (water vapor < 2 ppm, -72 °C (-98 °F) dewpoint,
N2 < 2 ppm, O2 < 1 ppm, all others undetectable)
Electrical Power Consumption 1 MW @ Cell Stacks 2 MW @ Cell Stacks

* Each platform is scalable at 50 Nm3/hr increment
* With hydrogen dryer

Industrial High Capacity Hydrogen Systems M Series PEM Electrolysers

With the increasing demand for a stable, high-volume and cost-effective hydrogen supply, critical industrial applications need turnkey solutions that provide reliable, safe and clean hydrogen. The M Series hydrogen generation system supports:

  • Ammonia production
  • Heat treating
  • Refining
  • Semiconductor manufacturing
  • Float glass manufacturing
  • Thermal spray
  • Chemical synthesis
  • Hydrogenation

The breakthrough M Series hydrogen generation system utilizes innovative Proton Exchange Membrane (PEM) water electrolysis technology to tackle global hydrogen needs.

Flexibility

  • Scalable modular design
  • 0-100% variable output
  • Small footprint
  • Simple installation requirements
  • Immediate response to variable process needs
  • Outdoor or indoor options

Cost Efficiency

  • Fully automatic system
  • High purity and high pressure
  • Remote monitoring and control
  • High efficiency
  • Low cost compared to alternate hydrogen supply methods
  • Minimum annual maintenance

Safety

  • Uninterrupted supply
  • No caustic material handling
  • Advanced differential pressure design
  • Minimal storage and handling

Reliability

  • >99% availability
  • Power cycling without stack degradation
  • Over 2500 systems installed
  • More than 20 years of PEM experience
  • Trusted by U.S., French and British militaries

Low Carbon Footprint

  • Supports sustainability objectives
  • 100% emission-free with renewable energy

Specifications

MODEL M100 M200 M400
Description Large-scale, modular, skid-based, on-site hydrogen generator. Load following operation automatically adjusts input to follow supply or output to match demand.
Electrolyte Proton Exchange Membrane (PEM) - caustic-free
Hydrogen Production* 100 Nm3/hr
216 kg per 24 hours
200 Nm3/hr
432 kg per 24 hours
400 Nm3/hr
864 kg per 24 hours
Delivery Pressure 30 barg / 435 psig
Hydrogen Purity* > 99.9995% (water vapor < 2 ppm, -72 °C (-98 °F) dewpoint,
N2 < 2 ppm, O2 < 1 ppm, all others undetectable)

* Each platform is scalable at 50 Nm3/hr increment
* With hydrogen dryer
