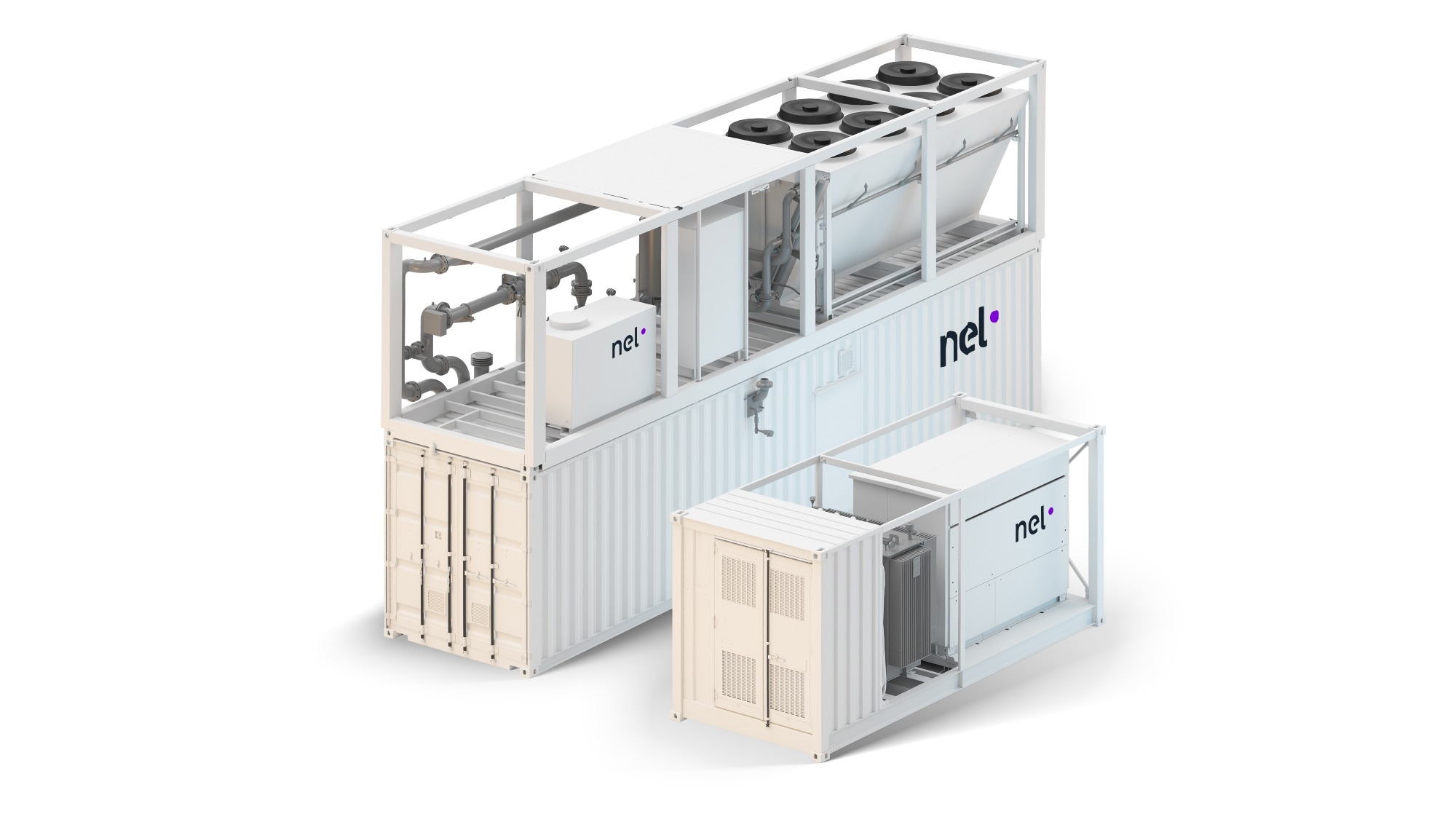

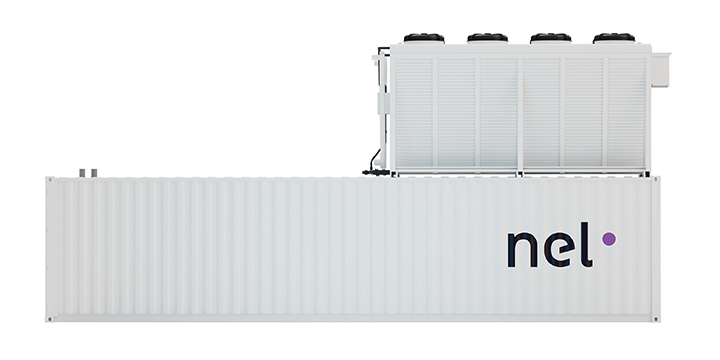

In situations where plant space is at a premium, customers may want to site their electrolysers outside. At other times customers may want to configure an electrolyser for a more turnkey operation. To satisfy those needs, we suggest containerization. The M Series MC250 and MC500 units are delivered and sited in free standing containers for maximum flexibility.
Containerized M Series electrolysers can produce up to 492 Nm3/h of hydrogen gas at 99.9995% purity on-demand. Typical applications include renewable energy storage, industrial process gas, and hydrogen fueling.
Features
- Pure hydrogen at process pressure – up to 30 barg (435 psig) hydrogen and 99.9995% purity
- Economical hydrogen supply – tracks electric costs
- Increased safety – no caustic chemicals
- Virtually zero stored hydrogen – eliminates the risk of flooding the space
- Large capacity at minimum footprint – fraction of space needed compared to large volume gas or liquid hydrogen storage
- Reliable supply of hydrogen – field-proven reliability
- Containerized design – flexible plant configurations
- Automated – safe, unattended operation
Specifications – Containerized Design
Source: Nel Hydrogen
| Specifications |
MC250 |
MC500 |
| Net Production Rate |
246 Nm3/h (9,352 SCF/h) – 531 kg/24 h |
492 Nm3/h (18,704 SCF/h) – 1,062 kg/24 h |
| Turndown Range |
10 to 100% |
10 to 100% |
| Power Consumption at Stack at 100% Capacity1 |
4.72 kWh/Nm³ – 53.2 kWh/kg |
4.72 kWh/Nm³ – 53.2 kWh/kg |
|
Purity – with optional high purity dryer
|
99.999+% |
99.999+% |
| O2-Content in H2 |
< 1 ppm v |
< 1 ppm v |
| H2O-Content in H2 |
< 5 ppm v |
< 5 ppm v |
| Delivery Pressure |
30 barg (435 psig) |
30 barg (435 psig) |
| Dimensions
Electrolyser Enclosure2 – W x D X H
Power Supply Enclosure – W x D X H
|
12.2 m x 2.5 m x 3 m
(40 ft x 8 ft x 9.9 ft)
6.1 m x 2.5 m x 2.6 m
(20 ft x 8 ft x 8.5 ft)
|
12.2 m x 2.5 m x 3 m
(40 ft x 8 ft x 9.9 ft)
6.1 m x 2.5 m x 2.6 m
(20 ft x 8 ft x 8.5 ft)
|
| Ambient Temperature (Low and High Ambient Temperature Options Available |
-20 to 40ºC (-4 to 104ºF) |
-20 to 40ºC (-4 to 104ºF) |
| Electrolyte |
Proton Exchange Membrane |
Proton Exchange Membrane |
| Feed Water Consumption |
0.9 l/Nm3 |
0.9 l/Nm3 |
For reference only – specifications are subject to change. Please contact Nel Hydrogen for solutions to best fit your needs.
1 Beginning of life and dependent on configuration and operating conditions.
2 Plus vent and rooftop equipment, site specific.
