The Hydrogen Generator for Producing Ultra-High Purity Hydrogen

Hydrogen C-Series generators produce ultra-high purity hydrogen for a wide range of applications using Proton Exchange Membrane (PEM) cell stack and PSA technology. Some of these applications include energy storage, hydrogenation, semiconductor fabrication and materials processing.

Extreme purity and composition certainty are achieved with minimal maintenance by these generators. The Hydrogen C-Series benefits hydrogen users by improving supply reliability and site safety, while at the same time reducing hydrogen storage space.

Features

The key features of the Hydrogen C-Series generators are as follows:

  • Outdoor operation package
  • Automatic H2 leak detection system
  • On board DI water system
  • Automatic production control
  • Dedicated datalogging computer
  • Auto fill water level control
  • Factory matched chiller/cooler
  • Dew point meter
  • Water monitoring system including purity monitor

Specifications

The technical specifications for the Hydrogen C-Series are provided below:

MODEL C10 C20 C30

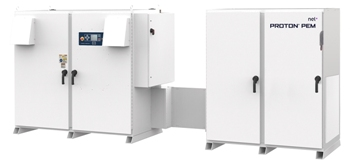

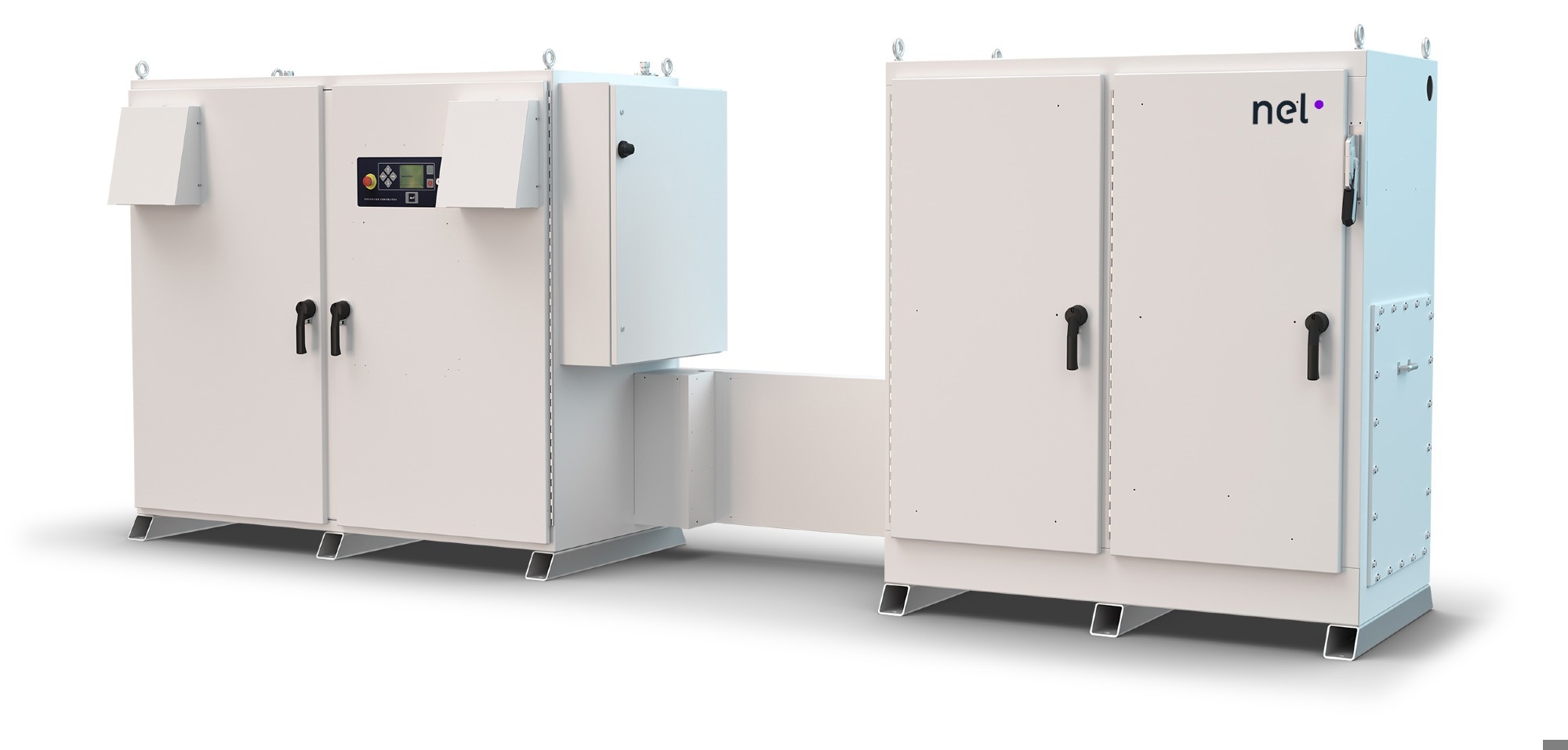

  On-site hydrogen generator in two integrated, automated, site-ready enclosures.
Dual-mode Operation (Selectable):
  • Load Following mode automatically adjusts output 0 - 100% to match demand.
  • Tank Filling mode operates with power-conservation mode during standby.
ELECTROLYTE
  Proton Exchange Membrane (PEM) - caustic-free
HYDROGEN PRODUCTION
Net Production Rate
Nm3/hr @ 0 °C, 1 bar
SCF/hr @ 70 °F, 1 atm
SLPM @ 70 °F, 1 atm
kg per 24 hours

10 Nm3/hr
380 SCF/hr
179 SLPM
21.6 kg/24hr

20 Nm3/hr
760 SCF/hr
359 SLPM
43.3 kg/24hr

30 Nm3/hr
1140 SCF/hr
538 SLPM
65.0 kg/24hr
Delivery Pressure - Nominal 30 barg / 435 psig
Power Consumed per Volume of Mass H2 Gas Produced1 6.2 kWh/Nm3
16.3 kWh/100 ft3
68.9 kWh/kg
6.0 kWh/Nm3
15.8 kWh/100 ft3
66.7 kWh/kg
5.8 kWh/Nm3
15.2 kWh/100 ft3
64.5 kWh/kg
Purity (Concentration of Impurities)1 ISO 14687-1 Type 1 grade C ISO 14687-2 Type 1 grade D
99.9998% Water Vapor < 2 ppm, -72 °C (-98 °F) Dewpoint, N2 < 2 ppm, O2 < 1 ppm,
All others undetectable
Turndown Range 0 to 100% Net Product Delivery (Automatic)
Upgradeability Field Upgradeable to a maximum of 30 Nm3/hr (1140 SCF/hr) N/A
DI WATER REQUIREMENT
Rate at Max Consumption Rate 9 L/hr
2.4 gal/hr
17.9 L/hr
4.7 gal/hr
26.9 L/hr
7.1 gal/hr
Temperature 5 °C to 40 °C / 41 °F to 104 °F
Pressure 1.0 to 4.1 barg / 10 to 60 psig
Input Water Quality ASTM Type II Deionized Water required, < 1 micro Siemen/cm (> 1 MegOhm-cm)
ASTM Type I Deionized Water recommended, < 0.1 micro Siemen/cm (> 10 MegOhm-cm)
HEAT LOAD AND COOLANT REQUIREMENT*
Coolant Liquid Cooled; Non-Fouling1
Max Heat Load 33.5 kW
114,307 BTU/hr
(9.6 tons refrigeration)
66.8 kW
227,931 BTU/hr
(19.0 tons refrigeration)
100.2 kW
341,897 BTU/hr
(28.6 tons refrigeration)
Coolant Temperature 5 °C to 40 °C / 41 °F to 104 °F
Coolant Flowrate Up to 76 L/min (20 gal/min) Up to 114 L/min (30 gal/min) Up to 167 L/min (44 gal/min)
Pressure Drop (at full flow) Up to ~3.0 barg (~45 psig) Up to ~3.0 barg (~45 psig) Up to ~3.0 barg (~45 psig)
ELECTRICAL SPECIFICATIONS
Recommended Breaker Rating 100 kVA 200 kVA 275 kVA
Electrical Specification 380, 400, 415 VAC, 3 phase, 50 Hz (+/- 10% from nominal voltage)
480 VAC, 3 phase, 60 Hz (+/- 10% from nominal voltage)
INTERFACE CONNECTIONS - Consult Mechanical Interface Diagram drawing, PD-9900-0018 for details -
H2 Product Port 3/8” Parker CPITM compression tube fitting, SS
H2 Vent Port 1” Parker CPITM compression tube fitting, SS
DI Water Port 1/2” FNPT, SS
Coolant Supply and Return Ports Electrolyzer Enclosure: 1-1/2” MNPT, brass (Cell Stack); 1/2” FNPT, brass (Hydrogen Dryer)
Power Supply Enclosure 3/4” MNPT, brass (Power Supply Cooling)
Drain Port 1/2” FNPT, brass
O2 Vent Port 1” Parker CPITM compression tube fitting, SS
Electrical Electrical terminals inside supplied fused power Disconnect Box
Communications Ethernet
CONTROL SYSTEMS
Standard Features Fully automated
E-Stop
Automatic fault detection and system depressurization
Remote start/stop
On-board H2 leak detection
Remote Alarm Form C relay, 5 A, 250 V, 150 W Max. rated switching
Remote Shutdown Safety circuit trip
ENCLOSURE CHARACTERISTICS
Product Dimensions, W x D x H
Electrolyzer Enclosure
Power Supply Enclosure

2521 mm x 1159 mm x 2007 mm / 99.3” x 45.6” x 79”
2044 mm x 1075 mm x 2007 mm / 80.5” x 42.3” x 79”
Product Weight 2041 kg / 4500 lbs 2449 kg / 5400 lbs 2812 kg / 6200 lbs
IP Rating Overall unit rating of IP56
ENVIRONMENTAL CONSIDERATIONS - Do Not Freeze -
Standard Siting Location Indoor/Sheltered; level ±1°, 0 to 100% RH non-condensing;
Non-hazardous/non-classified environment
Storage/Transport Temperature 5 °C to 60 °C / 41 °F to 140 °F
Ambient Temperature Range 5 °C to 40 °C / 41 °F to 104 °F
Altitude Range - Sea Level 2000 m / 6562 ft
Ventilation Proper ventilation must be provided from a non-hazardous area, at a rate in accordance with IEC60079-10, Zone 2 NE
SAFETY AND REGULATORY CONFORMITY
Maximum On-board H2 Inventory at Full Production 0.10 Nm3
4 SCF
0.009 kg
0.14 Nm3
5.4 SCF
0.013 kg
0.16 Nm3
6 SCF
0.014 kg
Cabinet Ventilation with Environment Vent fan draws fresh air up to 8.5 Nm3/min (300 ft3/min)
Noise dB(A) at 1 Meter < 75
Conformity cTUVus, Tmark (ISO22734-1, UL508A) CE (PED, ATEX, LVD, Mach. Dir., EMC)
