RL4401/2: Temperature Sensors with a Range of -200 °C to +110 °C

Low and High Temperature Sensors

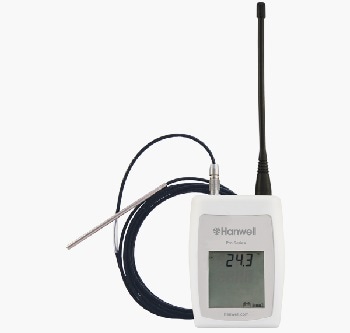

The RL4401 (single channel) and RL4402 (dual channel) 4-wire PT100 units are part of the RL4000T Series. They are fitted with 5-pin metal Lemo socket for external high- and low-temperature sensor and LCD display.

Due to the radio system requirement, these products are not available to purchase online. Customers can contact IMC for more information and discuss the product variable options most suitable to their applications:

  1. RL4401-434.075 – The RL4401 is a single channel radio transmitter
  2. RL4402-434.075 – The RL4402 is a dual channel radio transmitter

Instrument Specifications

. .
Dimensions 110 x 80 x 35 mm
Weight 200 g
Power Supply 3.6 V AA Lithium battery
Memory capacity 100,000 readings
IP Rating IP50

Technical Specification

. .
Probe Options 4 Wire PT100 – Probes below are sold separately
Option 1 J094-3-01 4 wire PT100 (3 m cable with 5-pin Lemo Plug)
Option 2 J094-5-01 4 wire PT100 (5 m cable with 5-pin Lemo Plug)
Range -200 °C to +110 °C
Accuracy ±0.1 °C
Resolution 0.1 °C

Radio Transmitter Functions

. .
Frequency Options A range of frequencies are available between 433-458 MHz. Country specific regulations apply.
Radio Power 10 mW
Radio Range 3 km over open ground
Battery Life Up to 18 months

This product can be calibrated to customers' specifications.

N.B Instrument operating range -20 °C to +65 °C in a non-condensing RH environment.

System Components

Software Required:

W700 – Standard Synergy Software Package
W706 – Validated Synergy Software Package

*See Synergy datasheet for further options

Hardware Required:

SR2 – Smart Receiver
REP – Repeater
CR2 – Controller

Accessories:

Y119 – Wall mounting bracket
88706 – AA Lithium battery
