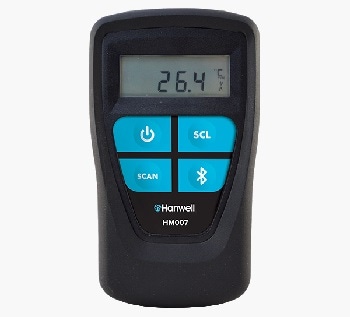

Digital Temperature Probe: HM007 ThermoBarScan

The HM007 ThermoBarScan is a handheld logging thermometer with integral barcode scanner and Bluetooth capabilities. It works as a digital temperature probe data logger. The barcode scanner records product location/identity plus time, date and temperature while the Bluetooth communication transmits the data to a mobile phone, PC or PDA for easy portable temperature logging. It is ideal for a wide variety of applications.

Features

  • Integral barcode reader
  • Logs up to 1000 times and dates temperature records
  • Built in Bluetooth communications
  • Supplied complete with PC software
  • C°/F° selectable
  • Low battery indication
  • Over range / open circuit sensor indication
  • User configurable auto switch off capability
  • Infrared sensor compatibility
  • Can be used will all available probes

Benefits

  • Reduces the risk of potentially exposing contaminated produce to consumers
  • Assists with HACCP compliance requirements
  • Automatically logs data using Bluetooth communication to reduce manual errors
  • Reduces wastage costs
  • Protects company reputation

* Infra-Red variable available on request

Specifications

Instrument

Dimensions: 160 x 70 x 55 mm
Weight: 200 g
Power Supply: PP3 9V I.E.C 6F22 battery
Battery Life: Greater than 200 hours (Alkaline)
Case Material: ABS Plastic
IP Rating: IP67

Environmental

Ambient Operating Range: 0 °C to +50 °C
Storage Temperature Range: -20 °C to +50 °C
Humidity: 0 to 70% RH
Temperature Scales: °C / °F

Electrical

Measurement Range: -200 °C to +1372 °C dependent on probe (probes sold separately)
Accuracy @ 23 °C: ±0.1% of reading ±0.2 °C
Cold Junction Compensation: 0.0075 °C/ °C
Characteristic Errors: Less than 0.05 °C
Temperature Coefficient: 0.01% of reading /°C
Resolution: 0.1° to 1000, 0.1° above 1000

Barcode

Readable Barcodes:
All UPC/EAN/JAN Codes
EAN28 Codes
Code39 Code 128

Bluetooth

Class: Class 1
Contains: FCC Id: S22btmodule-Cl1

Probe Options (Probes sold separately)

TP05 – General purpose needle probe
TP10 – Fine needle probe
TP07 – Heavy duty needle probe
TA12 – Fast response flat food probe
TS01-S – Dual surface/immersion probe
TFS01 – Food simulant probe
TFS01C – Food simulant probe cable
TP01 – Frozen food/corkscrew probe
