Scientific Image Capturing and Measuring

The Clemex Captiva is equipped with an intelligent entry-level software that allows users to capture, quantify and share images as needed. As a particularly useful tool for laboratories that require non-destructive annotations and direct measurements, this tool is equipped with a series of high definition digital cameras that provide precise clarity during sample analysis. Some of the types of measurements that can be achieved with using the Clemex Captive include:

  • Length
  • Width
  • Perimeter
  • Area
  • Aspect ratio
  • Diameter
  • Orientation
  • Sphericity
  • Roughness

Product Features

  • Intelligent image capture technology
    • High definition image quality
    • Automated shaded correction
    • Automated shading corrector provides even illumination for images
  • Image stitching
    • Available for both motorized and manual stages
    • Multiple fields can be combined to form a single composite image that can be analyzed as a whole
    • Can be combined with multi-layer grab option for uneven surfaces
    • NIST-Traceable Auto Calibration verifies the accuracy and confirms adequate calibration prior to analysis is performed
  • Extended depth of field
    • Reconstructs a perfectly focused imaged, regardless of the type of sample being analyzed

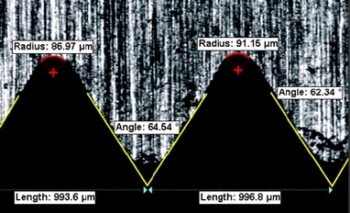

  • Automated results for direct measurements
    • Applicable for both live and stored images
    • Results and statistics are automatically produced for an unlimited number of fields
  • Non-destructive annotations
    • Allow for specific areas in the image to be explained and/or highlighted
  • Built-in spreadsheet
  • Cumulative results
  • Magnifying glass tool
    • Allows the user to resize specific area of interest within a given image

Scientific Image Capturing and Measuring

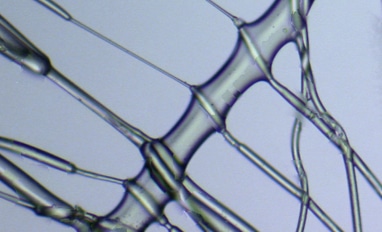

Scientific Image Capturing and Measuring - Picture 1
Scientific Image Capturing and Measuring - Picture 2
Human skin tissue
