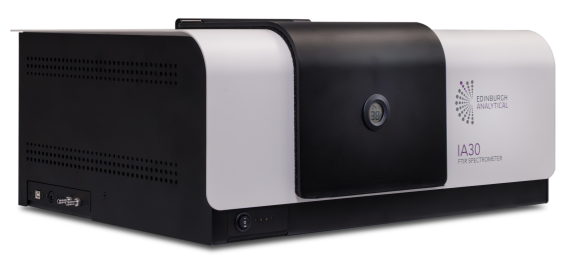

Edinburgh Analytical’s IA30 is a staple for any lab. The high-performance benchtop instrument is perfect for everyday analysis, delivering fast, accurate IR measurements for all applications.
Key Features
- Outstanding Performance: High sensitivity and spectral resolution
- Customisable: Range of accessories for different sample types and measurements
- Miracle™ Software: Powerful and intuitive software designed specifically for the IR5
- User-friendly: Simple to operate and suitable for all user levels, from beginner to advanced
- Maintenance Free: No maintenance required with moisture control technology
The IA30 is an advanced benchtop FTIR system, designed to meet both analytical and research needs across materials, including polymers, semiconductors, and pharmaceuticals. It delivers quick, precise results with an intuitive user interface, making it suitable for routine workflows and complex studies. With only one software platform, Miracle™, users can easily perform IR absorption, transmission, reflectance, and infrared photoluminescence measurements.
The instrument is built for stability and precision, with a robust interferometer mounted on an anti-vibration base to minimize external noise and interference. A long-life solid-state reference laser ensures consistent performance over time. Combined with a high-intensity IR source and broadband DLaTGS detector, the system provides reliable and reproducible data.
Users benefit from a wide range of spectral resolution options. From high-resolution scans down to 0.5 cm-1 for narrow-band spectral features, to broader resolutions (up to 32 cm-1) for rapid kinetic monitoring.
Each unit is validated via comprehensive quality checks to meet the strict performance criteria established by Edinburgh Analytical, ensuring your lab receives an instrument ready for high-precision work.
Download the Brochure for More Information
Specifications
Source: Edinburgh Analytical
| Category |
Parameter |
Description |
| Standard Configuration |
Spectral Range |
8000 - 350 cm-1 |
| |
Sensitivity |
SNR ≥ 20,000:1 |
| |
Resolution |
0.5 cm-1, 1 cm-1, 2 cm-1, 4 cm-1, 8 cm-1, 16 cm-1, 32 cm-1 |
| |
Accuracy |
0.5 cm-1 |
| |
Source |
High-intensity ceramic source |
| |
Detector |
DLaTGS |
| |
Beamsplitter |
Germanium-coated KBr |
| |
Hygroscopic Integrity |
Integrated desiccants, electronic dry-membrane, embedded LCD, and software hygrometers for maintenance-free operation |
| |
Windows |
KBr window exchangeable by user |
| |
Operating Voltage |
Universal mains input 100-240 VAC, 47-63 Hz |
| Sample Accessories |
Transmission Sample Holder |
Compatible with films and cuvettes |
| |
Attenuated Total Reflectance (ATR) |
Basic and advanced ATR models available with a choice of crystal (diamond, Ge, ZnSe) |
| |
Others |
Diffuse reflectance, custom, and third-party accessories available |
| Software |
Miracle |
PC-controlled software |
| |
Measurement Types |
Transmission, Absorption, Reflection, Kubelka-Munk |
| |
Acquisition Modes |
Live signal monitoring, single scan (including user-defined methods), kinetic series |
| Dimensions |
W x D x H |
660 mm x 540 mm x 300 mm |
| |
Weight |
37 kg |
