Choosing Picks and Accessories for Road Planing

Element Six road planing and soil stabilisation picks have been developed to help customers achieve higher productivity for a lower cost. The MasterGrade™ range of road picks have an enhanced cobalt binder matrix thanks to Element Six’s proprietary “Nano” technology. Not only does this extend the tool lifespan by up to 50%, but it provides a versatile and durable pick.

MasterGradeTM Road Picks

This durable and versatiile range reduces the need for time-consuming pick changes, which reduces operating costs and increases productivity, thereby offering a greater return on manpower and machine assets.

Product Application
RM3-M9
 part-no. 11032199

 RM3-MN9
 with Extractor Groove
 part-no.11032181
This pick is ideal for medium power to high powered machines, and well-suited to a wide range of applications
RM3-M6 XL
part-no. 11032502

RM3-MN6 XL
with Extractor Groove
part-no. 11032503
This pick is ideal for medium power to high powered machines, and well-suited to a wide range of applications
RM3-M8
part-no.11032183

RM3-MN8
with Extractor Groove
part-no.11032198
Ideal for high and medium powered machines for cost-efficient asphalt planning
RM3-M10
part-no. 11032187
Hard-wearing versatile pick for various application on high powered machines. Ideal for planning asphalt and concrete.
Price Performance Winner
RM3-M8 XL
part-no. 11032182

RM3-MN8 XL
with Extractor Groove
part-no. 11032196
Optimized head design offers applications on medium to high-powered machines.


Note: All dimensions in mm.
Standard packaging size: 50 pcs. per bucket / 3,000 pcs. per pallet.

T-Series Road Picks

Product Application
RM3-TN1
with Extractor Groove
part-no. 11032143
Ideal for asphalt planing on small machines
RM3-T6
part-no. 11032330

RM3-TN6
with Extractor Groove
part-no. 11032141
For small to medium sized machines performing asphalt planing
RM3-T9
part-no. 11032133

RM3-TN9
with Extractor Groove
part-no. 11032137
Versatile pick for medium to high powered machines, suitable for multi-purpose applications
RM3-T6 XL
part-no. 11032500

RM3-TN6 XL
with Extractor Groove
part-no. 11032501
Versatile pick for multi-purpose applications using medium to high powered machines
RM3-T8
part-no. 11032135
Ideal for cost-efficient asphalt planing, on high and medium powered machines
RM3-T8 XL
part-no. 11032147
Pick has optimized head design, perfect for applications on medium to high powered machines
RM3-T10
part-no. 11032146
Multipurpose and durable pick for various applications with high-powered machines. Ideal for use planing asphalt and concrete
RM3-TB13
part-no. 11032304
Ideal for medium to large machines, best for planing concrete
RM3-TB15
part-no. 11032305
Suitable for large machines and for use planing concrete

Note: All dimensions in mm.
Standard packaging size: 50 pcs. per bucket / 3,000 pcs. per pallet.

MastergradeTM Picks for Eco Cutter Drums and Cold Recycling

Product Application
RM3-22/BM8XL
part-no. 11032540
Suitable for asphalt applications
RM3-22/BM10
part-no. 11032541
Hard-wearing pick for asphalt and concrete surface layer applications
RM3-22/BSM18
part-no. 11032542
Hard-wearing pick for concrete applications

Pick Holder for Soil Stabilisation Picks

RH3-22-T
part-no. 13010127


Note: All dimensions in mm.
Standard packaging size: 40 pcs. per bucket / 2,400 pcs. per pallet.

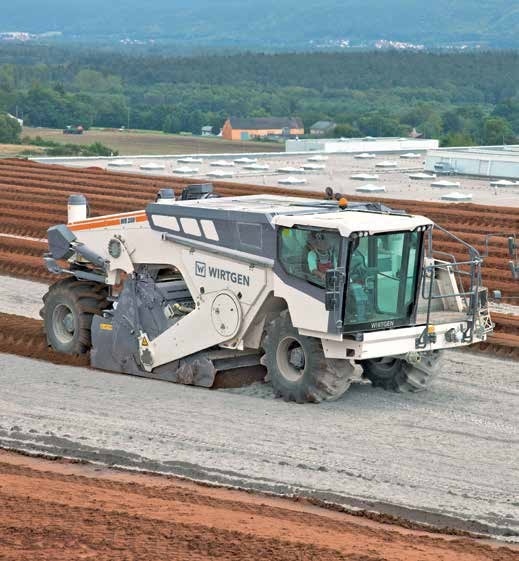

Soil Stabilisation Picks

The variety of picks offered by Element Six for soil stablisation are economical and custom-built to match a variety of soil stabilising techniques. Element Six’s picks amplify the efficiency and economy of stabilisation machines. These picks are additionally applicable on Eco Cutter Drums for Road and Cold Recycling applications.

Product Application
RM3-22/B7
part-no. 11032538
Ideal for use in mixed soil applications
RM3-22/ B7 HD
part-no. 11032558
Hard-wearing pick for use in mixed soil applications
RM3-22/B10.1
part-no. 11032539
Hard-wearing pick, suitable for mixed soil applications
RM3-22/BS13
part-no. 11032550
Ideal pick for use in stony soil applications
RM3-22/BS15
part-no. 11032551
Durable pick for stony soil applications
RM3-22/BS18
part-no. 11032585
Durable pick for use in rocky soils


Note: All dimensions in mm.
Standard packaging size: 40 pcs. per bucket / 2,400 pcs. per pallet.

Accessories

Product Application
RH3-20-WK
part-no. 13010023
Pick holder which offers precise mounting to milling drum thanks to locating pins
RH3-20-W
part-no. 13010021
High service life offered by this pick holder, which is to be welded directly to the milling drum
Drifter
part-no. 13210017
Drifter for rapid and simple exchange of picks
Extractor
part-no. 13210030
Extractor for fast and easy exchange of picks
Scraper 50x40x18
part-no. 14010013
Scraper 50x51x20
part-no. 14010001


Note: All dimensions in mm.

Scraper for Milling Machines

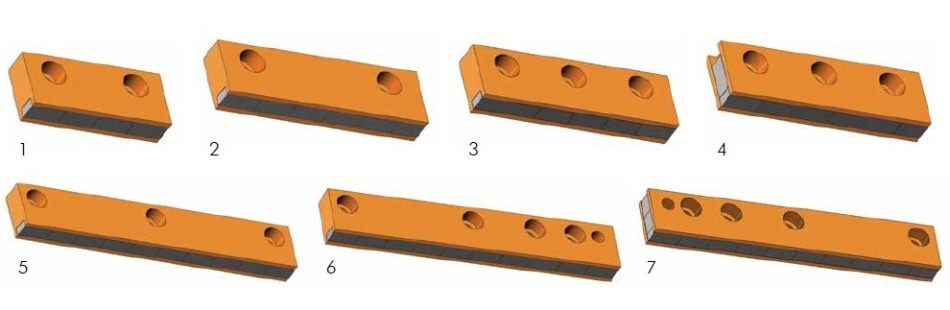

DESCRIPTION TYPE 1 L H T
1 CARBIDE SCRAPER B100 14010048 100.0 40.0 20.0
2 CARBIDE SCRAPER B145 14010049 145.0 40.0 20.0
3 CARBIDE SCRAPER B145L 14010054 145.0 40.0 20.0
4 CARBIDE SCRAPER B145R 14010055 145.0 40.0 20.0
5 CARBIDE SCRAPER B248 14010044 248.0 40.0 20.0
6 CARBIDE SCRAPER B248L 14010045 248.0 40.0 20.0
7 CARBIDE SCRAPER B248R 14010046 248.0 40.0 20.0

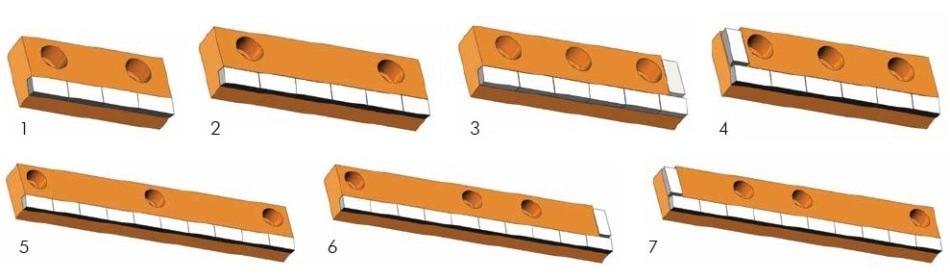

DESCRIPTION TYPE 2 L H T
1 CARBIDE SCRAPER B100 14010021 100.0 40.0 20.0
2 CARBIDE SCRAPER B145 14010028 145.0 40.0 20.0
3 CARBIDE SCRAPER B145L 14010029 145.0 40.0 20.0
4 CARBIDE SCRAPER B145R 14010030 145.0 40.0 20.0
5 CARBIDE SCRAPER B248 14010018 248.0 40.0 20.0
6 CARBIDE SCRAPER B248L 14010019 248.0 40.0 20.0
7 CARBIDE SCRAPER B248R 14010020 248.0 40.0 20.0


Note: All dimensions in mm.
