Using Absorbance Microspectroscopy to Analyze Biocrystalline Materials

UV-visible range microspectroscopy is a key technique for individual protein crystal analysis. Presently, protein crystals are used in controlled drug delivery, structural biology and drug design, and bioseparations. UV microspectroscopy is used in the study of optical properties of individual crystals and also for quality control of growing crystals.

Image Credit: Shutterstock/Maryna Olyak

Craic Technologies offers the 20/20 PV Microspectrophotometer, which helps in locating, qualifying, and analyzing biocrystalline materials in a fast, easy, and non-destructive manner.

Analysis of Biocrystalline Materials

The 20/20 PV Microspectrophotometer was configured for transmittance and fluorescence for this range of experiments. The objective used was of the 15x Schwarzchild type, as it has a very long working distance and spectral consistency across the entire UV, visible, and NIR regions. In this experiment series, four different samples were studied using absorbance microspectroscopy. Samples 1, 2, 3, and 4 comprised DNA crystals, flavoprotein crystals, Co salt crystals in solution, and DNA-protein crystals, respectively.

From each sample, 200 µl of the solution was taken and placed in a Costar 96 well plate, which exhibits good UV transmission characteristics. The location of a crystal was identified and the system was optimized using Kohler illumination. A reference was run off to the side of each crystal before obtaining the spectrum of the crystal. Thus, the spectral characteristics of the well plate, the solution, and the instrument are eliminated. The final spectrum will be of the crystal only.


The absorbance spectra of the four samples were obtained (see Figure 1). Samples 1, 2, 3, and 4 are labeled as DNA crystal, flavoprotein, salt crystal in solution, and DNA/protein crystal, respectively. All spectra except that of the salt exhibited an absorbance peak at 286 nm. The DNA crystal exhibited a very intense peak, which indicates a high optical density. Also, this was the only peak for the DNA crystal.

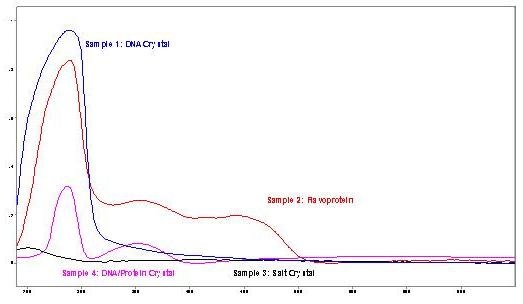

Overlay of absorbance spectra of samples 1 – 4.

Figure 1. Overlay of absorbance spectra of samples 1 – 4.

The flavoprotein exhibited shoulders at wavelengths of 354, 414, 442 and 446 nm during initial examination. However, during repeated examinations, the flavoprotein spectrum showed some change (see Figure 2). The spectrum of the DNA/protein crystal showed a peak at 352 nm.

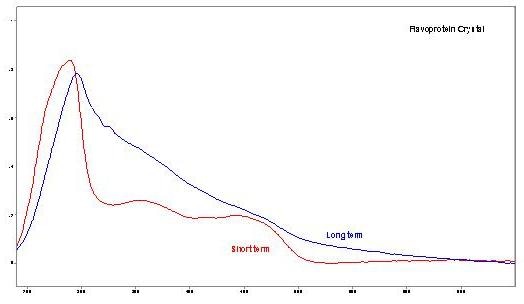

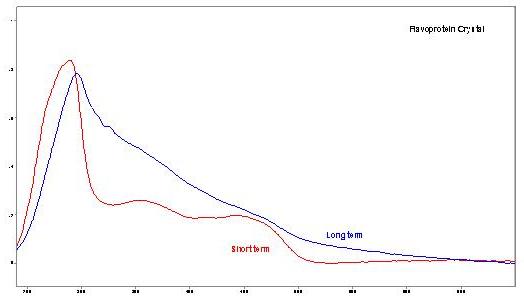

Overlay of flavoprotein crystal absorbance spectra at short and longer term exposure to oxygen.

Figure 2. Overlay of flavoprotein crystal absorbance spectra at short and longer term exposure to oxygen.

Images of each of the crystals were also obtained (see Figure 3). The black square indicates the entrance aperture of the microspectrophotometer, which was 15x15 µm.

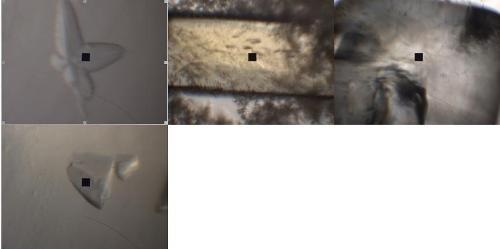

Crystal images

Figure 3. Crystal images. Clockwise from top left: the DNA crystal, the flavoprotein crystal after it had begun to dissolve, the salt crystal in solution, and the DNA/protein crystal.


UV-visible absorbance spectra of a DNA crystal, a flavoprotein crystal, a salt crystal, and a DNA/protein crystal were obtained using the 20/20 PV microspectrophotometer. All the spectra could be easily distinguished and the optical densities were also comparable. Moreover, the change in the flavoprotein spectra was also be monitored.
