Master Bond Adhesives for Display Manufacturing

Master Bond offers the display industry a broad and sophisticated range of adhesive solutions. These systems are formulated for applications requiring durable and transparent bonds. Non-yellowing, optically clear adhesives designed for electronic display components help to protect the integrity of critical display components, enhancing both aesthetic and practical functionality.

The Master Bond product line includes both one and two component epoxy resin compounds and one component UV curable compositions. The epoxy resin compounds are all specially formulated to maximize resistance to liquid water, water vapor and other adverse environments. Some of the outstanding features of the optical systems offered by Master Bond are excellent light transmission characteristics, superior non-yellowing properties along with a wide range of systems where the index of refraction ranges from a relatively low 1.43 up to 1.61. It should be noted that the ultraviolet compositions cure tack free in the presence of air. All Master Bond products have been carefully processed to exclude such potentially objectionable contaminants as chlorine and other halogens as well as sodium and related elements. They provide innovative solutions to the many processing problems of these industries and virtually eliminate quality control difficulties caused by corrosion and other environmentally induced conditions.

Master Bond Adhesives for display technologies allow for the manufacture of light and durable electronic devices.

Major Applications

Some major applications of adhesives for display technologies include:

3D Television

Master Bond systems employed for use in the manufacturing of LCD screens, a leading technology for 3d TV. Allow for thinner, large, cleaner and flatter products with outstanding optical clarity.

Smartphones

Master Bond optically clear systems provide a thin and light solution for smartphone display needs. With strong performance requirements providing durability to resist the abuse of mobility and abrasion.

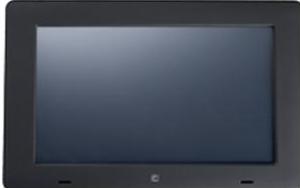

Tablet PCs

These items which combine the portability of cell phones with the sophisticated capability of a PC will surely benefit from Master Bond’s high quality solutions.

Low Outgassing Specialists

Ultra high purity and freedom from contaminants are essential requirements for adhesives and sealants used in display manufacturing. Master Bond Inc. has developed an advanced line of high purity, low outgassing epoxy resin systems to meet stringent performance requirements. These products are successfully employed in applications ranging from plasma displays to LCD’s to flat screens and monitors.

Adhesive Solutions for Tablet Computers

Tablet computers are one of the fastest growing segments in the consumer electronics industry. Unique to Tablet computers is a touch screen displays which provides a novel medium by which to interact with ones personal device. It is essential that display manufacturing companies are able to deliver damage resistant yet light weight products. Master Bond’s unique line of adhesives for display applications provide all that and more, delivering exceptional damage resistance to the scratches, drops, and bumps of everyday use in a lightweight and unobtrusive manner.

Important Performance Requirements

Master Bond display products are designed to meet specific performance requirements. Among the most important are:

  • Abrasion resistance
  • Allow for repairability
  • Chemically resistance
  • Cryogenically serviceable
  • Easily polished
  • Electrically insulative
  • Excellent adhesion
  • High temperature resistance
  • Low coefficient of expansion
  • Low outgassing
  • Low shrinkage
  • Dimensionally stability
  • Optical transmission
  • Low stress
  • Shock resistance
  • Non-yellowing
  • Resistance to water
  • Screen printable
  • Spectral transmittance
  • Spin coatable
  • Durability
  • Thermal cycling resistance
  • Shock resistance
  • Thermal conductivity
  • Vibration resistance

Custom Formulations

The many potential applications of display adhesives make for a very complex selection process; one requiring much research of all relevant considerations. It is for this reason that Master Bond Inc. offers custom formulated solutions; tailor made products possessing those properties necessary for successful adhesive employment. Regardless of the application requirements, adhesive formulations may be adjusted to possess all required characteristics. Noteworthy are systems boasting cryogenic serviceability, superior thermal conductivity, high chemical and temperature resistance, vibration, impact and shock resistance, low shrinkage and low stress properties. Special grades are NASA low outgassing approved. Master Bond optical adhesives exhibit excellent light transmission characteristics, and superior now yellowing properties. Additionally, a range of systems with a wide index of refraction indices from a relatively low 1.43 up to 1.61 are available. Processing requirements such as cure speed and viscosity may also be altered for optimal system compatibility and performance.

Master Bond Optically Clear Systems for Display Applications

Optical clarity is one of the many important properties a display industry epoxy may require. Much investment of research and development has yielded a high end line of optical adhesives, boasting optical clarity, and specially formulated for reliable performance in the potentially trying climates of electronic devices. Specially optically clear compounds offer service temperatures from as high as 600ºF (300ºC) to as low as cryogenic temperatures (4K). Spectral transmission ranges from 300 nanometers to in excess of 2000 nanometers are available. Typical optical transmission measurements in the most widely used 300-400 nanometer range are greater than 90%. In addition, these optically transmissive compounds exhibit excellent long term stability and exceptional resistance to unfavorable environment exposures including moisture.

Popular Products for the Display Industry

Some popular products for the display industry include:

  • EP29LPSP
  • SUPREME 10HT
  • UV15-7

EP29LPSP

EP29LPSP is a low viscosity, cryogenically serviceable epoxy with excellent physical properties for bonding or potting. Withstands cryogenic shocks. Superior electrical insulation properties. Optically clear.

SUPREME 10HT

SUPREME 10HT is a one part, no-mix system requiring oven curing at 250-300°F with extraordinary physical properties. High peel and tensile shear strength. Cryogenically serviceable. Resistant to vibration, thermal shock and impact.

UV15-7

UV15-7 us an excellent UV cured adhesive, sealant, and coating with a refractive index of 1.55. Exhibits spectral transmittance of over 90% in the 300 nm to 1500 nm range. 100% reactive. Contains no solvents. High bond strength to similar and dissimilar substrates.

Packaging

Master Bond Inc. offers a wide selection of different packaging solutions to best meet specific application requirements. They are designed to optimize dispensing of Master Bond compounds. Master Bond's innovative packaging solutions will maximize productivity, reduce waste and maintain consistently high product reliability. Packaging options are available for epoxies, polyurethanes, polysulfides, silicones, acrylics and UV cure systems. Additionally, special packaging is available for anaerobics, cyanoacrylates, latex systems and other resin formulations.

This information has been sourced, reviewed and adapted from materials provided by Master Bond Inc.

For more information on this source, please visit Master Bond Inc.
