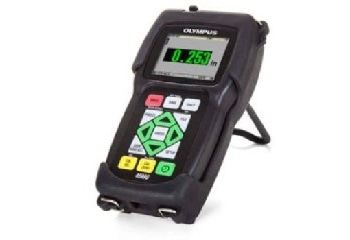

Ultrasonic Thickness Gage – 45MG from Evident

The 45MG is an innovative ultrasonic thickness gage having additional software options and standard measurement features. It needs only less training to handle most common thickness gaging applications. It is rugged and easy to operate, and consists of a GageView™ interface program, and a full-featured internal bidirectional alphanumeric data logger which is typically used for transferring and storing waveform data and thickness readings.

Coating thicknesses of nonmetallic and metals can be measured using THRU-COAT. The true metal thickness can be measured using Echo-to-Echo. It is compatible with single element Microscan transducers ranging from 2.25 MHz to 30 MHz. The ultrasound waveform can be directly displayed on the gage's display using Live A-scan mode. This mode also allows the user to verify the thickness measurement, and manually adjust blanking and gain settings in order to enhance measurement performance in challenging applications.

Key Features

The key features of the 45MG are:

  • It is compatible with dual element transducers for measuring thickness on internally corroded metals
  • Password instrument lock
  • Two Alarm modes
  • Time-based B-scan
  • Differential mode
  • Designed for IP67
  • Optional protective rubber boot with gage stand
  • Wide operating temperature range
  • USB communication port
  • Internal and removable MicroSD memory card storage
  • Color transflective QVGA display with indoor and outdoor color settings is used for providing high readability
  • Simple keypad for right hand/left hand operation
  • Password protected instrument lock
  • Easy operator interface is used for accessing most of the functions
45MG Thickness Gage Product Overview
