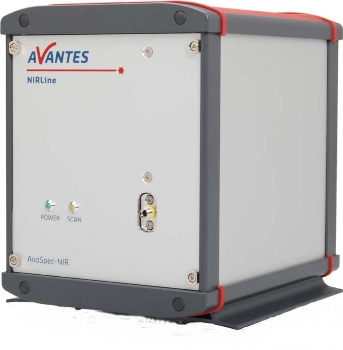

NIR Spectrometer - AvaSpec-NIR256-2.5-HSC-EVO

Avantes’ high sensitivity AvaSpec-NIR256-2.5-HSC-EVO is an NIR spectrometer that offers high sensitivity in a lightweight, compact package.

It has an NA of 0.13, which provides optimal balance between sensitivity and resolution.

The HSC is the improved version of the AvaSpec-NIR2.5TEC. The 2.x-series extended InGaAs tools consist of 256 or 512 pixel detectors. This tool is ideal for corn, grain, soya, wheat, and other analyses.

A range of gratings are offered to customize the tool for optimal performance to suit specific application needs.

The tool is provided with a replaceable slit which allows better flexibility for performing specific experiment.

Analog and digital IO ports are provided for external triggering and control of shuttered and pulsed light sources from the AvaLight series of illumination sources.

The HSC is equipped with the user selectable gain setting mode: either a low-noise (LN) standard setting for providing longer integration time and higher signal to noise ratio, or a high-sensitivity (HS) setting for measuring in lowlight conditions.

Download the brochure for more information

Key Features

  • Optical bench - TE-cooled symmetrical Czerny-Turner, 100mm focal length
  • Wavelength range - 1000-2500nm
  • User selectable gain setting mode – LN and HS
  • Analog and digital IO ports
  • Resolution - 4.8-77.0nm
  • Temperature range - 0-55°C
  • Interface - USB 2.0 high speed, 480Mbps RS-232, 115,200bps
