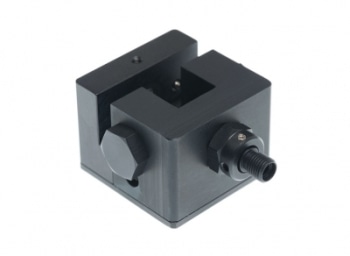

Direct Attach Cuvette Holders – CUV-DA

Avantes provides a variety of direct-attached cuvette holders to mount a cuvette holder directly to one’s light source. The CUV-DA connects to the AvaLight-DHc, -XE and -LED light sources, the CUV-DA-DHS connects to the AvaLight-DHS and AvaLight-DHS-BAL, and the CUV-DA-HAL-Mini connects to the AvaLight-HAL-Mini. These devices can be used for either fluorescence or absorbance measurements.

All CUV-DA cuvette holders have two 90-degree and one 180-degree threads that allow the COL-UV/VIS collimating lens to be connected for fluorescence or absorbance arrangements. Each of CUV-DA series cuvette holders includes two SiO2 aluminum mirrors to additionally enhance fluorescence signals. These are mounted at 90 degrees to the excitation source and emission output. The CUV-DA consists of a 5 mm wide filter slot.

For the AvaLight-HAL and the AvaLight-DHS, the direct-attached cuvette holders can be mounted straight onto the front panel of the light source by taking off the standard filter holder.

Technical Specifications

CUV-DA CUV-DA-DHS CUV-DA-HAL-Mini
Lightsource AvaLight-DHc AvaLight-LED AvaLight-XE AvaLight-DH-S AvaLight-HAL-Mini
Wavelength range 200-2500 nm
Cuvette Dimensions 10 x 10 mm (light path)
Light source connection SMA thread incl col. lens Mounting plate UNS-thread (remove COL-UV/VIS)
Fiber connection 1 x COL-UV/VIS, SMA-905 connectors
Fluorescence mirrors 2 x SiO2 coated aluminum mirrors
Filter slit Max. 5 mm wide n.a.
Dimensions 60 x 43 x 28 mm 60 x 50 x 50 mm 60 x 35 x 35 mm
