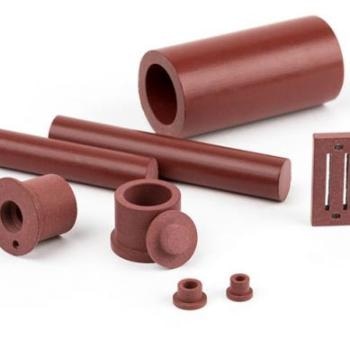

Fluoropolymer Material Solution - Rulon® LR

The Rulon® LR fluoropolymer material solution is ideal for high creep, durability, and abrasion resistance. The wear and friction control material is suitable for continuous, non-lubricated sliding, oscillating, and rotating applications. Common critical components include industrial bearings (chemical pumps); consumer bearings or wear components (high-speed blenders); and energy spring inserts (poppet valves) and slide bearings (pipelines).

. .
Material Brown fluoropolymer
Engineered ceramic filled
Service Conditions Temperature: -150 to +200 °C
Max load (dry): 7 MPa
Max Speed: 2 m/s
Feature Friction coefficient: 0.15 to 0.25
Max PV (dry/lub): 0.35 MPa.m/s
Dimension Rods and Tubes: (φ) 1.2 m x (L) 3 m
Sheets: (L,W) 610 mm x (T) 80 mm
Tapes: (W) 1 m x (T)=[0.08;6] mm



Options

The following options can be added to the product:

  • Vacuum and UHV
  • Load upgrade
  • FDA approved
  • Noise reduction
  • Abrasion-resistant
