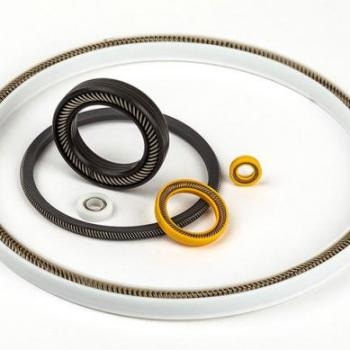

Spring-Energized Seal - OmniSeal® APS

The Ominseal® APS Spring-Energized Seal is ideal for reducing friction in dynamic application and has a small diameter and cross section.

The Seal comprises a Fluoroloy® jacket energized by a slanted coil or advanced pitch spring (APS), in which the design makes up for hardware misalignment, seal wear, and eccentricity. Common crucial components include Life Sciences seals (HPLC/UHPLC instrumentation and dental tools).

. .
Material Polymer jacket
Advance pitch spring
Service Conditions Temperature: -50 to +150 °C
Pressure: UHV to 100 MPa
Max Speed: 1 m/s
Feature Clamping load: 1 N/mm
Dimension   Face Radial
Diameter: 8 to 3000 mm 5 to 3000 mm
Cross Section: 0.8 to 6.1 mm
Min. Tolerances: +/- 20 μm



The following options can be added to the product:

  • Seal clamping
  • Extrusion resistance
  • Abrasive loose media
  • Non-metal energizer
  • Special seals design
