ELTRA’s CHS-580 analyzer for the determination of carbon, sulfur and hydrogen concentrations in organic sample materials such as fuels, oil, chemicals, soil, or cement offers unique flexibility and robustness.
The instrument is equipped with a ceramic furnace with a maximum temperature of 1,550 °C. It permits direct elemental analysis of solid or liquid samples without elaborate sample preparation. The typical analysis time is only 1 to 3 minutes.

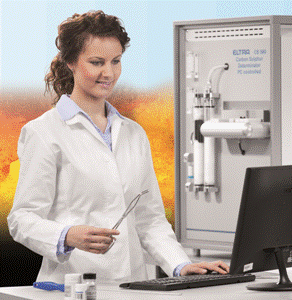

ELTRA’s CHS-580 analyzer
While conventional combustion analyzers only determine the elements carbon and sulfur, ELTRA’s CHS-580 is also suitable for measuring the hydrogen content. This is a unique advantage of the analyzer, particularly when analyzing fuels or chemicals. The standard delivery scope of the CHS-580 includes golden infrared cells, so that even more aggressive reaction gases can be processed, for example for the analysis of acidulated soils.
Flexibility is guaranteed by selecting the elements to be analyzed in any possible combination. The measuring range can be adapted to individual requirements by variation of the infrared cells. The CHS-580 provides reliable analysis results for element concentrations from the ppm range to 100%.
Benefits at a glance:
- Simultaneous analysis of carbon, sulfur and hydrogen possible
- Individual measuring ranges for C and S from the ppm range to 100 %
- Very short analysis time
- High sample weight >250 mg
- Infrared cells of massive gold
- Automated sample loading (option)
- Robust design
ELTRA is one of the world's leading manufacturers of elemental analyzers for rapid and accurate analysis at affordable prices. Starting with combustion analyzers for carbon and sulfur determination in the early 1980’s ELTRA has extended its product range over the years with analyzers for oxygen, nitrogen and hydrogen as well as thermogravimetric analyzers. Thousands of satisfied customers worldwide are proof of the quality and reliability of Eltra instruments.
