High-Resolution Spectroscopy in Plasma and Flame

This article is based on a poster originally authored by Oliver Buettel.

Geological specimens and final products are regularly analyzed for major and trace components. Analytical specimens can contain a high volume of dissolved solids. Matrix effects on analytical results commonly occur, and adjustments must be made. A skilled technician is required to correct spectral and non-spectral interference results because of complex sample composition.

Download the Poster

Application:

Cobalt Smelter QC

  • Specimens contain 1 g/L Co and ppm-concentrations of contaminants
  • ICP-OES: High resolution removes all interference. However, Co-matrix needs matrix-matched calibration.
  • HR-CS AAS: Similar performance with no need for matrix-matched calibration.
  • High resolution allows access to interfered lines (see spectra below).

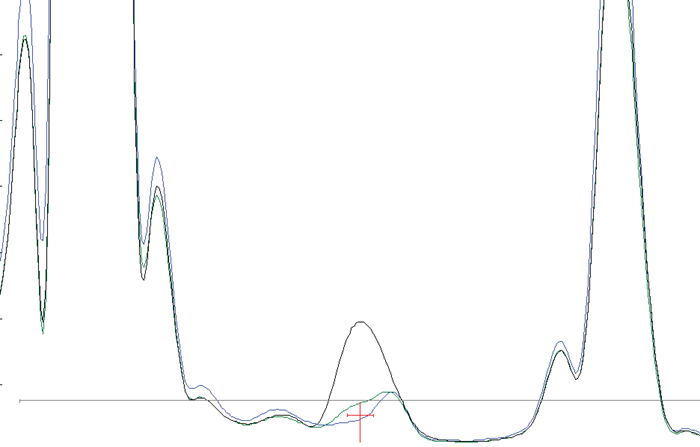

Ni 231.604nm ICP-OES spectrum, resolution 6-8pm. Severe interference from Co matrix. (Competitor).

Ni 231.604nm ICP-OES spectrum, resolution 6-8pm. Severe interference from Co matrix. (Competitor). Image Credit: Analytik Jena US

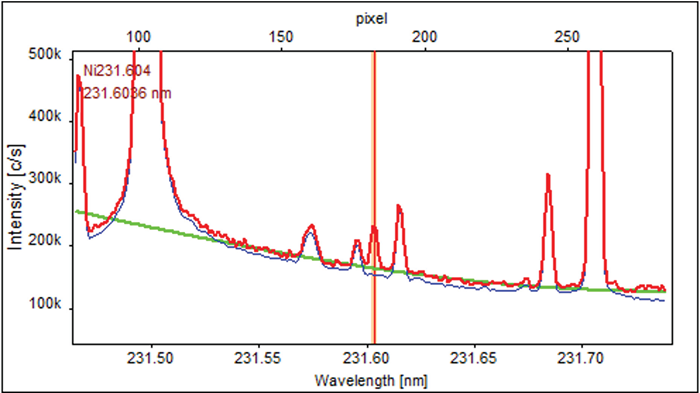

Ni 231.604nm ICP-OES spectrum, resolution 2-3pm. Interference completely resolved. Analytik Jena PQ9000 Elite

Ni 231.604nm ICP-OES spectrum, resolution 2-3pm. Interference completely resolved. Analytik Jena PQ9000 Elite. Image Credit: Analytik Jena US

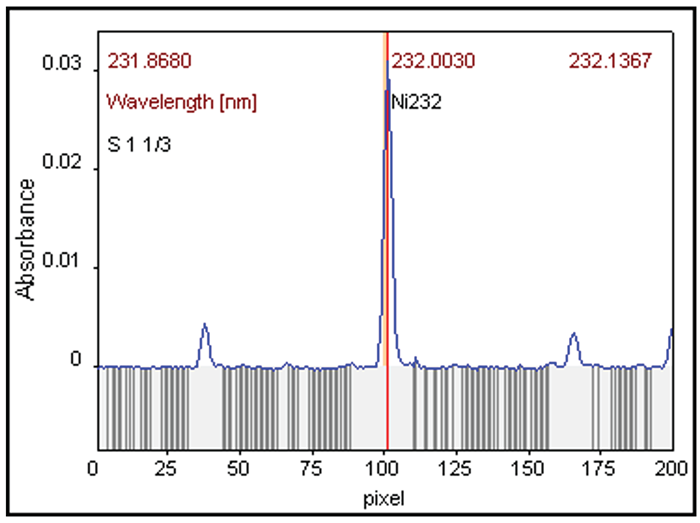

Ni 232.003nm HR-CS AAS spectrum, resolution 2-3pm. AAS spectra are less complex. Analytik Jena contrAA®.

Ni 232.003nm HR-CS AAS spectrum, resolution 2-3pm. AAS spectra are less complex. Analytik Jena contrAA®. Image Credit: Analytik Jena US

Application:

Trace Contaminants in Ultra-Pure Tungsten

  • Specimens contain 10 g/L W and 4% HF.
  • Tungsten is a line-rich element requiring high-resolution analyses.
  • A low dilution and high matrix tolerance is required to obtain the best detection limits.
  • Recovery of 97-103% for 12 elements in a certified sample was realized.
  • Higher resolution gives the advantage of using sensitive lines for most elements.
  • Detection limits of < 1 mg/kg for most elements, with all <3 mg/kg.

Mo 202.030nm ICP-OES spectrum, resolution 2-3pm. Analytik Jena PQ9000 Elite.

Mo 202.030nm ICP-OES spectrum, resolution 2-3pm. Analytik Jena PQ9000 Elite. Image Credit: Analytik Jena US

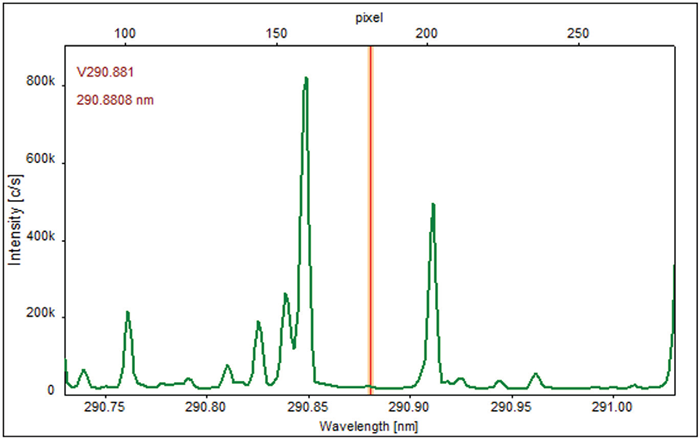

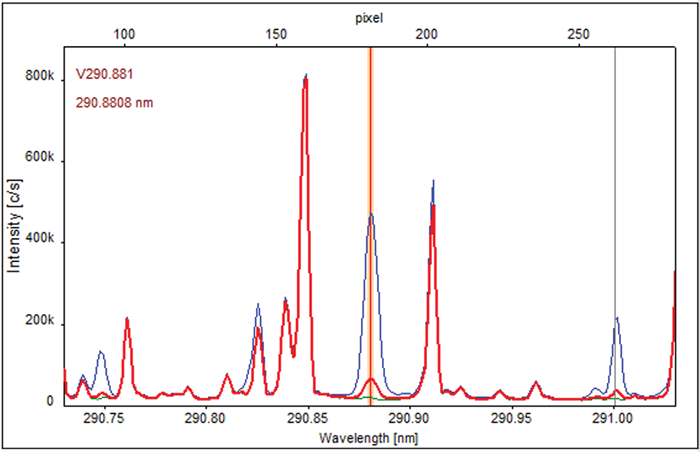

V 290.881nm ICP-OES spectrum, resolution 2-3pm. Analytik Jena PQ9000 Elite

V 290.881nm ICP-OES spectrum, resolution 2-3pm. Analytik Jena PQ9000 Elite. Image Credit: Analytik Jena US

Analytik Jena Technology

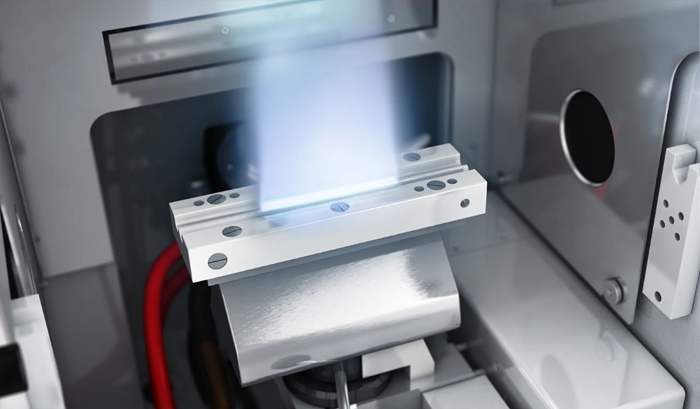

HR-CS AAS contrAA® 800

  • High-Resolution Continuum Source AAS (HR-CS AAS)
  • Offers a single light source for all elements and molecules and provides true multi-element AAS.
  • There are lower spectral and non-spectral interferences than with any other method.
  • The technology is reliable and easy, like an AAS.
  • It is as quick and adaptable as an ICP-OES Atomic Absorption.

How to Achieve High-Resolution Spectroscopy in Plasma and Flame

Image Credit: Analytik Jena US

HR Array ICP-OES PlasmaQuant® PQ9000 Elite

  • Robust, vertical plasma - best performance with extended stability and a movable alignment-free torch
  • Industry-leading detection limits and matrix handling with easy maintenance and lower consumable usage
  • Engineered for excellence, the ICP can handle the toughest samples. The plasma generator has generous power reserves to process challenging samples

How to Achieve High-Resolution Spectroscopy in Plasma and Flame

. Image Credit: Analytik Jena US

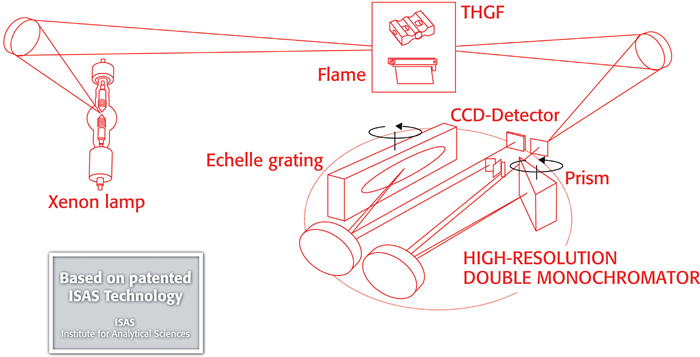

High Resolution Spectrometer with CCD Detection

  • Highest resolution in ICP-OES and AAS: 2 pm @ 200 nm
  • The contrAA® and PlasmaQuant® eliminate interference backed up by a 10-year long-term warranty and advanced background correction.
  • Engineered for excellence with Dual View PLUS, which provides reliable results without operator input.
  • It has the most comprehensive working range and easy specimen preparation.

How to Achieve High-Resolution Spectroscopy in Plasma and Flame

. Image Credit: Analytik Jena US

Conclusion

High-resolution spectroscopy eliminates the need for theorizing spectrum evaluation and corrections. PlasmaQuant® and contrAA® facilitate new applications and provide a new level of performance. The Flame HR-CS AAS is a genuine alternative to ICP-OES.

PlasmaQuant® and contrAA® provide exceptional sensitivity and a wide working range, are user-friendly and easy to maintain, and have a proven record of processing the most difficult specimens.

Download the Poster

This information has been sourced, reviewed and adapted from materials provided by Analytik Jena US.

For more information on this source, please visit Analytik Jena US.
