Optimizing Gas Analysis: Nafion-Based Humidification Technology

Maintaining gas stream humidity levels is critical in gas calibration, analysis, and calibration. Nafion-based gas humidification offers a sophisticated method for adding water vapor to gas flows, resulting in specific relative humidity (RH) levels.

Optimizing Gas Analysis: Insights into Nafion-Based Gas Humidification Technology

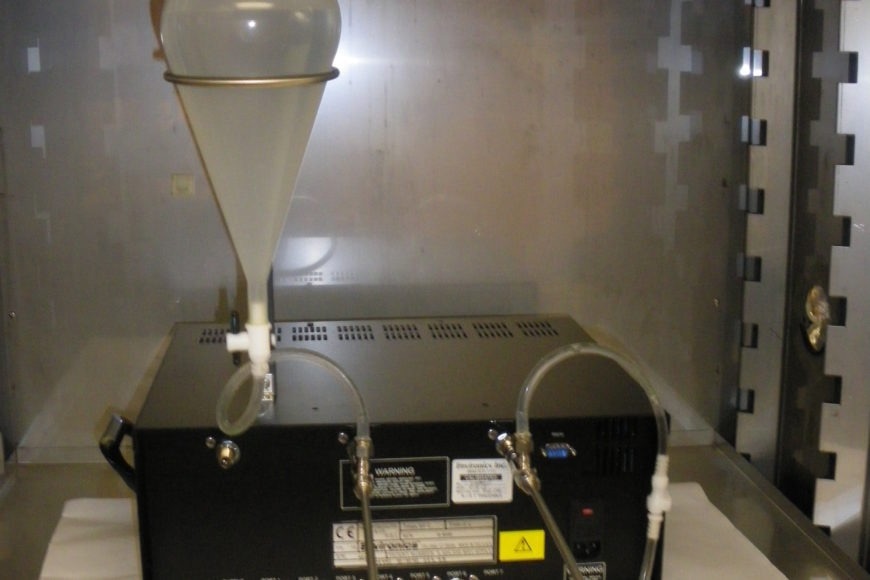

Image Credit: Environics, Inc

The calibrating points of RH lead to a varied ratio of humidified to dry. To arrive at the appropriate RH, a regulated gas flow is run through a humidifier prior to blending downstream with a calibrated dry gas stream.

Nafion-based gas humidification technology is crucial for simulating real-life environments in calibration facilities and research laboratories. It is applicable to a range of uses, spanning exhaust and emission studies and the replication of ambient conditions and human breath.

The Role of Nafion Tubing

Nafion tubing, a notable material known for its unique permeability properties, is central to Nafion-based gas humidification systems.

Nafion, a sulfonated tetrafluoroethylene-based fluoropolymer-copolymer, enables selective water vapor permeation while stopping gas molecules from traversing the membrane. In gas humidification, this selective permeability introduces water vapor (ph2o) into a dry gas sample. The RH level is achieved by running a calibrated gas flow through the humidifier and blending it with a calibrated dry gas stream.

Nafion tubing’s selective permeability allows variations in the humidified-to-dry gas ratio. This means that a range of RH points can be calibrated.

The Mechanism of Humidification

A simple yet effective mechanism is used to humidify gases using Nafion tubing.

When the incoming dry gas stream runs over or through the Nafion tubing, water molecules from a nearby reservoir are diffused through the membrane and join the gas stream. This is due to the concentration gradient between the two sides. Diffusion will continue until equilibrium is achieved when the gas stream exhibits the desired humidity level.

Applications and Advantages

Nafion-based humidification systems are useful in various fields, such as environmental monitoring, industrial gas calibration, medical research, and aerosol research.

These systems are prized for accurately replicating specific humidity conditions needed for several experimental setups and calibration standards.

Nafion also offers chemical inertness and contaminant resistance, making it an excellent choice for humidifying gases with water-soluble components. This guarantees the integrity and purity of the gas stream.

Design Considerations and Performance

The design of a Nafion-based gas humidifier is an important element that determines its effectiveness and efficiency. Factors like the Nafion tubing's gas flow rate, surface area, and desired RH levels are crucial considerations in the design process.

Optimal flow rates and larger surface areas result in higher humidification efficiency. This enables various humidity levels, usually from 5% to 95% RH. Maintaining consistent temperatures throughout the systems makes stable and repeatable RH levels achievable.

Calibration and Control

Precise humidification requires the correct design, accurate calibration, and control mechanisms. Humid gases demand this control, particularly for aerosol streams, particle streams, and calibration gases.

Nafion-based humidifiers can be calibrated in the factory to reach RH levels from 0% to 95%, resulting in precise control over humidity conditions. The calibration guarantees that the humidification system can reliably replicate environmental conditions, which is invaluable in research and calibration labs.

Enhance the Reliability of Research Through Nafion-Based Gas Humidification Tools

Nafion-based gas humidification provides a modern solution for precise and controlled gas humidification, including in applications like gas blending. Its ability to simulate various environmental conditions with high accuracy makes it indispensable in scientific calibration, research, and environmental monitoring.

Nafion tubing offers unique properties and sophisticated design and calibration techniques, guaranteed to meet the exacting demands of numerous applications. They can offer reliable and consistent results.

Investigating the advanced capabilities of Nafion-based gas humidification is crucial for those looking to improve the precision and accuracy of their gas analysis and calibration processes.

Environics is dedicated to offering innovative solutions that meet the exacting demands of scientific research and industrial applications. Its state-of-the-art gas humidification methods and water-to-gas humidifiers can greatly improve operational efficiency and accuracy.

Environics offers comprehensive gas humidification methods guides - a great place to start when exploring precision and reliability in gas analysis.

This information has been sourced, reviewed, and adapted from materials provided by Environics, Inc.

For more information on this source, please visit Environics, Inc.
