With manufacturing environments evolving toward Industry 4.0, electrical safety testing can no longer continue to operate as a standalone, manual process.
Image Credit: Vitrek, LLC
Modern production lines require seamless automation integration, traceable data, uncompromised measurement integrity, and high throughput. Hipot testing, crucial for verifying insulation strength and operator safety, must now perform as a synchronized element in fully connected manufacturing ecosystems.

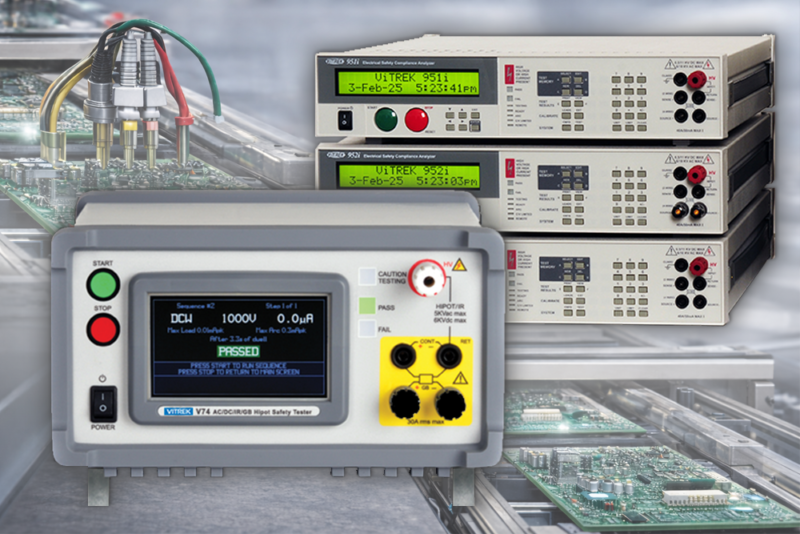

The Vitrek 95X Series Hipot Testers and Vitrek V7X Series Hipot Testers are specifically engineered for such environments. With native automation interfaces, fast execution speeds, and programmable sequencing, these platforms are transforming traditional hipot testing into an intelligent, production-line-ready process.
Automation Challenges in Electrical Safety Testing
Manufacturers making the transition to smarter production environments often face technical bottlenecks in electrical safety testing. Manual test configuration can slow line takt time and introduce variability between shifts and operators.
On top of this, limited integration between traditional hipot testers and robotic or PLC systems complicates synchronizing testing with automated production flow. These gaps are increasingly evident in high-mix manufacturing, where frequent product changeovers increase setup demands and test complexity.
Data management is another challenge. Inconsistent or incomplete data capture can create gaps during compliance reviews and quality audits, while the increased complexity of products and the higher volume of production make scaling legacy test processes harder.
Combatting these issues requires quick and fully programmable hipot testers that communicate seamlessly with automated infrastructure, while still delivering precise and repeatable measurements, which are necessary for reliability, regulatory compliance, and safety.
Programmable Sequencing for High Throughput
Both the 95X and V7X Series support fully programmable test sequences with sub-second execution capability. This enables different safety tests, such as IR, ground bond, AC hipot, and DC hipot, to be combined into one automated routine. Benefits include:
- Removal of testing as a production bottleneck
- Elimination of operator-dependent set-up variations
- Quicker overall cycle time
- Consistent execution across shifts and production lines
For high-volume lines that run more than 100 units per hour, this speed advantage directly supports throughput targets without sacrificing safety coverage.
Designed for Integration into Automated Systems
Modern production test stations need to communicate seamlessly with line control and automation systems to keep pace with today's connected factories. Vitrek’s platforms are engineered with standard automation interfaces that enable direct integration with existing production infrastructure.
RS-232 communication supports reliable control, command, and data exchange, while integrated digital I/O enables straightforward coordination with robotic handling systems and PLCs.
Additionally, interlock control and remote triggering enable the hipot tester to directly integrate with automated test sequencing and plant safety systems. Together, these capabilities enable electrical safety testing to function as a fully synchronized node in IIoT-enabled manufacturing environments, supporting real-time production monitoring, streamlined workflows, and centralized control.
Scalable Multi-Point Testing with Built-In Data Compliance
Today’s electrical assemblies are increasingly complicated, requiring similarly complex safety validation across numerous subsystems and nodes. When combined with external high-voltage scanners, Vitrek hipot testers can control as many as 256 test points, allowing for repeatable and fully automated multi-point insulation testing without requiring operator intervention or manual rewiring.
This scalable approach is ideal for advanced applications, including industrial motor drives, aerospace power distribution systems, EV power electronics, and medical electrical devices, where comprehensive repeatability and coverage are essential.
It is equally important to be able to capture and manage test data for quality assurance.
Automated result logging delivers completely traceable test parameters and outcomes, which comply with ISO 9001, IATF 16949, and AS9100 quality management standards, while observing IPC-9252 requirements for automated hipot testing systems.
Exportable data formats allow seamless integration within SPC and MES platforms, helping manufacturers close the loop between production testing and continued quality improvement.
Image Credit: Vitrek, LLC
Conclusion
Image Credit: Vitrek, LLC

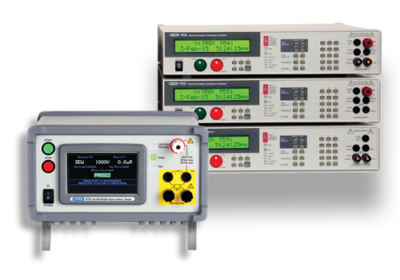

The Vitrek 95X and V7X Series transform hipot testing into a fully automated, quick, and intelligent process that aligns with Industry 4.0 goals for manufacturing.
By combining scalable multi-point capability, automation interfaces, high-speed programmable testing, and comprehensive data logging, manufacturers can increase throughput while maintaining their high safety and compliance standards.
