Liquefied natural gas (LNG) continues to play an increasingly important role in the world’s energy mix, offering a cleaner-burning fuel alternative for power generation, shipping, and industrial use.

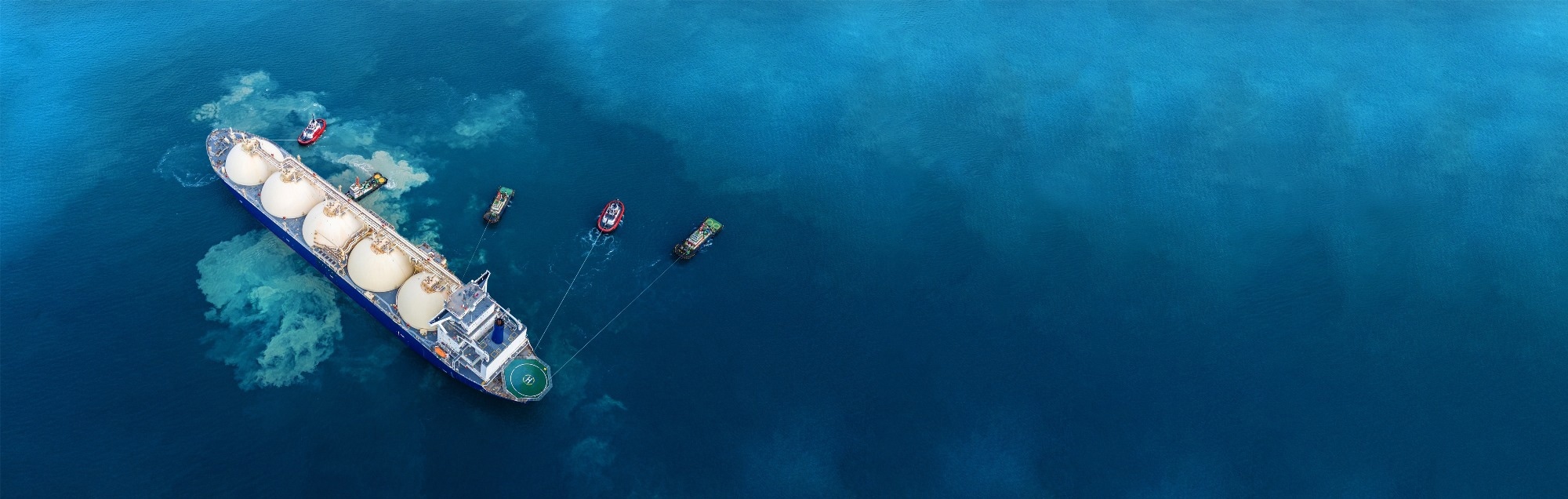

Image Credit: GreenOak/Shutterstock.com
Transporting LNG through an increasingly complex global supply chain remains a challenge: from at-sea carriers to storage terminals and regasification plants onshore, safety continues to be the main priority.
LNG is primarily a liquefied form of methane, and while it is non-toxic, it does present a number of hazards. The goal is to acquire as pure a composition of LNG as possible, but the presence of small amounts of other hydrocarbons or impurities remains a real prospect.
The liquid is extremely cold, meaning that if a spill occurs, it combines with the moisture in the air, and appears as a white vapor cloud due to rapid condensation. As it warms, the liquid gas begins to vaporize, making it invisible which underscores the need for reliable detection.
This is why gas and flame detection systems can be important safeguards across the LNG supply chain, providing operators with an early warning system that allows them to respond before a leak escalates into a larger incident.
From the Open Sea to Dockside Safety
To mitigate any risk of spillage, the design and engineering of LNG carriers include several layers of protection. Structural barriers act as key features, including double hulls, separation between ballast tanks and cargo tanks, and thick insulation to protect against leakage.
The two most common cargo tank designs (membrane tanks and spherical tanks) each hold liquid LNG with a vapor space above, and have specific points that must be monitored continuously.
Carriers are fitted with comprehensive safety systems to address these risks directly. Gas detectors are carefully positioned in places where gas could accumulate. These include compressor rooms, control rooms, and enclosed spaces with limited air circulation.
Special attention is paid to any potential leak spaces, such as the insulation area around cargo tanks. Insulation spaces on membrane ships are filled with nitrogen (an inert gas) and monitored around the clock using point detectors to identify any trace of methane.
Flame detectors introduce an additional layer of protection, as they have been developed to provide a crew with a rapid response if a leak were to ignite. Together, these early warning detection systems give crews the opportunity to take corrective action quickly.
When transporting LNG from ship to shore, detection technology continues to facilitate safe operations. Detectors ensure operational safety during loading by identifying leaks across loading arms, manifolds, and vapor recovery systems. Open-path detection technology is usually employed across dockside areas, offering long-range monitoring, particularly where point sensors alone may not be sufficient.
Safeguarding LNG at Terminals and Regasification Plants
When storing LNG in tanks or processing at regasification facilities, new risks arise. Continuous monitoring in vaporizers, high-pressure pumps, and pipelines means leaks can be identified early.
To reduce the risk of methane accumulation, detectors are strategically placed in processing areas and equipment rooms, while integration with emergency shutdown (ESD) systems offers an additional layer of protection.
At large facilities, the configuration of detection zones usually follows voting logic, meaning that alarms from more than one detector must be activated before automatic actions are triggered, such as isolation, ventilation, or system shutdown.
This approach minimizes the chance of false trips while still offering a strong safety net when a genuine leak is detected. Layered protection strategies like these have been designed to help significantly reduce the impact of an incident while facilitating operational continuity.
Terminals encounter certain challenges with open, outdoor environments. As well as accounting for large physical structures, atmospheric conditions such as wind and other weather events must also be considered, as they can seriously influence gas dispersion.
Gas mapping throughout the design phase can help identify the most effective locations for detector placement, ensuring reliable coverage across intricate facility layouts.
Detection Designed for LNG Environments
Design and performance can vary from one detector to another. LNG operations benefit from devices that can endure extreme temperatures, marine conditions, and complex environments.
Infrared and catalytic detection technologies can work together to offer broader coverage, and multi-spectrum flame detectors have been developed to reduce false alarms caused by sunlight or reflective surfaces.
Besides performance, ease of maintenance is just as important. Remote monitoring capabilities and notification systems through cloud connectivity and Bluetooth® communication (with the right safety approvals) are being used on an increasing basis to access information from detectors at a distance.
This means personnel are not required to enter hazardous zones and put themselves at risk. Long-life sensors with self-calibration capabilities can also help reduce maintenance requirements and, over time, save costs.
A Continuous Safety Net
Having gas and flame detection systems in place from the moment LNG leaves a carrier until it is delivered safely as gas into the energy grid acts as the critical first layer of defense.
Real-time data shared across networked systems connects shipboard safety with shore-based monitoring, which facilitates consistent coverage across the supply chain. Remote monitoring and predictive diagnostics allow operators to maintain control and readiness while reducing maintenance downtime.
Looking to the future, digital integration is considered equally important as physical safety hardware. Sophisticated detectors can directly feed into distributed control systems (DCS), safety instrumented systems (SIS), and cloud platforms. This gives operators the chance to respond to hazards early, analyze trends, assess risks, and plan proactive maintenance.
Keeping LNG safe requires vigilance at every stage of shipping and processing. Gas and flame detection supports that culture from ship to shore.
