FT-IR Microscopy - A Powerful Chemical Imaging Tool

FT-IR microscopy is a well-established method for the chemical identification of particles or contaminants and for visualizing the distribution of certain substances in complex compounds. Due to the usage of modern focal plane array detectors, this technology has advanced to a new imaging technique during the last few years. It allows for the measurement of even large sample areas with a very high lateral resolution within a few minutes.

FT-IR as an Imaging System

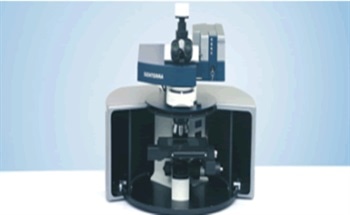

After the measurement, the results are evaluated on the basis of easily comprehensible images. For more than twenty year, even very small samples have been analyzed using  Fourier transform infrared (FT-IR) spectroscopy. For this purpose, microscopes having mirror optics have been developed that allow not just a visual viewing but also for infrared spectroscopic analysis of a sample. Recently, FT-IR microscopes equipped with focal plane array (FPA) detectors consisting of a matrix of 16 x 16 up to 128 x 128 detector elements have been deployed. This new array detector allows the user to acquire up to 16,000 pixels/spectra simultaneously and has therefore enabled the FT-IR microscopy to become also an imaging technique.

Spatial Resolution

For FT-IR microscopy just as in other types of optical microscopy, the lateral resolution is limited by the light diffraction. The smallest distance (δ) at which two points of a sample can still be separated is described by the following formula:

δ = 0,61 λ / NA,

with NA being the numerical aperture of the objective and λ being the wavelength of the light.

Since the numerical aperture of the mirror objectives in FT-IR microscopes is about 0.6, the above formula can be reduced as follows:

Distance δ = Wavelength λ.

Figure 1 shows the visible image of a sample which consists of a regular pattern of metal strips on glass.

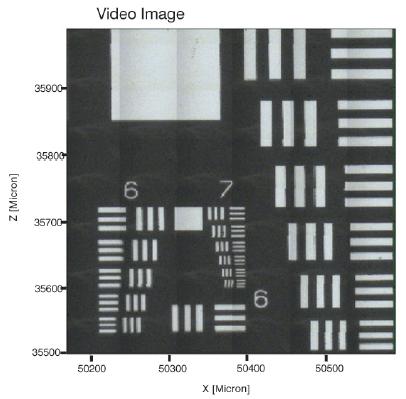

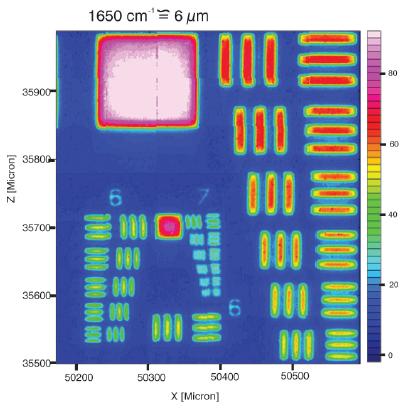

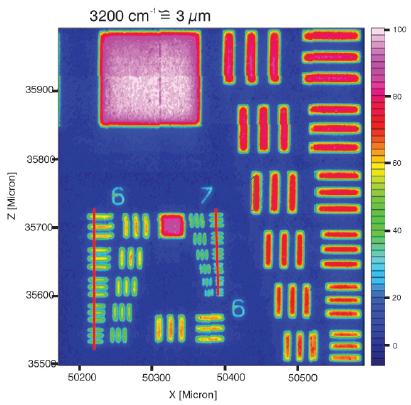

Pattern of metal strips on glass. The upper a) image is a video image of the sample. The video image covers a sample area of about 400 x 500μm. This sample area has been measured in the reflectance mode with a pixel resolution of 1,1 μm using the FT-IR imaging system Bruker HYPERION 3000 equipped with a FPA detector (64 x 64 detector elements) and a 36x objective (NA=0.5). In b the IR image at 1650cm -1 (≅ 6 μm wavelength) is shown, in c the IR image at 3200cm-1 (≅ 3 μm wavelength), respectively.

a)

Pattern of metal strips on glass. The upper a) image is a video image of the sample. The video image covers a sample area of about 400 x 500μm. This sample area has been measured in the reflectance mode with a pixel resolution of 1,1 μm using the FT-IR imaging system Bruker HYPERION 3000 equipped with a FPA detector (64 x 64 detector elements) and a 36x objective (NA=0.5). In b the IR image at 1650cm -1 (≅ 6 μm wavelength) is shown, in c the IR image at 3200cm-1 (≅ 3 μm wavelength), respectively.

b)

Pattern of metal strips on glass. The upper a) image is a video image of the sample. The video image covers a sample area of about 400 x 500μm. This sample area has been measured in the reflectance mode with a pixel resolution of 1,1 μm using the FT-IR imaging system Bruker HYPERION 3000 equipped with a FPA detector (64 x 64 detector elements) and a 36x objective (NA=0.5). In b the IR image at 1650cm -1 (≅ 6 μm wavelength) is shown, in c the IR image at 3200cm-1 (≅ 3 μm wavelength), respectively.

c)

Figure 1. Pattern of metal strips on glass. The upper a) image is a video image of the sample. The video image covers a sample area of about 400 x 500μm. This sample area has been measured in the reflectance mode with a pixel resolution of 1,1 μm using the FT-IR imaging system Bruker HYPERION 3000 equipped with a FPA detector (64 x 64 detector elements) and a 36x objective (NA=0.5). In b the IR image at 1650cm -1 (≅ 6 μm wavelength) is shown, in c the IR image at 3200cm-1 (≅ 3 μm wavelength), respectively.

The strips are arranged in groups of parallel oriented strips of different sizes and separated by different wide gaps. The sample area of about 400 x 500μm as shown in figure 1 has been measured in transmittance mode with a pixel resolution, which is the size of the sampling area which is imaged on one detector pixel of 1.1 μm using the FT-IR imaging technique. The intensity of the spectra at the wavelengths of 1650cm-1 (≅ 6 μm; fig 1b) and 3200cm-1 (≅ 3 μm; fig 1c) are displayed in false color.The two false color images show that the rectangular form of the metal strips is made sharper and that the groups of the smaller strips are resolved better at a wavelength of 3 μm than at a wavelength of 6 μm. This result shows that the lateral resolution of a well designed FT-IR imaging system is only restricted by the light diffraction.

This fact becomes more obvious when you have a closer look at the cut along the red lines in group 6 and 7 marked in Figure 1c. The strips in group 6 separated by 14 to 8 μm are well-resolved at either wavelengths, 3 μm and 6 μm as shown in Figure 2. However if the strip pattern and the gaps between the individual strips become smaller, as in group 7, the lateral resolution achieved at a wavelength of 3 μm is much better than at a wavelength of 6 μm. According to the theoretical expectations, it was found that structures can be resolved up to 6 μm at a wavelength of 6 μm. And in case of a wavelength of 3μm, the resolution limit was shown to be about 3μm.

This high spatial resolution has been achieved because the used pixel resolution, which is equal to the edge length of each detector element of 1,1 μm is considerably higher than the structures to be resolved, i.e. all strips and gaps have been imaged on several pixels and not on only one single pixel as shown in Figure 2.

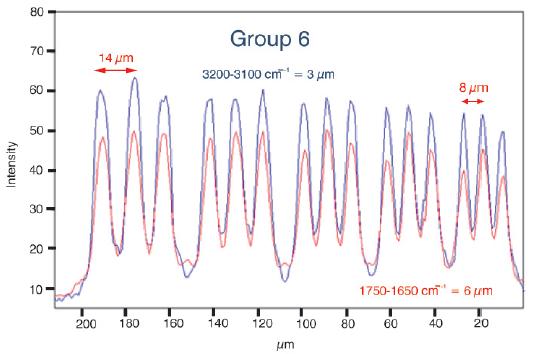

Resolution profile. This figure shows a cut through group 6 and 7 according to the red lines drawn in figure 1c. The blue trace corresponds to the profile at 3200 cm-1 and the red trace corresponds to the profile at 1650 cm-1.

Resolution profile. This figure shows a cut through group 6 and 7 according to the red lines drawn in figure 1c. The blue trace corresponds to the profile at 3200 cm-1 and the red trace corresponds to the profile at 1650 cm-1.

Figure 2. Resolution profile. This figure shows a cut through group 6 and 7 according to the red lines drawn in figure 1c. The blue trace corresponds to the profile at 3200 cm-1 and the red trace corresponds to the profile at 1650 cm-1.

IR Analysis of a Wheat Stem

The study of animal and vegetable tissues is also a standard application for FT-IR imaging. Figure 3 and 4 show the resulting data for a wheat stem tissue. The main biochemical components such as proteins, carbohydrates and waxes/lipids can be detected by their characteristic absorption. The IR images in Figure 4 show the distribution of these components within the tissue. This information can also be combined into a RGB image as shown in Figure 3 proving the distribution of proteins (green), carbohydrates (red) and waxes/lipids (blue) in parallel.

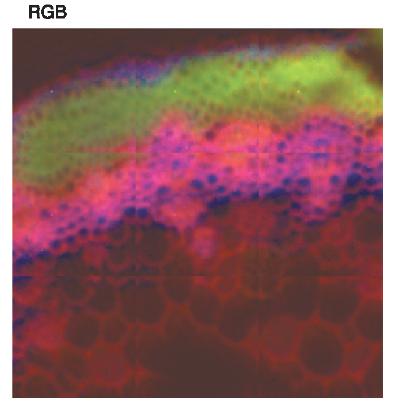

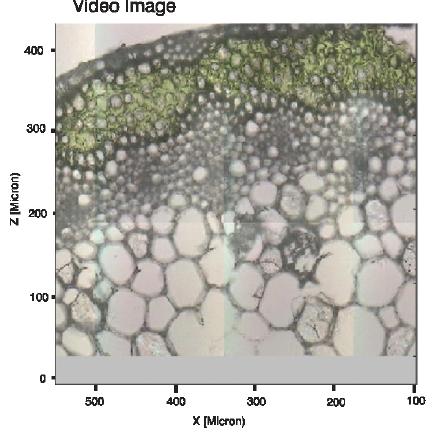

Wheat Stem. In a the video image of a wheat stem (microtome section; thickness of 10 μm) is shown . The video image covers a sample area of about 500 x 500 μm. The RGB image (b) shows the combined distribution of the proteins (green), carbohydrates (red) and the waxes/lipids (blue).

a)

Wheat Stem. In a the video image of a wheat stem (microtome section; thickness of 10 μm) is shown . The video image covers a sample area of about 500 x 500 μm. The RGB image (b) shows the combined distribution of the proteins (green), carbohydrates (red) and the waxes/lipids (blue).

b)

Figure 3. Wheat Stem. In a the video image of a wheat stem (microtome section; thickness of 10 μm) is shown . The video image covers a sample area of about 500 x 500 μm. The RGB image (b) shows the combined distribution of the proteins (green), carbohydrates (red) and the waxes/lipids (blue).

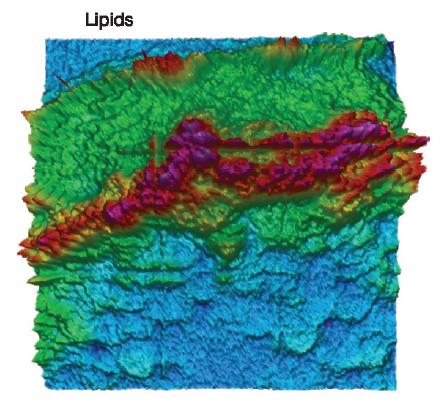

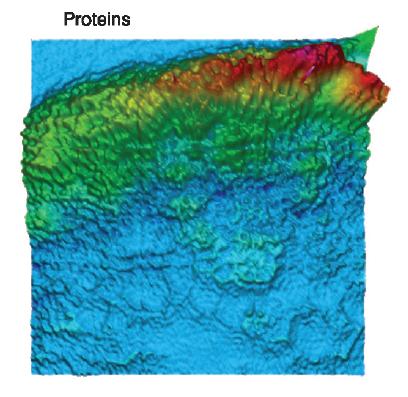

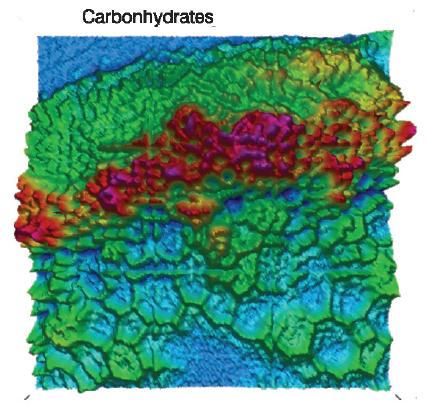

Wheat stem sample (see figure 3) area has been measured in transmittance with a pixel resolution of 2.7 μm using the FT-IR imaging system BRUKER HYPERION 3000 equipped with a FPA detector (64 x 64 detector elements) and a 15x objective (NA=0.4). The individual IR images show the distribution of proteins (1710 - 1480cm-1, a), carbohydrates (1140 – 900 cm-1, b) and waxes/lipids (1770 – 1700 cm-1, c) within the tissue. The distribution of these components has been visualized by evaluating the intensity of the characteristic vibrations of each of these three biochemical components.

a)

Wheat stem sample (see figure 3) area has been measured in transmittance with a pixel resolution of 2.7 μm using the FT-IR imaging system BRUKER HYPERION 3000 equipped with a FPA detector (64 x 64 detector elements) and a 15x objective (NA=0.4). The individual IR images show the distribution of proteins (1710 - 1480cm-1, a), carbohydrates (1140 – 900 cm-1, b) and waxes/lipids (1770 – 1700 cm-1, c) within the tissue. The distribution of these components has been visualized by evaluating the intensity of the characteristic vibrations of each of these three biochemical components.

b)

Wheat stem sample (see figure 3) area has been measured in transmittance with a pixel resolution of 2.7 μm using the FT-IR imaging system BRUKER HYPERION 3000 equipped with a FPA detector (64 x 64 detector elements) and a 15x objective (NA=0.4). The individual IR images show the distribution of proteins (1710 - 1480cm-1, a), carbohydrates (1140 – 900 cm-1, b) and waxes/lipids (1770 – 1700 cm-1, c) within the tissue. The distribution of these components has been visualized by evaluating the intensity of the characteristic vibrations of each of these three biochemical components.

c)

Figure 4. Wheat stem sample (see figure 3) area has been measured in transmittance with a pixel resolution of 2.7 μm using the FT-IR imaging system BRUKER HYPERION 3000 equipped with a FPA detector (64 x 64 detector elements) and a 15x objective (NA=0.4). The individual IR images show the distribution of proteins (1710 - 1480cm-1, a), carbohydrates (1140 – 900 cm-1, b) and waxes/lipids (1770 – 1700 cm-1, c) within the tissue. The distribution of these components has been visualized by evaluating the intensity of the characteristic vibrations of each of these three biochemical components.

Applications

FT-IR microscopy can be used for a broad range of applications. Typical applications are the chemical identification of particles and smallest contaminations, the examination of the homogeneity of coatings and the analysis of the distribution of a multitude of different components in a complex mixture. An important benefit of this technique is that it can be used to analyze nearly all kinds of samples. Moreover, it is a non-invasive method that does not require staining or labeling of the sample under examination. The molecules are identified on the basis of their characteristic vibrations which they are excited by the impinging IR beam. In this way, FT-IR imaging delivers information about the molecular composition of the analyzed sample area. Hence this image technique is also called ‘chemical imaging’.
