RAMANtouch Rethinks Confocal Raman Imaging

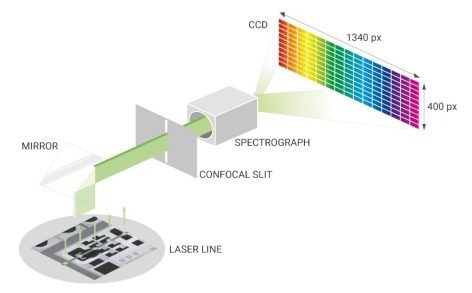

The key to Nanophoton's advanced technology employs is a line-shaped laser illumination combined with a two-dimensional CCD sensor to simultaneously capture 400 spectral data points in a single exposure. By utilizing galvanometer-based laser scanning, the RAMANtouch delivers high-speed, high-precision Raman imaging, efficiently mapping hundreds of thousands of pixels within minutes—all without relying on an EMCCD.

https://youtu.be/HerCE8T0n7k

This video shows the unique galvanoscanner of RAMANtouch in action.

RAMANtouch Key Features:

  • Ultra High-Speed Imaging
    Achieves rapid Raman imaging without compromising spectral quality or spatial resolution.​

  • High Spectral and Spatial Resolution
    Ensures detailed and accurate analysis of samples.
  • Automated Hardware
    Features auto-calibration and auto-alignment for user-friendly operation.
  • Advanced 2D/3D Analysis
    Provides powerful tools for comprehensive Raman image analysis.​

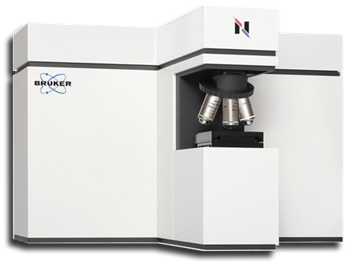

RAMANtouch microscope with laser class 1 safety housing. Image Credit: Bruker Optics

Laser Scanning via Galvanometers:

The RAMANtouch utilizes a galvanometric mirror for laser beam scanning, allowing the laser to move freely under the objective lens without shifting the sample stage. This method offers superior precision and speed compared to traditional table scanning. The perpendicular incidence of the laser beam across the observation plane enables specialized measurement modes:

  • Laser Line Scanning
    Scans the sample surface with high spectral and spatial resolution efficiently
  • Point Scanning
    Generates quick overview images by targeting areas with distinct Raman spectra.​
  • AreaFlash Measurement
    "Flashes" the Raman laser line across the field of view to create an average spectrum of the entire area, facilitating ultra-fast measurements of large regions.

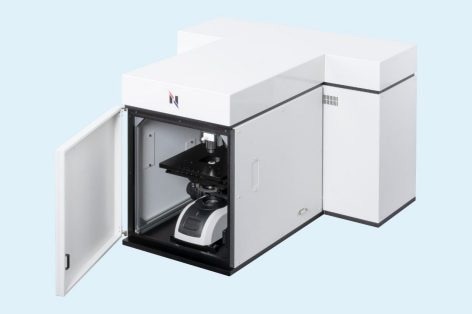

RAMANtouch - A High-End Confocal Raman Microscope

Image Credit: Bruker Optics

Laser Line Mode

  • No emCCD required
  • Ultra-fast Raman imaging by line illumination
  • Homogeneous and deformation-free laser line over the entire field of view

https://youtu.be/CNDGDD3WPIE

Demonstration of Laser Line Mode for Raman Imaging. Video Credit: Bruker Optics

Laser Point Mode

  • Up to 10 nm positioning accuracy
  • Perfect focus spot, even at the edge of the field-of-view
  • Hundreds of times faster than motorized stage
Demonstration of Laser Point Mode for Raman Imaging | Raman Microscopy | RAMANtouch RAMANwalk

Demonstration of Laser Point Mode for Raman Imaging. Video Credit: Bruker Optics

Exceptional 3D Raman Imaging Capabilities

The confocal optics of the RAMANtouch allow non-destructive analysis within samples. Using line illumination and a high-precision stage, it rapidly produces 3D Raman images of transparent samples, offering insights into internal structures and component distribution. For example, it can detect inside transparent fibers, such as bi-component PE (cladding) and PET (core) fibers, with acquisition times between 20 to 30 minutes.



Demonstration of 3D Raman Imaging | Raman Microscopy | RAMANtouch

3D Raman Image of two fibers. Video Credit: Bruker Optics



Raman Imaging Applications

Battery Research and Manufacturing

Raman is used in battery research and industry to evaluate electrode stability and binder efficacy, which helps with performance and optimization.

Silicon and Semiconductors

Raman helps with performance improvement, fabrication optimization, and defect detection in silicon-semiconductor materials, guaranteeing effective device operation.

Life Science

In life science, Raman helps with disease diagnosis, biomolecule research, cellular process comprehension, and biological sample structural analysis.

Pharmaceuticals

Raman microscopy is used in the pharmaceutical industry to analyze ingredient distribution, monitor formulations, and assess product quality.

Minerals and Inorganics

Raman spectroscopy enables the analysis of crystal structure, phase identification, composition, and defects in inorganic materials and minerals.

Nano Carbon Materials

Raman microscopy plays a key role in nano-carbon research and industry, enabling the analysis of graphene quality in CVD production and the characterization of carbon nanotubes for optimizing electronic applications.

Polymers and Plastics

In polymer and resin research and industry, Raman spectroscopy is used for material analysis and characterization, including evaluating the cure degree and resin distribution.

Food and Beverages

Raman spectroscopy is widely used in food science for quality control, contaminant detection, nutrient analysis, and studying food composition.

RAMANtouch Specifications

Source: Bruker Optics

. .
Spatial Resolution 350 nm in X, 500 nm in Y; 1 µm in Z
Objective Lenses 5x, 10x, 20x, 50x, 100x
Spectral Resolution <0.9 cm-1 (depends on grating, up to 3 gratings available)
Stage Details 30 * 30 * 35 mm XYZ-motorized stage
Calibration Auto-calibration based on standard lamp and sample
Alignment Auto-alignment of optical path
Laser Safety Laser safety class I door with interlock
