Superconductors - An Introduction

Background

The initial discovery of superconductive materials was made in 1911. Before 1986, the critical temperatures for all known superconductors did not exceed 23 Kelvin (23K or –418°F; 0K is absolute zero or -459°F). Before the discovery and development of HTS materials, the use of superconductivity had not been practical for widespread commercial applications, except for magnetic resonance imaging (“MRI”) and superconducting magnetic energy storage (“SMES”) applications, principally because commercially available superconductors (i.e. LTS materials) are made superconductive only when these materials are cooled to near 0K. Although it is technologically possible to cool LTS materials to a temperature at which they become superconductive, broad commercialisation of LTS materials has been inhibited by the high cost associated with the cooling process. For example, liquid helium, which can be used to cool materials to about 4K (-452°F), and which has been commonly used to cool LTS materials, is expensive and relatively costly to maintain.

In 1986, a breakthrough in superconductivity occurred when two scientists, Dr. K. Alex Muller, who is currently under contract as a consultant to ASC, and Dr. J. Georg Bednorz, at an IBM laboratory in Zurich, Switzerland, identified a ceramic oxide compound which was shown to be superconductive at 36K (-395°F). This discovery earned them a Nobel Prize for Physics in 1987, which is one of four Nobel Prizes that have been awarded for work on superconductivity. A series of related ceramic oxide compounds which have higher critical temperatures were subsequently discovered, including those being used by American Superconductor.

What is Superconductivity?

Zero Resistance

Superconductors lose all resistance to the flow of direct electrical current and nearly all resistance to the flow of alternating current when cooled below a critical temperature, which is different for each superconducting material.

Perfect Conductor of Electricity

A superconductor is a perfect conductor of electricity; it carries direct current with 100% efficiency because no energy is dissipated by resistive heating. Once induced in a superconducting loop, direct current can flow undiminished forever. Superconductors also conduct alternating current, but with some slight dissipation of energy.

Critical Temperature

Superconducting materials known today, including both high temperature superconductor (“HTS”) and low temperature superconductor (“LTS”) materials, need to be cooled to cryogenic temperatures in order to exhibit the property of superconductivity.

HTS vs LTS

The differences between high and low temperature superconductors can best be explained using the figure 1. This graph illustrates the complete loss of resistance to the flow of electricity through wires of an LTS material (niobium-titanium alloy) and an HTS material (bismuth-based, copper oxide ceramic) at the critical temperature Tc which is different for each superconducting material. The specific HTS material in this chart has no electrical resistance below 108K (-265°F) as opposed to the specific LTS material in this chart, which has no electrical resistance below 10K (-441°F).

Figure 1. The differences in behaviour between LTS and HTS materials.

Conditions Required for a Material to Exhibit Superconducting Behaviour

        The material must be cooled below a characteristic temperature, known as its superconducting transition or critical temperature (Tc).

        The current passing through a given cross-section of the material must be below a characteristic level known as the critical current density (Jc).

        The magnetic field to which the material is exposed must be below a characteristic value known as the critical magnetic field (Hc).

These conditions are interdependent, and define the environmental operating conditions for the superconductor.

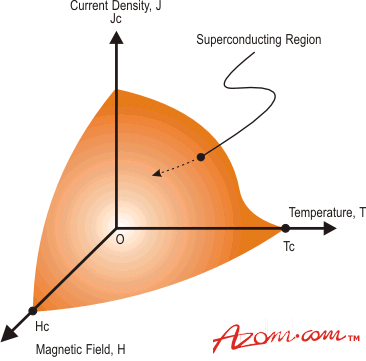

Figure 2. The conditions required for a material to exhibit superconductivity.

Advantages of Superconducting Wire

Superconducting wires provide significant advantages over conventional copper wires because they

        Conduct electricity with little or no resistance and associated energy loss

        Can transmit much larger amounts of electricity than conventional wires of the same size

Source: American Superconductor

For more information on this source please visit American Superconductor.
