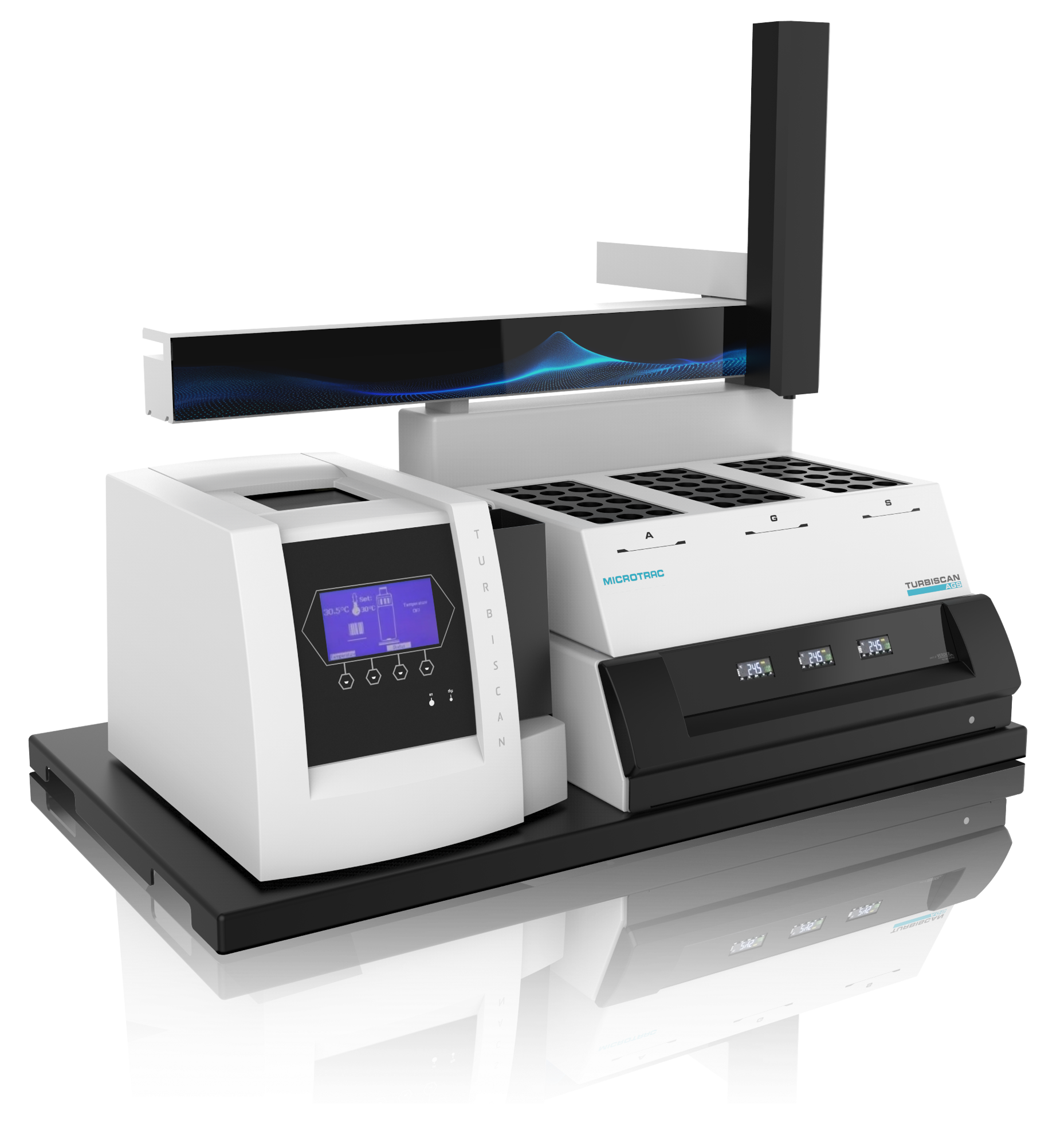

High-Throughput Colloid Stability Analyzer - Turbiscan AGS

In an effort to shorten the formulation time-to-market, researchers are increasingly interested in conducting high throughput screening processes, such as that which is achieved through the use of the Turbiscan AGS high-throughput stability analyzer.

The Turbiscan AGS integrates multiple modules including the Turbiscan LAB stability analyzer, a robot, a storage station and smart software that allows for autonomous sample handling and reporting processes to be achieved. Through the use of this tool, automated management of aging tests can occur from sample storage at different temperatures to shelf-life analysis.

Product Features

Automated Aging Station

Up to 54 Samples, stored in 3 independent racks at a specific temperature, are transported to the instrument through the use of an automated robotic arm. Once samples are analyzed, results are automatically reported without requiring any user intervention.

Measurement of Stability & Size

  • Quantitative monitoring of dispersion stability
  • Shelf life and long-term stability analysis
  • Migration velocity
  • Aggregation and agglomeration kinetics
  • Mean diameter
  • Dispersibility ratio
  • Volume fraction

End-User Stability Conditions

Stability analysis is conducted in relation to the real use and storage conditions of the formulation. All provided information represents true stability; therefore, no mechanical stress or dilution are required for analysis.

Turbiscan Stability Index (TSI) Scale

Quantifying sample stability allows Turbiscan to provides a single value that now can evaluate and rank samples with just a single number. To quickly assess and compare formulation stability, independently of occurring phenomena the Turbiscan Stability Index is used along with a guidance scale to make decision rapidly.

Technical Features

Technology S-MLS 880 nm
Sample Cell Volume 20 mL
Temperature range RT - 60 °C (3 racks)
*90 °C on demand
Number of Samples 54
Maximum sample conc. 95% v/v
Measured size range 10 nm - 1 mm
Reproducibility / Repeatability 0.1 % / 0.05%
Acquisition scan step 40 µm
Automatic samples recognition (bar-code) Yes
ISO Certification TR 13097 Compliant
Dimensions 145 x 75 x 85 cm
Weight 50 kg
