High-End Adsorption With the BELSORP MAX X

The latest model available in the BELSORP MAX series is the Microtrac MRB BELSORP MAX X. It features a very compact design and low weight.

This high-accuracy gas or vapor adsorption analyzer has the potential to quantify up to four samples over an extensive range of temperatures and pressures. BELSORP MAX X is suitable for measuring the pore size distribution, specific surface area, vapor, and gas adsorption to chemisorption.

We reveal the new BELSORP MAX X!

Video Credit: Microtrac MRB

The analyzer minimizes gas leakage and enables ultimate vacuum levels thanks to the combination of high-precision pressure transducers (133.3 kPa, 1.333 kPa, and 0.0133 kPa) with hard-sealing pneumatic valves and metal gaskets.

The temperature in the BELSORP MAX X can be controlled via state-of-the-art technology, from the heated manifold block (50 °C, optional 80 °C) and air bath to the sample, while electropolished gas/vapor lines prevent surface wetting and corrosion.

The new BELCONTROL operation software helps to understand the durability and structure of materials through cyclical stability analysis, sends measurement results via e-mail, and improves measurement and maintenance efficiency – all resulting in maxXimized sample throughput.

BELMASTER is a dedicated analysis software for enhanced material evaluations. It complies with ISO 9277, 15901-2, and 18852 and can be utilized for several material morphologies, like pellets, molded bodies, and fine powders.

State-of-the-Art Technology in the Smallest Space

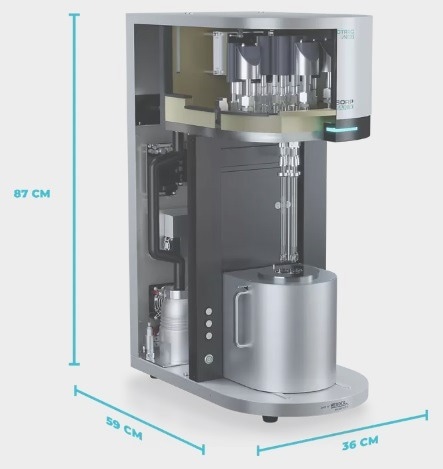

High-End Adsorption with the Belsorp MAX X

Image Credit: Microtrac MRB

MaxXimize laboratory space by reducing the footprint by nearly 50% compared to alternative products.

Easy Data Management and More Quality Insights

AFSMTM: Highest Reproducibility Available on Any Adsorption Instrument

Instead of trying to regulate the approximate level of liquid coolant, the innovative method of continuously tracking free space variations in a reference cell — Advanced Free Space Measurement (AFSMTM) — offers greater measurement precision. It compensates for free space fluctuations resulting from environmental factors such as:

  • Variations in temperature and pressure in the air
  • Changes in LN2 level
  • Changes in coolant temperature as a result of the dissolution of oxygen

Vapor Adsorption Option

Within the BELSORP MAX X, all gas lines, gauges, etc., have been installed in a thermostatic air chamber (50 °C) covered with thermally insulating material.

The fully temperature-controlled instrument stops vapor condensation effects and enables a variety of vapor adsorption measurements. It allows measurements with organic vapors ranging up to 40 °C (standard instrument; HT model up to 70 °C). The evaluation of hydrophilicity or hydrophobicity and the measurement of VOC adsorption capacity are further possible applications.

Simultaneous Measurement of up to Four Samples

The BELSORP MAX X has four separate ports and one dedicated port for measuring saturated vapor pressure. Three of the ports can be fitted with unique pressure transducers (0.0133 kPa, 1.33 kPa, 133.3 kPa), allowing for independent and simultaneous micropore analyses across a broad spectrum.

Two measurement modes can be selected depending on the application in question. The Multi-sample Mode and the High-Precision Mode are both available for measurements starting at lowest relative pressure P/P0 = ~10-9.
