Designing a Leachables and Extractables Study

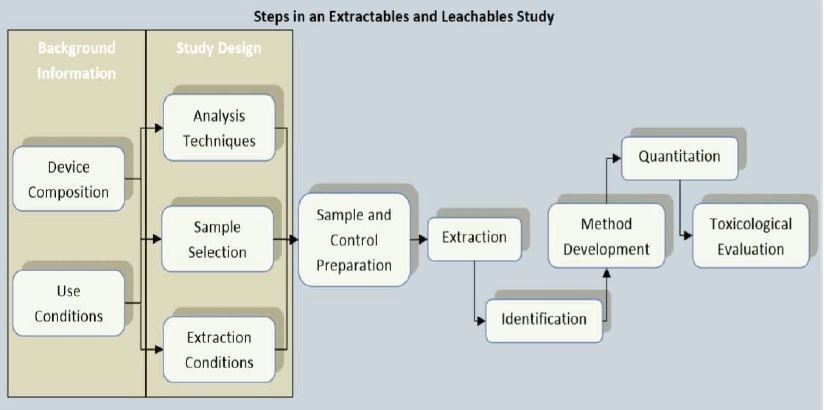

Steps in an extractables and leachables study

Background Information

Materials of Construction

What additives are used?
Multilayer films?
Printing Inks?

Finished Packaging

Which surfaces does the product contact?
Are there interactions between components?
Is there opportunity for non-product contact components to migrate?
Are there any processing aids used?

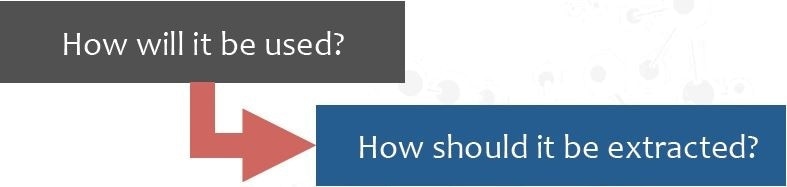

Use Conditions

Use Conditions

Extractables

Challenge the use condition

  • Temperature
  • Solvent Strength
  • Time

Leachables

Mimic the most stringent use condition

Extraction Strategies

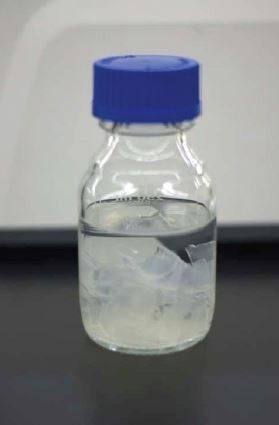

Cut and Cover Extraction

Cut and cover extraction

  • Simple systems
  • Irregularly shaped
    • Articles requiring two-sided extraction
  • Very large containers

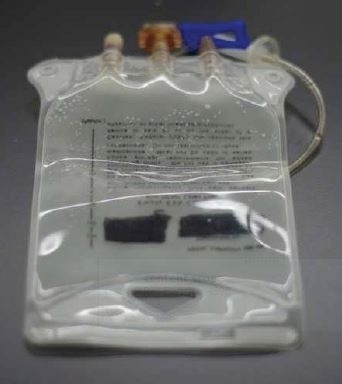

Full Fill Extraction

Full fill extraction

  • Bags
  • Small containers
  • Tubing
  • Non-permeable
  • Printed containers

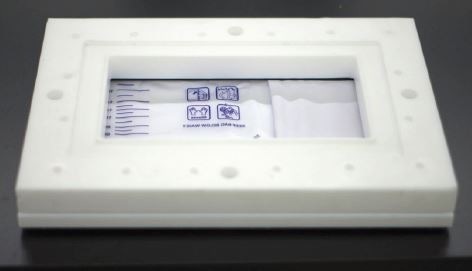

One-Sided Extraction

One-sided extraction

Multi-layer

  • Printed materials
  • Coated materials
  • Product contacts one side

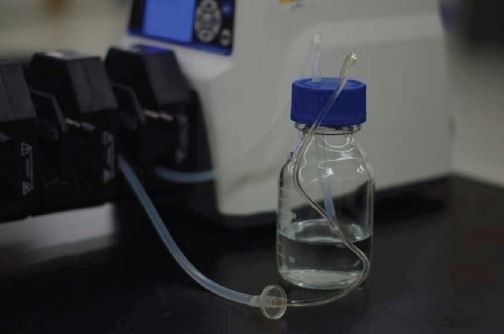

Flow Through Extraction

Flow through extraction

Tubing

  • Complex systems
  • In-Line filters
  • Connectors

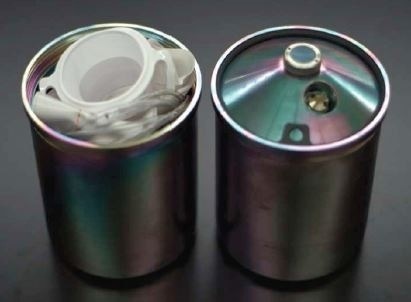

Large Volume Dynamic Headspace

Large volume dynamic headspace

  • Direct analysis of the entire article
  • Very high sensitivity
  • No risk of volatiles loss

Please click here if you would like more information on the product in this article or a quote

Extraction Solvent

From the background information provided for a container closure system the probable extractables were:

Expected Extractable Type Log P Boiling point
Erucamide Hydrophobic 8.8 474 °C
Linear Alkanes Hydrophobic 8.859 250-400 °C
Dibutylphthalate Hydrophobic 4.72 340 °C
Dimethoxyethane Volatile -0.2 85 °C
Irganox 1010 Non-volatile 23 N/A
Irgafos 168 Non-volatile 15.5 N/A
Tinuvin 770 Basic 6.3 N/A
Stearic acid Acidic 8.23 361 °C
Sodium benzenesulfonate Anionic N/A N/A

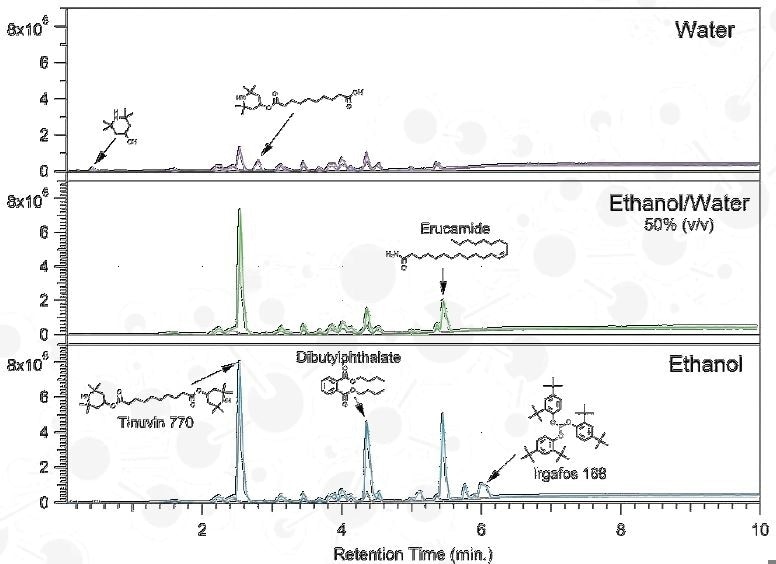

Effect of Solvent Polarity

Effect of Solvent Polarity

Agilent 1290 Infinity UHPLC; Agilent 6520 QTOF-MS
Column: Agilent Zorbax Eclipse Plus C8; 1.8 µm, 2.1x50 mm
Electrospray IonizaAon (ESI); Polarity: positive

Extract Preparation

Extract preparation

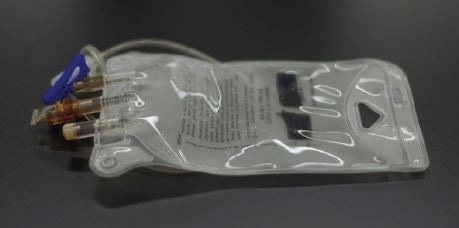

Example:

  • 250 mL per bag
  • Worst case 3 bags per day
  • Product contact surface area 310 cm2
  • Safety concern threshold (SCT) = 0.15 µg/day

AET (µg/bag) = 0.15 µg/day/3 bags/day = 0.05 µg/bag

Extract Vol. (mL) = 310 cm↑2/6 cm↑2/mL =52 mL

LOD = 0.05 µg/bag / 52 mL/bag ≈ 1 ng/mL

Qualitative Analysis

Qualitative analysis

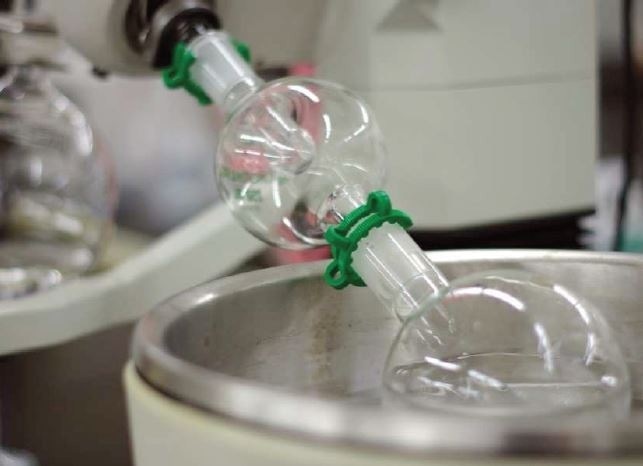

Concentration of Extracts

Extractables and Leachables can be lost during concentration

Concentration of extracts

Loss depends on

  • Volatility of the analyte(s)
  • Extract handling

Best Practices

  • Mild conditions
  • Method validation
  • Headspace analysis

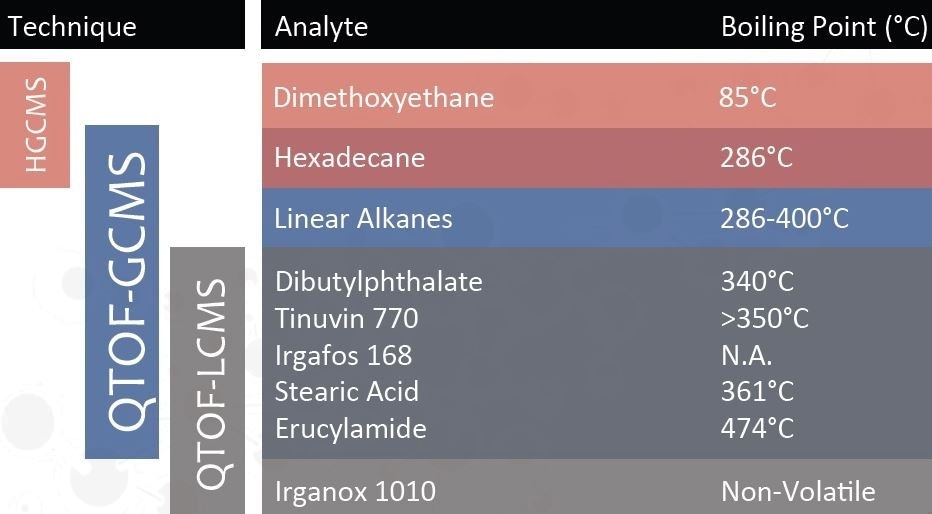

Qualitative Analysis

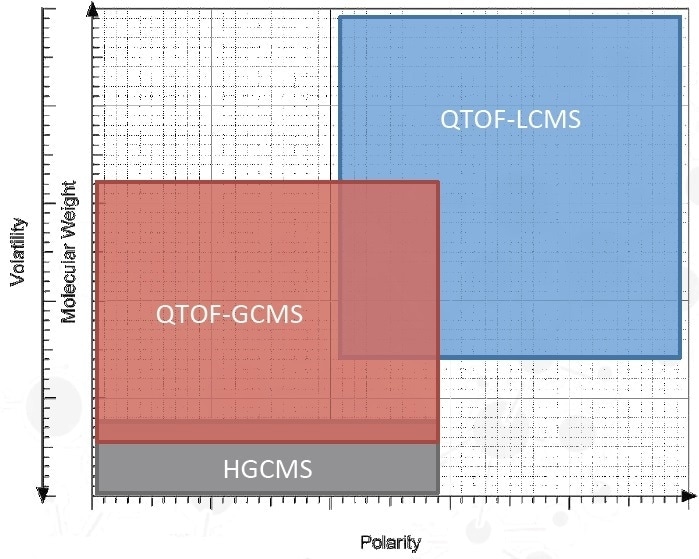

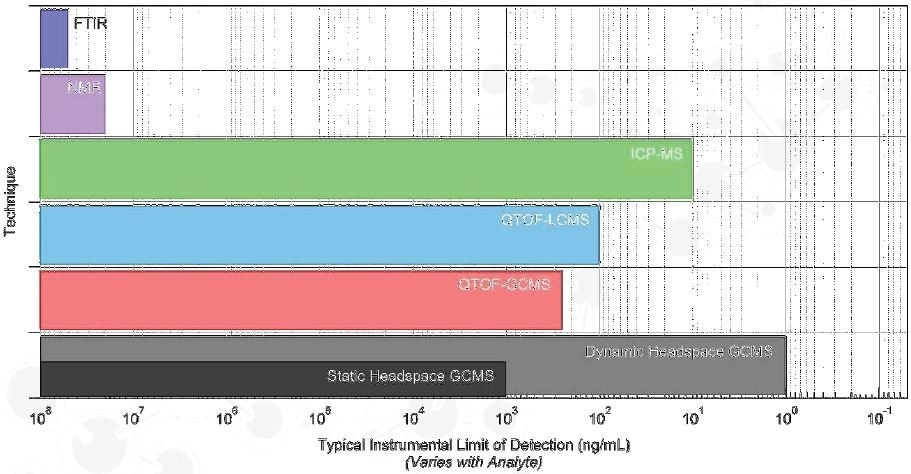

No universal analytical technique exists for E&L analysis

Qualitative analysis

  • Headspace GCMS
    • Volatiles
  • QTOF-GCMS
    • Volatiles
    • Semi-Volatiles
    • Non-polar analytes
  • QTOF-LCMS
    • Polar/ionizable
  • ICP-MS
    • Metals

Extraction Conditions

Ethanol Extract

Expected Extractables Type Log P Boiling point
Erucamide Hydrophobic 8.8 474 °C
Linear Alkanes Hydrophobic 8.859 250-400 °C
Dibutylphthalate Hydrophobic 4.72 340 °C
Dimethoxyethane Volatile -0.2 85 °C
Irganox 1010 Non-volatile 23 N/A
Irgafos 168 Non-volatile 15.5 N/A
Tinuvin 770 Basic 6.3 N/A
Stearic acid Acidic 8.23 361 °C
Sodium benzenesulfonate Anionic N/A N/A

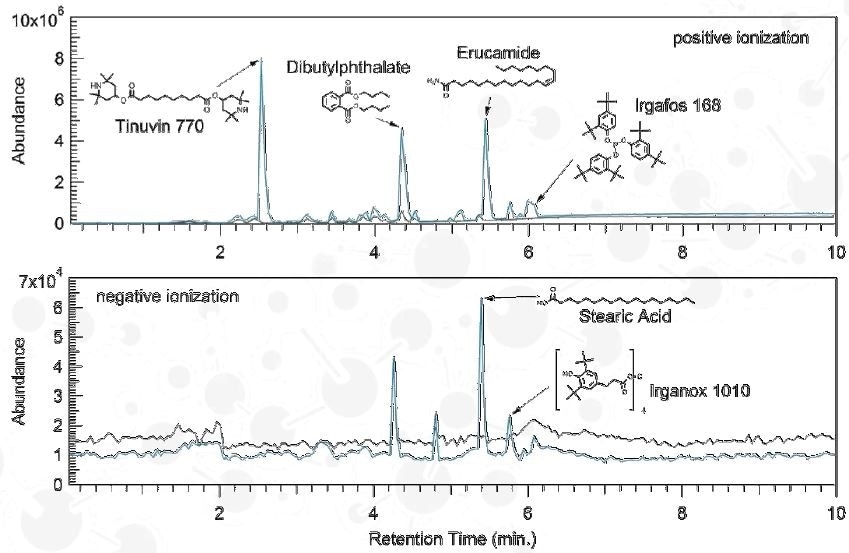

Qualitative Analysis

Qualitative analysis

Agilent 1290 Infinity UHPLC; Agilent 6520 QTOF-MS
Column: Agilent Zorbax Eclipse Plus C8; 1.8 µm, 2.1x50 mm
Electrospray Ionization (ESI)

Retention time

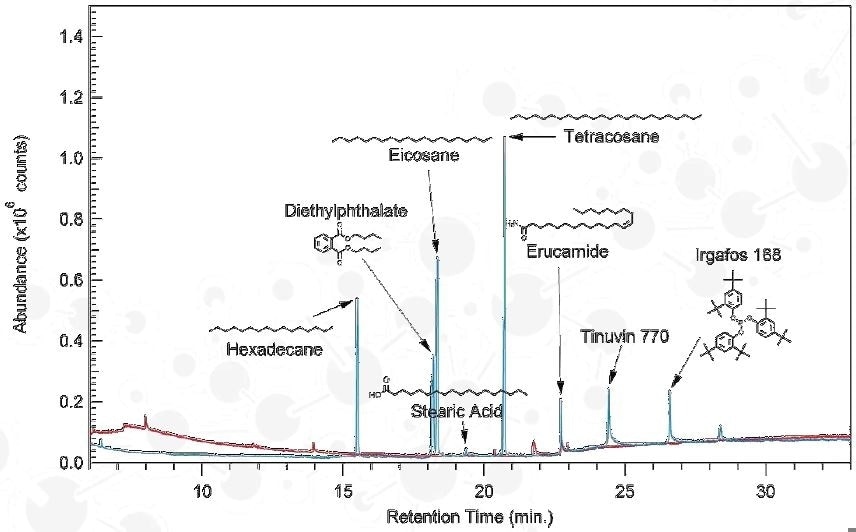

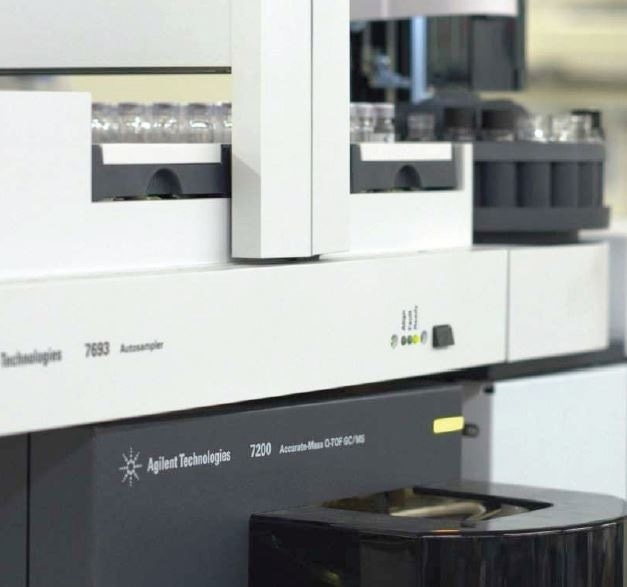

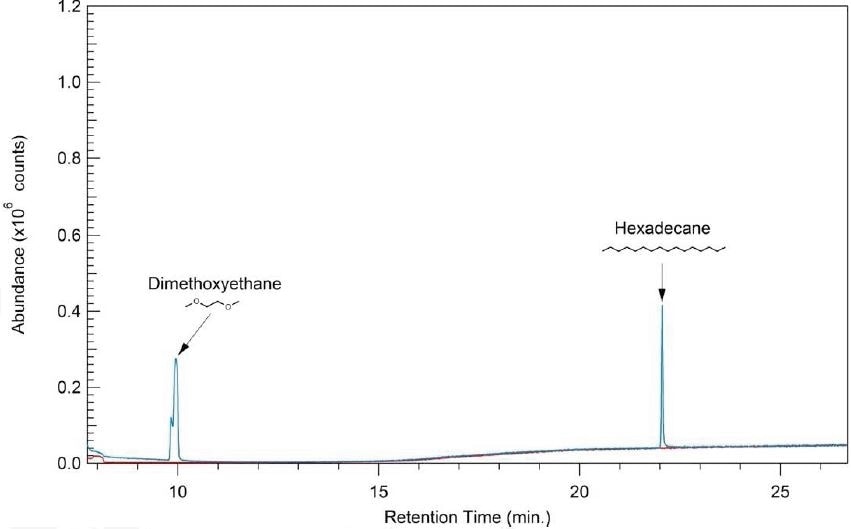

Agilent 7890B GC; Agilent 7200 QTOF-MS
Column: DB-5MS UI; 0.25 mm x 30 m, 0.25 µm
Electron Impact Ionization

Retention time

Agilent 6890 GC; Agilent 5973 inert MSD
Electron Impact Ionization

Technique

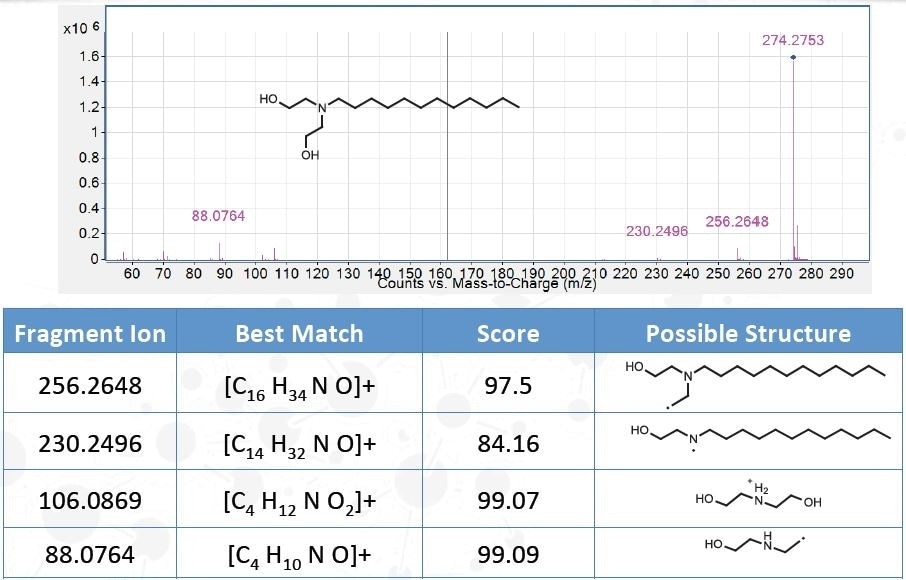

Identification of Unknowns

Identification of unknowns

Database Searches

  • Commercial Databases (NIST, Wiley)
  • Jordi Proprietary Additive and Oligomer Databases

QTOF-GC/QTOF-LC

  • Molecular Formula Generation (MFG)
  • MS/MS for QTOF -LCMS
  • CI for QTOF-GCMS

m/z Best Match Species Mass Score (MFG) Diff. (ppm) DBE
274.2731 C16 H35 N O2 [M+H]+ 273.2660 94.66 2.73 0

Designing a Leachables and Extractables Study

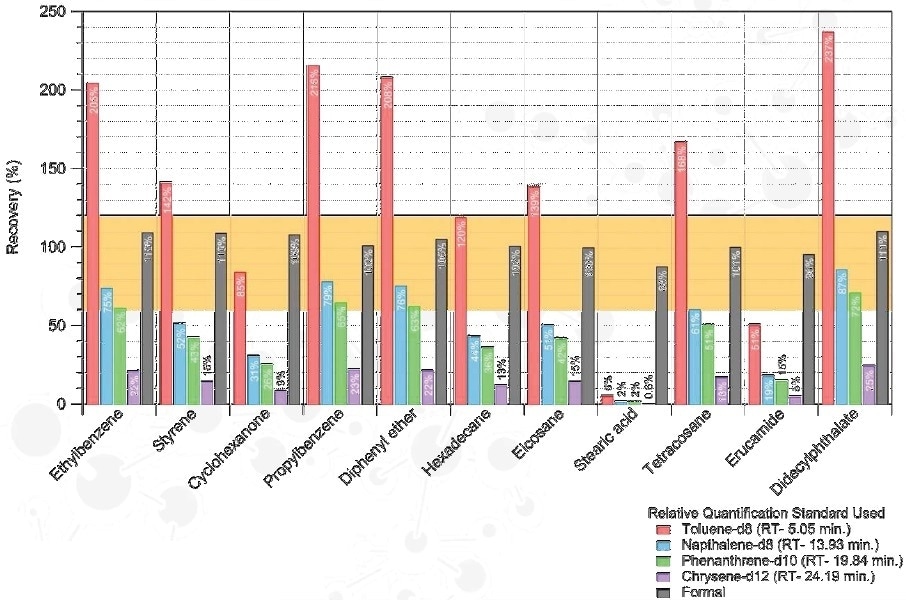

Quantitative Strategies

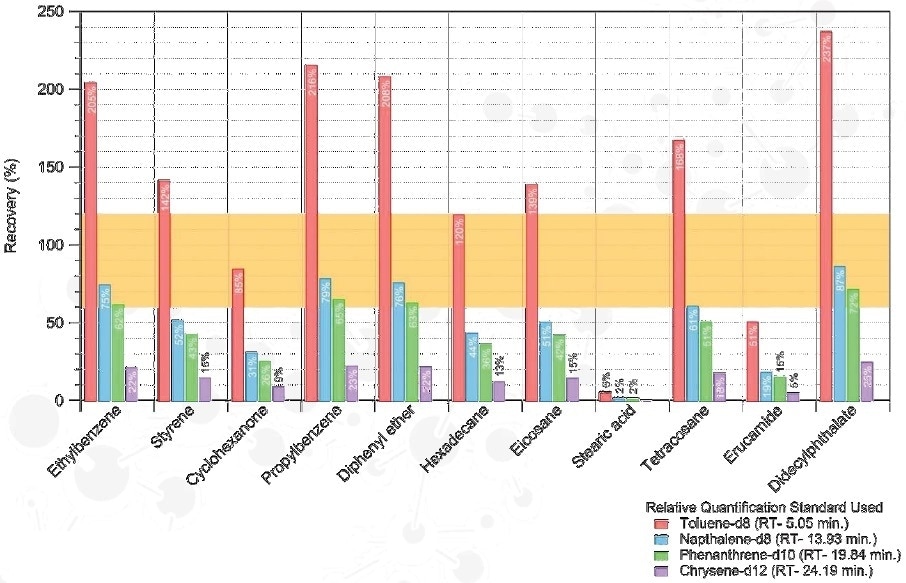

Relative Quantitation

  • Quantification of compounds observed is carried out against surrogate standards
  • Accuracy is based on the surrogate standard used

Estimated Analyte Conc. = Observed Analyte Peak Area / Surrogate Peak Area x Surrogate Conc.

Designing a Leachables and Extractables Study

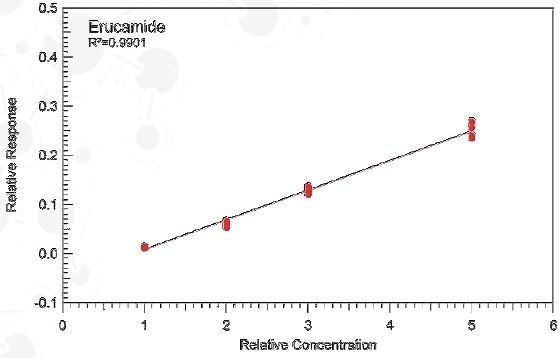

Formal Quantitation

Confirmed compounds are quantified against an analytical standard at a series of concentrations

Methodologies:

  • External Standardization
  • Standard Addition
  • Needs high purity analytical standards

Designing a Leachables and Extractables Study

Designing a Leachables and Extractables Study

Quantitative Method Development

Designing a Leachables and Extractables Study

Quantitative Methods:

  • Dynamic Headspace GCMS
  • UHPLC-UV
  • UHPLC-CAD
  • QTOF-GCMS

In formal quantitation limit of quantitation (LOQ) can be improved using:

  • Targeted MS/MS
  • Large Volume Injection

Designing a Leachables and Extractables Study

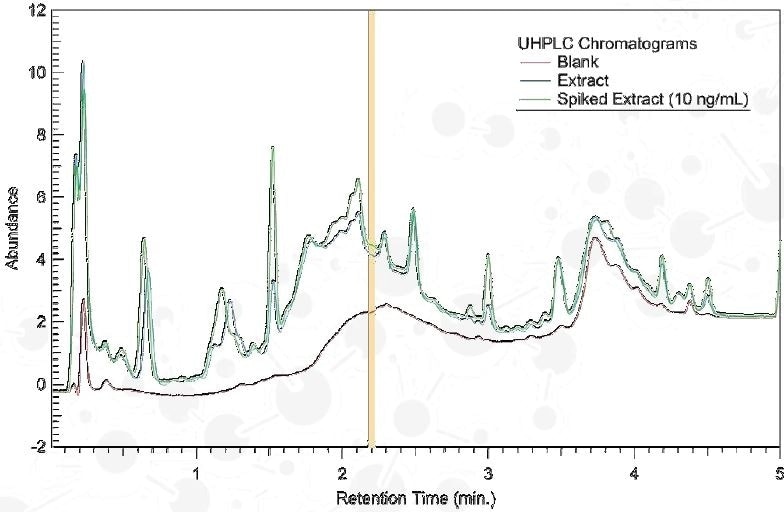

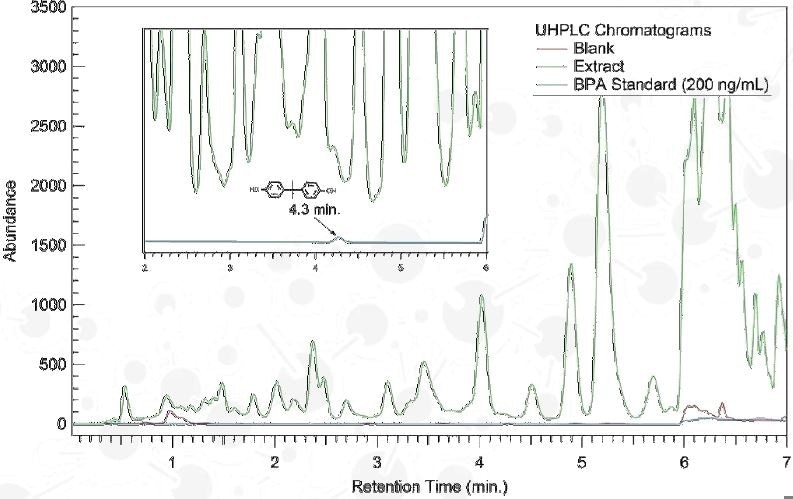

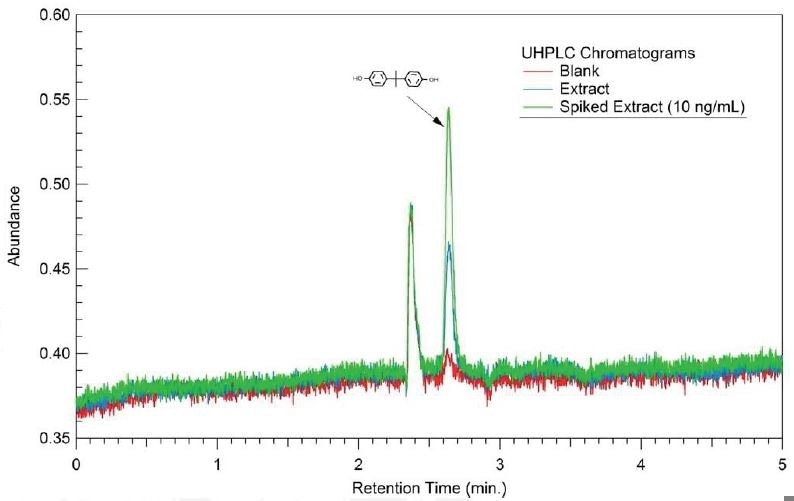

Agilent 1290 Infinity UHPLC
Column: Zorbax SB-C18, 1.8 µm, 100 x 2.1 mm
Mobile Phase: H2O – ACN Grad.
Detection: 230 nm (DAD)

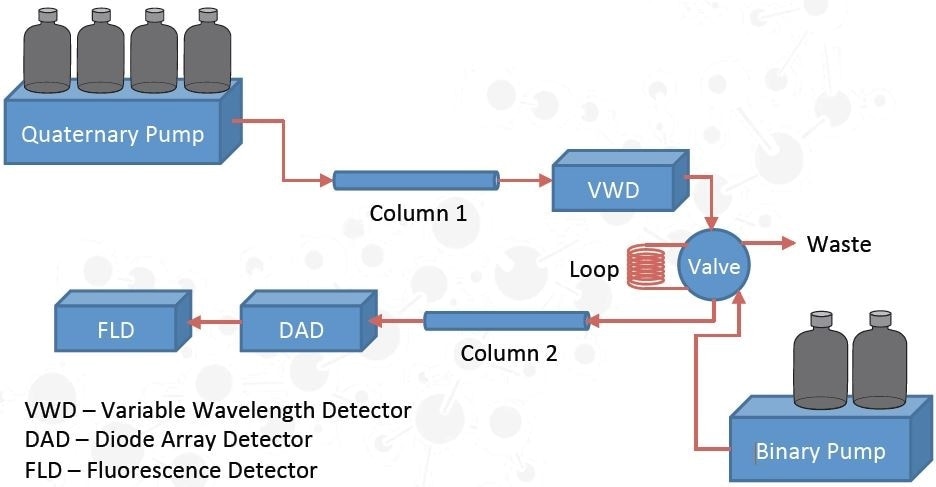

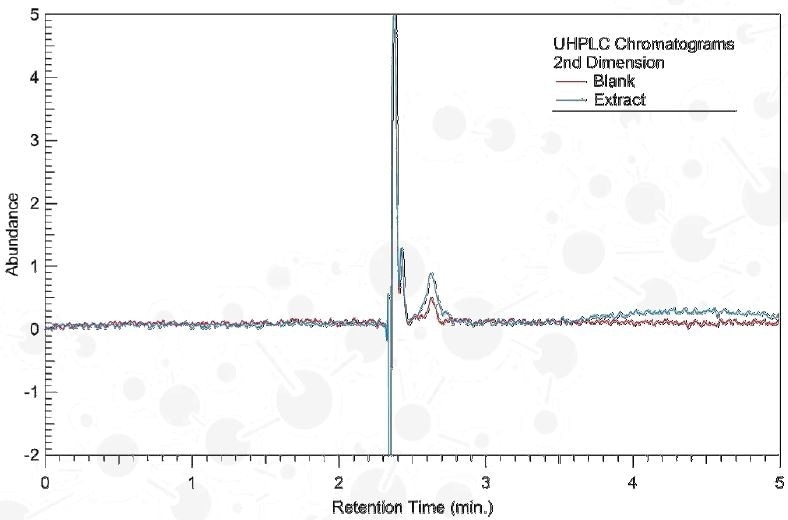

2D UHPLC

Designing a Leachables and Extractables Study

Quantitative Method Development

Designing a Leachables and Extractables Study

Column: Zorbax SB-C18; 1.8 µm, 2.1x50 mm
Mobile Phase: H2O – ACN Gradient
Detection: 230 nm (VWD)
Collection Mode: Heart-cutting; 2.18-2.22 minutes (40 µL)

Designing a Leachables and Extractables Study

Column: Eclipse Plus Phenyl-Hexyl; 1.8 µm, 2.1x50 mm
Mobile Phase: H2O – ACN Isocratic
Detection: 230 nm (DAD)

Designing a Leachables and Extractables Study

Column: Eclipse Plus Phenyl-Hexyl; 1.8 µm, 2.1x50 mm
Mobile Phase: H2O – ACN Isocratic
Detection: Fluorescence; 225 nm excitation, 310 nm emission

A successful study has:

  1. Definitive identifications
  2. Accurate quantification
  3. Appropriate extraction conditions
  4. Careful concentration of extracts
