Epoxy adhesives have long been the engineer's first choice for demanding structural, thermal, and electrical applications. Their mechanical strength, chemical resistance, and versatility are hard to match. Yet conventional epoxies face a potential challenge: brittleness. When assemblies confront cyclic fatigue, impact loads, thermal shock, or bonding between dissimilar materials, that rigidity becomes a failure mechanism.
Toughened epoxy systems from Master Bond directly address this limitation, without sacrificing the core properties that make epoxies indispensable.

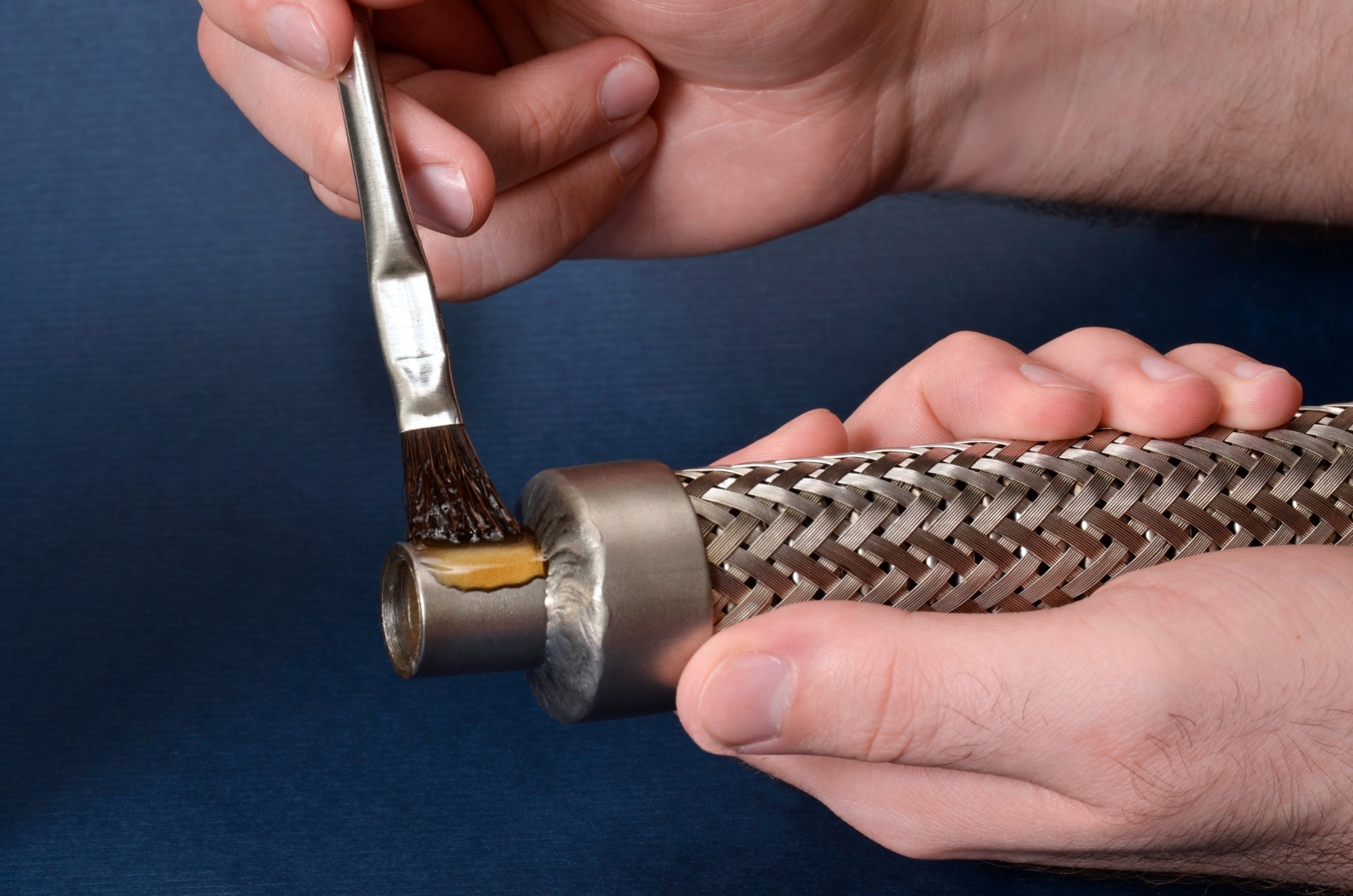

Image Credit: Master Bond Inc.
The Brittleness Problem
Standard epoxies cure into densely crosslinked networks that deliver excellent modulus, adhesion, and chemical resistance. The trade-off is elongation: typical values below 5% leave little room to absorb shear, peel, or impact energy. In applications involving vibration, thermal cycling, or large coefficient of thermal expansion (CTE) mismatches between bonded substrates, this brittleness creates stress concentrations that may lead to cracking, delamination, or premature bond failure.
How Toughening Works
Master Bond employs several established toughening strategies, each with distinct advantages:
- Rubber or thermoplastic incorporation; reactive diluents and chain modification: Selected diluents or reactive elements reduce crosslink density, increasing flexibility at the molecular level.
- Controlled cure schedules: Optimized heat cure cycles tailor final ductility without requiring changes to the base chemistry.
The result is a compound that combines conventional epoxy adhesion with the flexibility to survive demanding load cases.
Key Performance Benefits
Elongation and impact resistance: Toughened systems typically show elongations of 50–80% versus less than 5% for standard grades, a step-change increase that allows the adhesive to flex under cyclic thermal or mechanical loads, significantly reducing fatigue cracking risk. Select high-flexibility grades extend this further, with elongations exceeding 200%.
CTE mismatch accommodation: Bonding dissimilar materials, for example, metal to ceramic, glass to polymer, and flexible circuit to rigid PCB, introduces differential thermal expansion stresses.
Retained core epoxy properties: Toughened grades typically maintain electrical insulation and bond strength comparable to standard epoxy counterparts, with excellent adhesion to metals, plastics, glass, ceramics, and rubber substrates.
Cryogenic performance: Cold environments amplify brittleness, making toughening especially valuable at low temperatures. Many of Master Bond's cryogenically serviceable grades incorporate toughening agents to ensure reliable performance down to 4K.

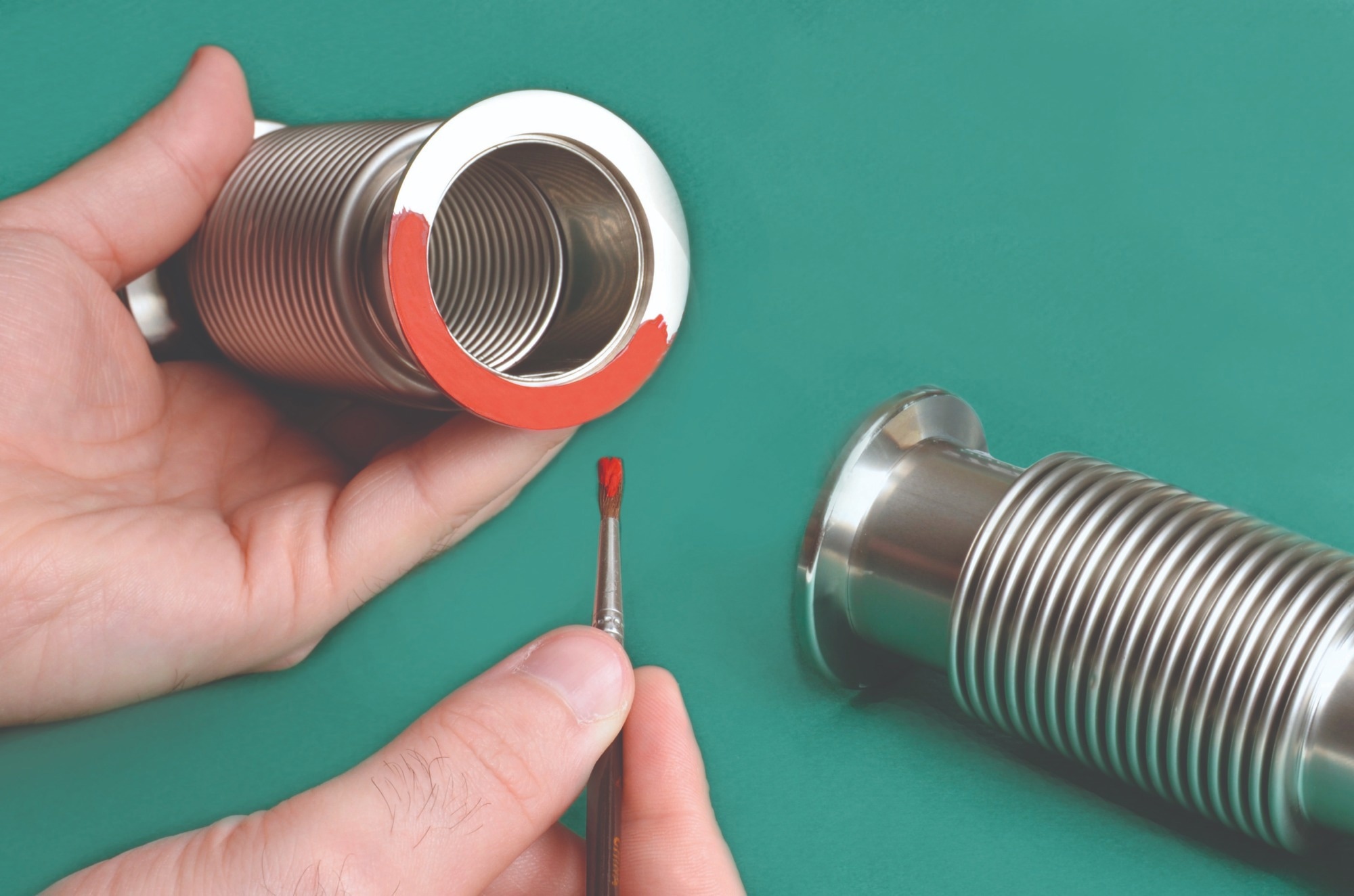

Image Credit: Master Bond Inc.
The Trade-Off
Toughening does entail some meaningful trade-offs: one example is a reduced maximum service temperature. In practice, the vast majority of bonding, potting, and encapsulation applications never approach those upper limits, so this is rarely a constraint.
Where Toughened Epoxies Excel
- Electronic assemblies: potting and encapsulation of transformers, coils, SMT components, and wiring harnesses
- Optical systems: bonding of lenses, doublets, and optoelectronic modules where stress-induced birefringence must be avoided
- Medical devices: bonding of guide wires, catheter balloons, and other flexible or delicate components
- Sensors and transducers: encapsulation of piezoelectric and micro-machined elements sensitive to cure-induced stress
- Flexible circuits: bonding where a rigid adhesive between flexible layers would create a predictable failure site
- Cryogenic assemblies: any application requiring reliable performance at liquid nitrogen or liquid helium temperatures

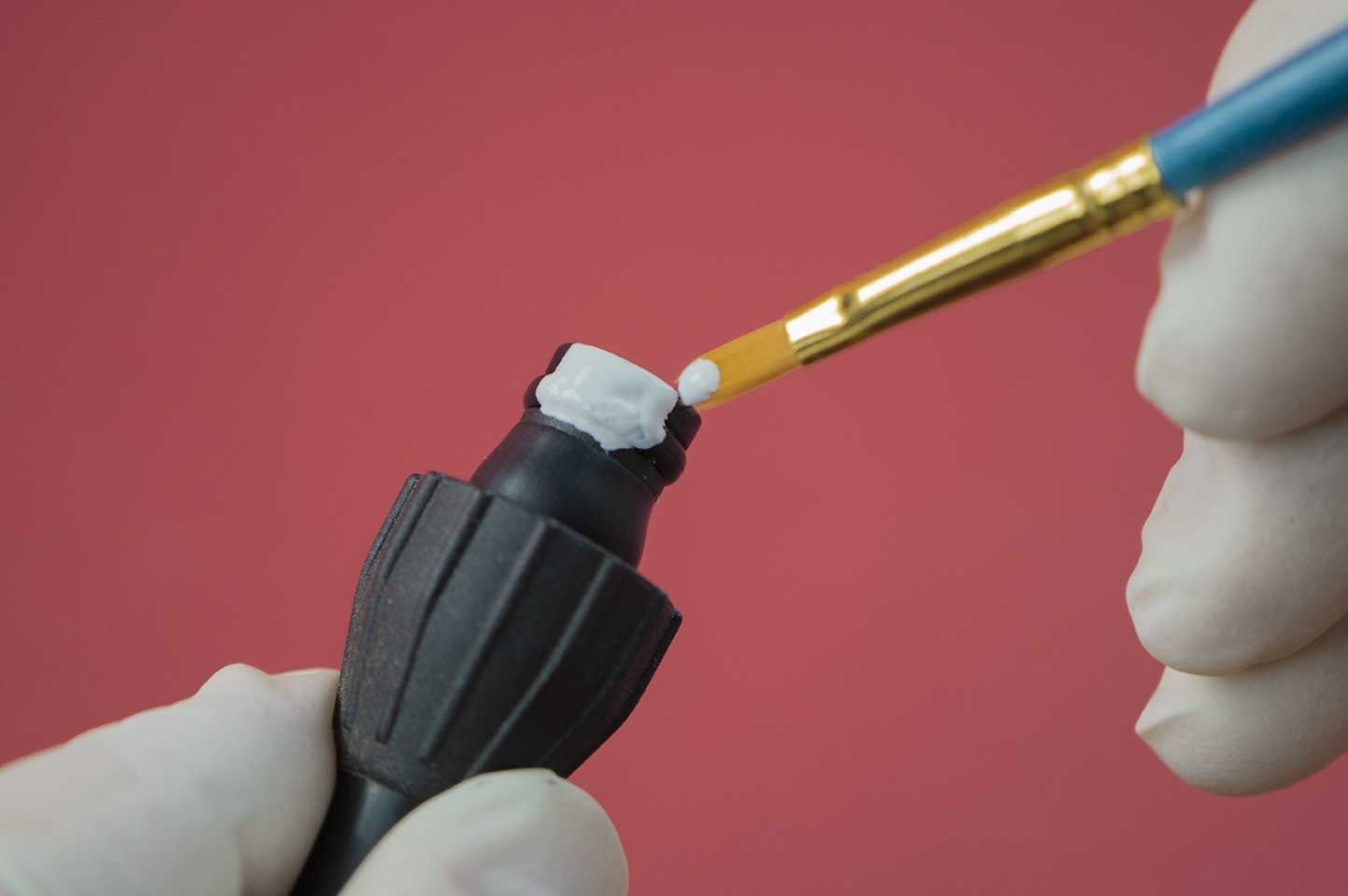

Image Credit: Master Bond Inc.
Specialty Grades: Toughness Plus Functional Properties
Master Bond offers select toughened formulations that add targeted functional properties in addition to the core flexibility benefit. These may include thermal conductivity for simultaneous heat dissipation, NASA low-outgassing compliance for vacuum and space environments, optical clarity for light-path applications, and adjustable electrical resistivity. These performance properties make toughened systems viable for application categories that would otherwise require compromise between mechanical and functional requirements.
Image Credit: Master Bond Inc.
