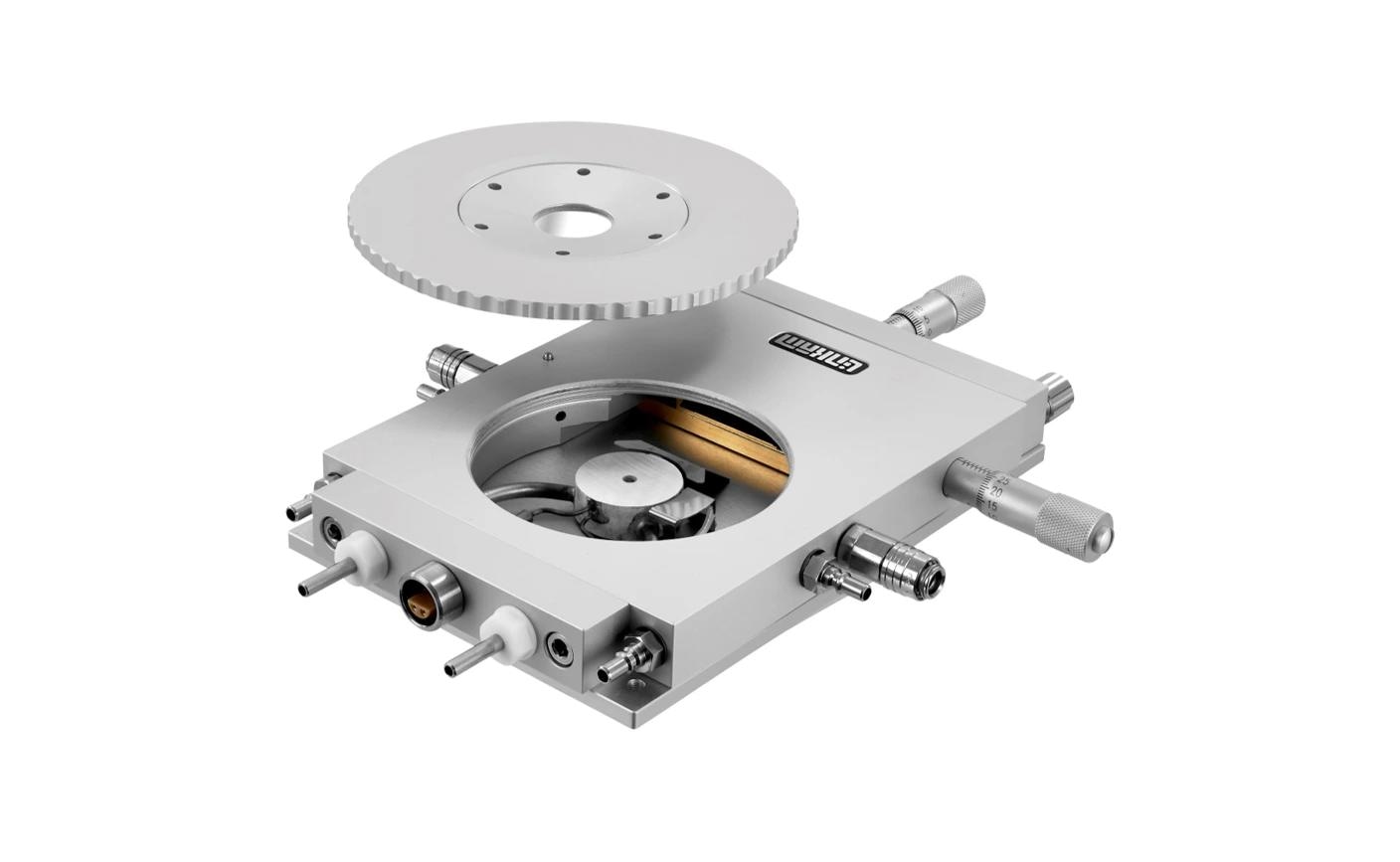

FTIR600 Infrared Analysis Microscope Stage

The FTIR600 stage has been modified from Linkam’s best-in-class high-precision THMS600 to enable infrared analysis of samples from −196 °C up to 600 °C, covering all applications from pharmaceutical to polymers on a majority of the benchtop IR microscope systems. Different window materials such as barium fluoride and zinc selenide are available.

The FTIR600 stage can be mounted vertically for cabinet-type IR spectroscopy and horizontally in IR microscopy setups. The silver block has a tapered hole for enabling higher transmittance of infrared rays without any interference.

FTIR600 Infrared Systems Specifications

  • Using a water cooling pump, the stage body can be cooled for high-temperature work greater than 300 °C
  • Rapid heating rates up to 150 °C/min
  • Temperature range is from −196 °C to 600 °C
  • Rapid cooling rates up to 100 °C/min
  • Temperature stability is less than 0.1 °C
  • 16 mm XY sample manipulation
  • Size of stage body is 135 mm x 92 mm x 21.7 mm
  • Diameter of sample area is 22 mm
  • 100 Ohm platinum resistor sensor
  • Working distance of objective lens is 4.8 mm
  • Has silver heating block for high thermal conductivity
  • Has quick-release gas valve for atmospheric control
  • Ideal for Laser Raman, Confocal, and X-Ray
  • Suitable with most IR systems
  • Range of IR transparent windows available
  • Can also be used with all optical microscope methods
  • Light aperture has a diameter of 3 mm for highly accurate control
  • Direct introduction of coolant into the silver block
