LTS420 Hot Stage Optimized for Isothermal Analysis

The LTS420 hot stage from Linkam is enhanced for isothermal analysis of bigger samples which need high-speed heating and cooling and exceptional thermal stability.

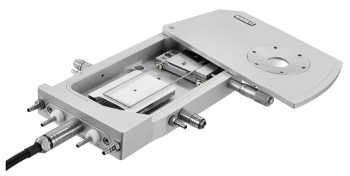

The LTS420 is a user-friendly, versatile heating and freezing stage. The stage comprises of a temperature controlled element of a large area having a sensor embedded near to the surface for precise temperature measurements ranging from -196 °C to 420 °C (when used with LNP96 cooling pump).

The sample has to be simply placed on a regular microscope slide directly in contact with the heating element and can be manipulated 15 mm in X and Y direction. The sample chamber is gas tight and includes gas valves to clean using an inert gas. A humidity compatible version is also available.

In addition, this stage comes with probes and internal electrical connections. Even an inverted microscope version is available.

LTS420 Specifications

  • Sample area: 53.5 x 43 mm
  • Temperature range: From 196 °C to 420 °C
  • Sample holder for typical 76 x 26 mm microscope slides
  • 15 mm XY manipulation as standard
  • Swing out lid for loading samples easily
  • Rapid-release gas valves for atmospheric control

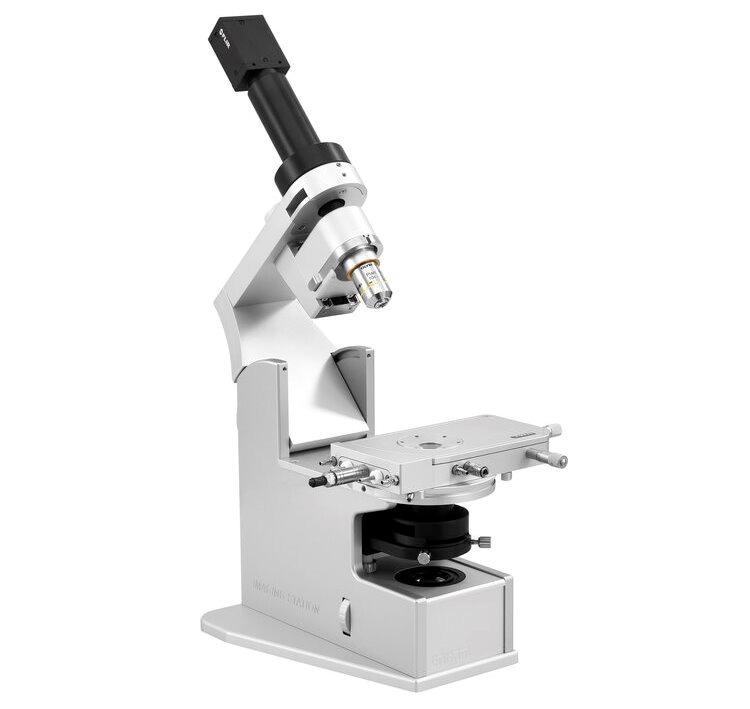

  • Can be directly mounted to microscope table or substage
  • Can be used with reflected or transmitted light
  • 100 Ohm platinum sensor
  • Stage body size is 166 x 90 x 24 mm
  • Temperature stability of less than 0.1 °C
  • Direct injection of coolant into block
  • Inner lid to improve temperature stability
  • Highly conductive metal for enhanced heat transfer
  • Maximum heating rate of 50 °C/minute
  • Minimum heating rate 0.01 °C/minute
  • Minimum working distance of condenser lens: 12.5 mm
  • Minimum working distance of objective lens: 6.5 mm
