HBU 523 GABOMETER® for Accurate Measurements of Heat Build-Up

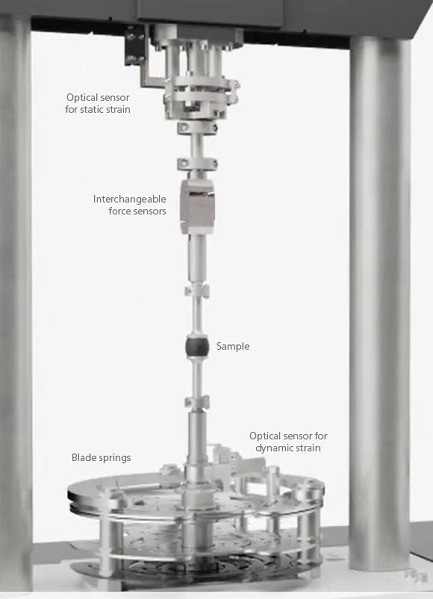

Precise measurements of heat build-up or blowout processes and the identification of the thermal set can be carried out by the HBU 523 Gabometer system. It is a development made depending on the fixed Goodrich Flexometer.

Both force- and elongation-controlled tests can be performed with this advanced flexometer. The HBU 523 Gabometer is ideal for enhancing the thermal durability and dissipation of the semi-finished tire components, absorbers, or dampers.

The new generation flexometer helps measure the material stiffness (E modulus, tanδ option) and damping.

User Advantages

  • Heat build-up and blowout tests as per Goodrich (DIN 53533, ASTM D 623, ISO 4666/3, ISO 4666/4, BS 903 part A50, and JIS K 6265)
  • Goodrich flexometer tests are performed
  • Static: comes with strain- or stress-controlled mode
  • Dynamic: strain- or stress-controlled mode available
  • Wide temperature range (option)
  • Wide frequency range (option)
  • Concurrent measurement of the visco-elastic properties (option)
  • Automatic Sample Changer (ASC) for fully automatic testing (24 hours) (option)
  • Visco-elastic properties in DMTS/DMA mode (option)
  • Pulse load mode available (option)
  • Hysteresis analysis (option)

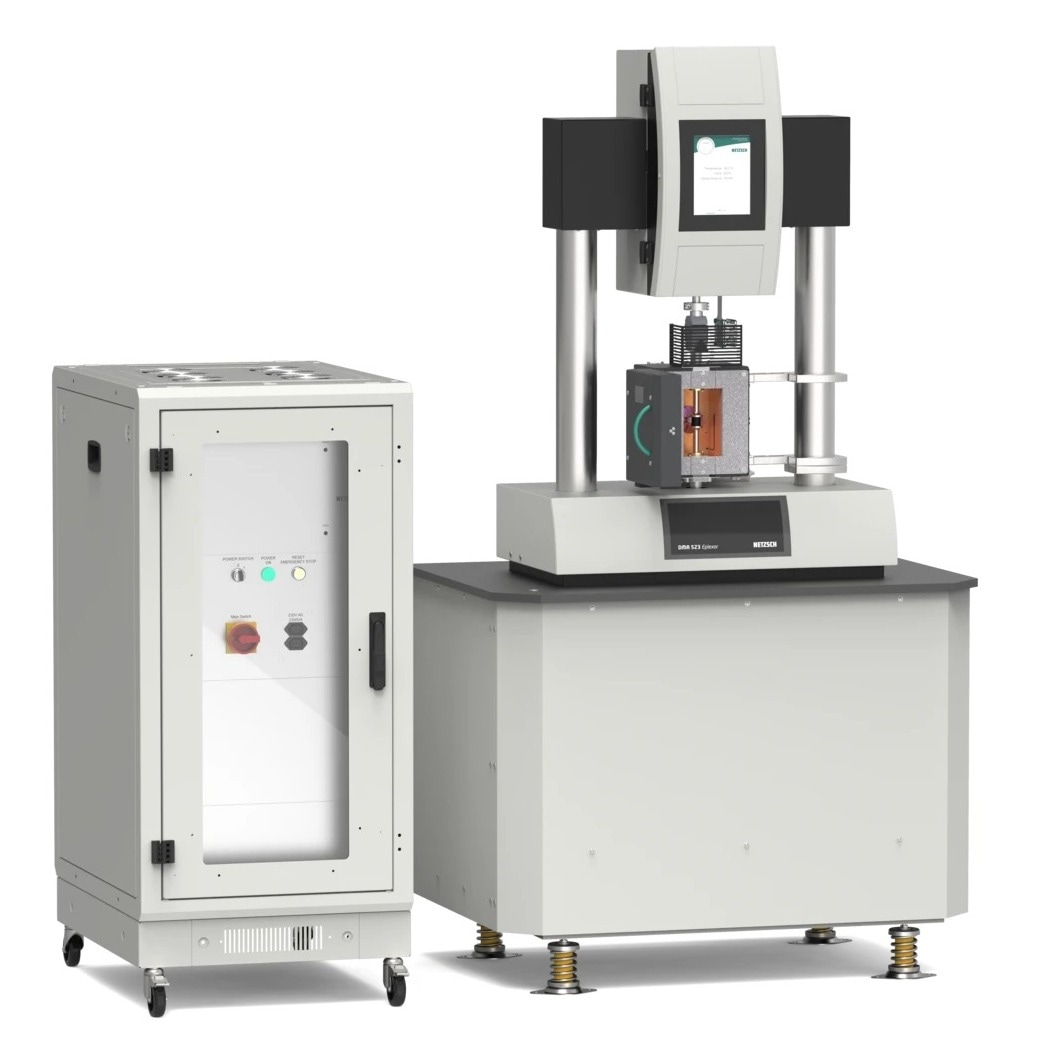

HBU 523 GABOMETER® for Accurate Measurements of Heat Build-Up

Image Credit: NETZSCH-Gerätebau GmbH

Technical Data

Dynamic Strain Range: up to ± 15 mm

Static Deformation: comes up to 70 mm

Frequency Range: 30 Hz

0.0001 Hz to 100 Hz (optional)

Temperature Range: −160 °C up to 300 °C

Test Specimen Size: Diameter: up to 30 mm (optional <40 mm), depending on model

Length: 25 mm

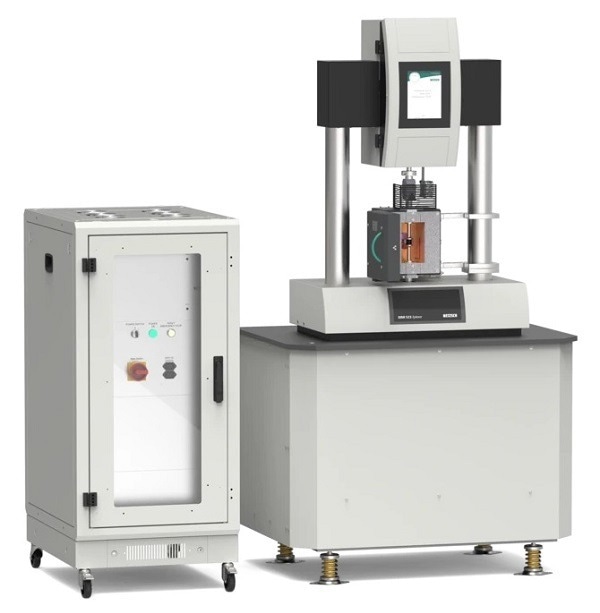

HBU 523 GABOMETER® for Accurate Measurements of Heat Build-Up

Image Credit: NETZSCH-Gerätebau GmbH

Accessories

Sample Holder

Pair of insulated compression sample holders targeted for flexometer tests fitted with a contact thermocouple is available for recording the sample temperature on the surface of the test specimen during heat build-up tests.

Recording of the sample “center” temperature inside the core of the test specimen during heat build-up tests together with a needle-type manual mode (Option) thermocouple (horizontal operation).

Automatic recording of the sample “center” temperature within the core of the test specimen following heat build-up tests having a needle-type thermocouple (vertical operation) driven by a pneumatic penetration system automatic mode (Option).

HBU 523 GABOMETER® for Accurate Measurements of Heat Build-Up

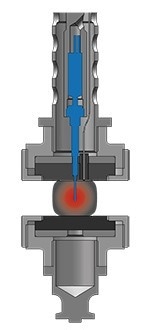

Sample arrangement with vertical needle thermocouple (optional). Image Credit: NETZSCH-Gerätebau GmbH

Automatic Sample Changer

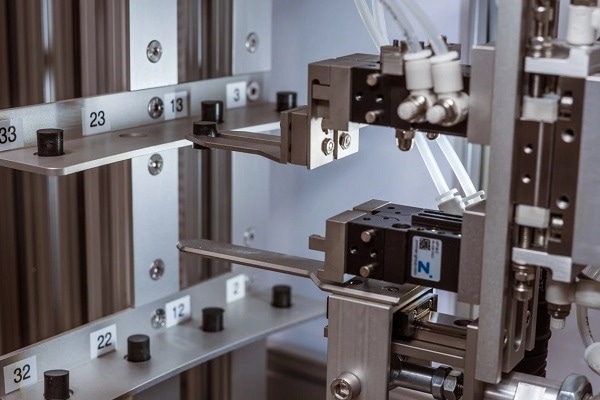

Compression magazine goes for up to 50 compression testing specimens. A robot grip system available takes the samples from the magazine and feeds the HBU 523 Gabometer.

HBU 523 GABOMETER® for Accurate Measurements of Heat Build-Up

Image Credit: NETZSCH-Gerätebau GmbH
