Teknor Apex's New Flexible PVC Grades with Enhanced Adhesion to Rigid PVC

As per Teknor Apex, a new series of flexible PVC compounds for co-extruded profiles forms strong bonds with rigid vinyl substrates, yielding durable seal components for building and construction applications along with the possibility of eliminating the pre-drying step before extrusion.

Formulation  Technology Developed by Teknor Apex that Enhances Adhesion to Rigid PVC

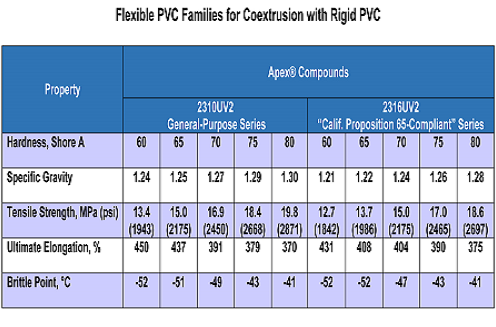

Apex® 2310UV2 and 2316UV2 Series compounds from Teknor Apex Company are available with a Shore A hardness range from 60 to 80 in both general-purpose and “California Proposition 65-compliant” grades, respectively.

  • The complete series is formulated for UV-resistance to ensure long-term retention of appearance and structural properties, and custom formulations are available with fungicide

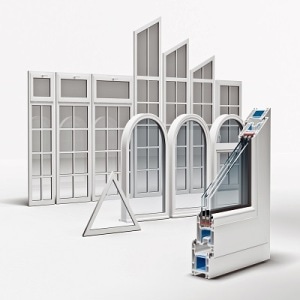

  • Uses for the compounds suggested by Teknor Apex include window and door seals and other indoor and outdoor applications requiring co-extrusion with rigid vinyl
  • To complement these flexible products, Teknor Apex also offers a broad range of rigid PVC compounds, making it possible to purchase a complete system from one supplier

The key to the seal durability provided by these new Apex compounds is formulation technology developed by Teknor Apex that enhances adhesion to rigid PVC. When coextruded onto the substrate, the new compounds exhibit cohesive instead of adhesive bonds, which means that in tests of bond strength the rupture occurs in the flexible PVC rather than at the flexible/rigid interface.

“The bond to rigid PVC is stronger than the inherent strength of the flexible PVC itself,” said John E. Macaluso, building and construction industry manager for the Vinyl Division of Teknor Apex. “While pre-drying the flexible PVC always helps to increase the strength of the bond with rigid vinyl, the excellent bond achieved with our new compounds potentially eliminates the need for the pre-drying step.

Apex® Flexible PVC Series by Teknor Apex

Product Name Supplier Description
APEX® 01-A-0402C-112 Teknor Apex APEX 01-A-0402C-112 is a flexible polyvinyl chloride (PVC) grade. Suitable for processing by extrusion. Recommended for automotive electronics and insulation applications for TWP (thin wall PVC)... view more
APEX® 01-A0087A-91 Teknor Apex APEX® 01-A0087A-91 is a flexible polyvinyl chloride (PVC) grade. Used in wire and cable applications. Is a RoHS compliant grade... view more
APEX® 01-A0303E-95 Teknor Apex APEX 01-A0303E-95 is a flexible polyvinyl chloride (PVC) grade. Recommended for automotive electronics, insulation, wire and cable applications for GPT (general purpose thermoplastics) wire types... view more
APEX® 01-A0383A-85 Teknor Apex APEX 01-A0383A-85 is a flexible polyvinyl chloride (PVC) grade. Recommended for wire and cable applications. Is a ROHS compliant grade... view more
APEX® 02-A0033A-65 NT1 Teknor Apex APEX® 02-A0033A-65 NT1 is a flexible polyvinyl chloride (PVC) and RoHS compliant grade...view more

Source: http://www.teknorapex.com/
