Steel is a foundational material used in a huge number of sectors, from construction to transportation. With its strength, durability, and versatility, the material is invaluable. But not all steel is created equal: Each type of steel has distinct properties that make it useful for its intended applications.
Whether you're designing for strength, corrosion resistance, or weldability, choosing between carbon steel and alloy steel can completely change your project. This article breaks down what sets them apart - and where each one shines.

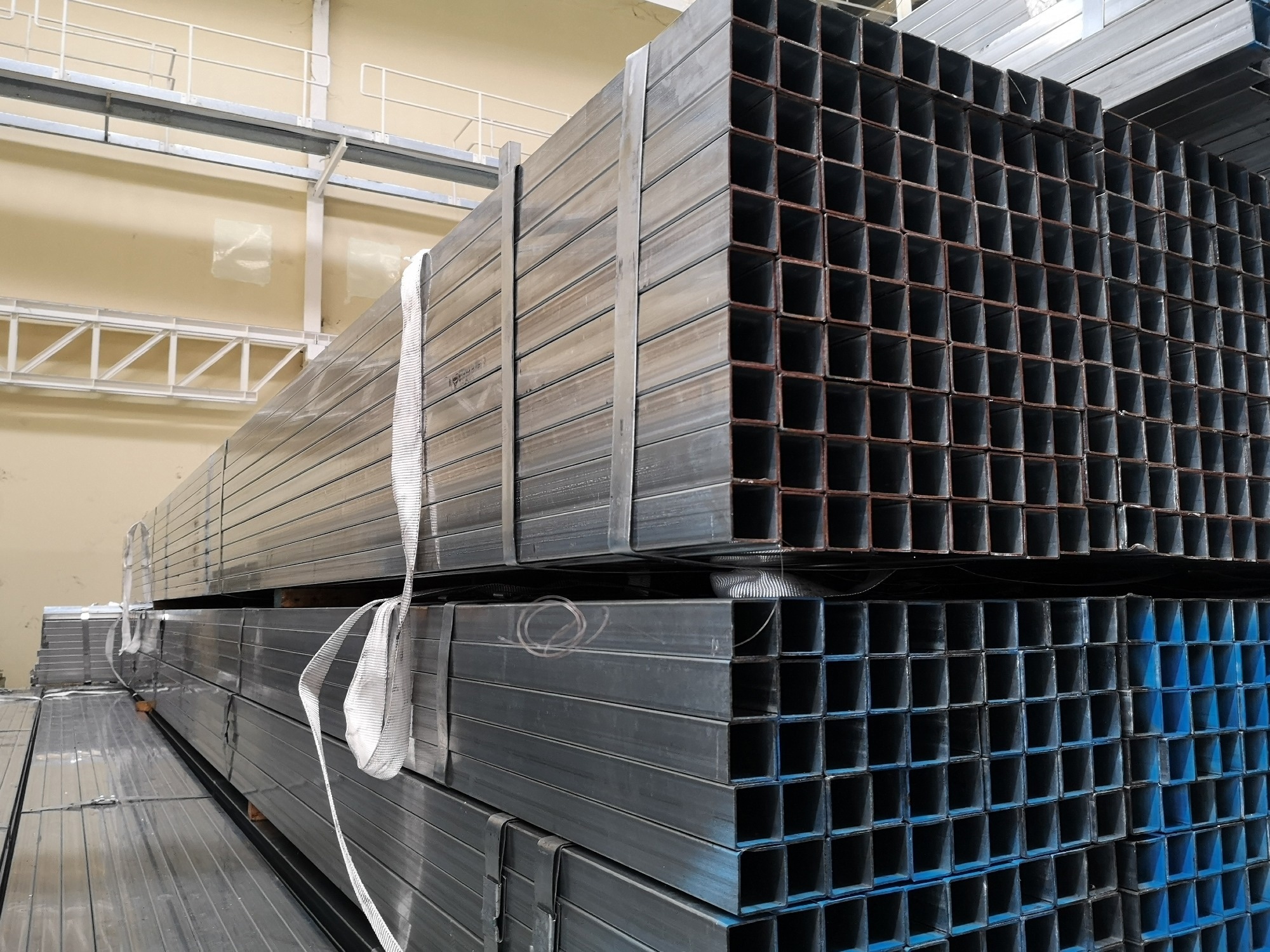

Image Credit: cheepphoto/Shutterstock.com
Composition and Classification
At its most basic, steel is an alloy of iron and carbon. The percentage of carbon determines the basic mechanical properties, and the additional alloying elements are used to modify its behavior.
Carbon steel primarily relies on carbon content for its mechanical characteristics and typically contains small amounts of other elements like manganese, silicon, and copper. The carbon content in these steels can range from 0.12 % to approximately 2 %.
Carbon steels are usually divided into low-carbon (or mild), medium-carbon, and high-carbon steels depending on their carbon content. 1
Alloy steels, on the other hand, incorporate deliberate additions of other elements like chromium, nickel, molybdenum, vanadium, or tungsten in controlled proportions.
These alloying elements introduce specific enhancements, including improved corrosion resistance, higher toughness, better hardenability, or superior performance at elevated temperatures.
Carbon steels derive their mechanical performance primarily from heat treatment and carbon levels. In contrast, alloy steels can be engineered for targeted applications through the precise selection and combination of these additional elements. 1
Get all the details: Grab your PDF here!
Carbon vs Alloy: The Best Choice in Industry?
Corrosion Behavior for Offshore Applications
As steel is used in structures that require strength and durability, corrosion is one of its biggest adversaries. Steel corrosion becomes even more important in marine applications.
A 2024 study examined marine corrosion behavior of carbon and micro-alloyed steels using both field (seaport) exposures and lab tests to capture atmospheric, saline, and microbiologically influenced corrosion effects.
The researchers evaluated compositions with trace Cr and Al additions and measured weight loss, electrochemical parameters, and surface film chemistry to understand how small alloying changes affect long-term performance in aggressive marine settings. 2
They found that low alloying with Cr and alloy combinations incorporating Al significantly improved passive film stability and reduced generalized and pitting corrosion rates compared with plain carbon steels, particularly when biofilms are present.
Field exposure tests demonstrated that these improvements translated into materially lower mass loss over several months.
The results of this study support the selection of low-alloy grades over standard carbon steels to extend service life and reduce cathodic protection/painting burdens for offshore structures, shipbuilding, and coastal infrastructure, where maintenance costs are high. 2
Welding Behavior
Image Credit: Anjasrizkip/Shutterstock.com
In a comparative microstructure and welding study, scientists examined high-strength low-alloy (HSLA) steels versus traditional carbon steels under various welding parameters to see how processing affects tensile and fatigue properties.
Using friction/arc welding conditions and controlled heat inputs, they characterized fusion zones, heat-affected zones (HAZ), toughness, and tensile responses.
The high-strength low-alloy specimens generally exhibited better post-weld tensile strength and, under optimized welding parameters, superior HAZ toughness compared to plain carbon counterparts. 3
The study emphasized the impact of microalloying mild steel compositions with Nb, Ti, and V, revealing that these microadditions improved strength after welding without the embrittlement and coarse-grain HAZ problems common to high-carbon steels. 3
This study is highly significant for applications in welded structures, such as pipelines, heavy equipment frames, and ship panels.
The research presents HSLA grades as a better choice than carbon steel when weldability and post-weld mechanical integrity are vital for structural integrity, because alloy design and controlled heat input can deliver both strength and toughness where a high-carbon alternative would risk cracking or require special post-weld treatments.3
Mechanical Responses
The mechanical behavior of carbon and alloy steels reflects their compositional differences.
Low-carbon steels are relatively soft and ductile, making them easy to form, weld, and machine. They are widely used where moderate strength is sufficient, and fabrication ease is a priority, such as in automotive body panels, pipelines, and general structural components.
Medium-carbon steels provide a balance between strength and ductility, and are suitable for machinery parts like gears, shafts, and axles. High-carbon steels, with their greater hardness and wear resistance, are preferred for cutting tools, springs, and high-strength wires. 1,4
Alloy steels, on the other hand, have a much broader range of mechanical properties due to the varied influence of their alloying elements.
Chromium enhances hardness and wear resistance, nickel improves toughness, molybdenum boosts high-temperature strength, and vanadium refines grain structure for better fatigue resistance.1,4
Image Credit: saweang.w/Shutterstock.com
In a 2025 study published in Buildings, a team of scientists developed a constitutive model and directly compared the mechanical responses of a common low-carbon structural grade (Q235) with a low-alloy structural grade (Q345).
The researchers performed a series of monotonic and cyclic mechanical tests, determining tensile strengths, elongation, and constitutive parameters, and correlating these parameters with microstructural observations.
Their results showed that Q345, a low-alloy Mn/Cr/Ni-bearing steel, consistently achieved higher yield and ultimate strengths, while also modestly improving ductility and strain-hardening behavior. Q235 performed poorly under the same processing, attributable to microalloying and optimized thermomechanical rolling. 5
The researchers used the measured stress-strain curves to calibrate a constitutive model useful for finite-element design of structural components. The study provides direct, quantitative evidence for structural design decisions, where higher strength-to-weight or thinner sections are desired, like in bridges, crane members, and building frames.
Low-alloy Q345-type steels allow lighter structures or higher allowable loads compared with plain carbon Q235, often with only small cost or fabrication tradeoffs. 5
Final Thoughts
Carbon or alloy, the answer is inconclusive. Both carbon steel and alloy steel have advantages over each other, depending on the intended application.
Carbon steel is a practical and cost-effective choice where ease of fabrication, moderate strength, and weldability are sufficient. However, when projects require enhanced performance, such as superior corrosion resistance, higher strength-to-weight ratios, or improved weld toughness, low-alloy and microalloyed steels demonstrate clear benefits.
Ultimately, selecting between carbon and alloy steel is a question of balance. What performance metrics are critical, what environment will the material reside in, and what are the lifecycle costs involved? Answering these aspects carefully will result in an outcome where the most efficient and reliable engineering is achieved. .
References
- Cabrera, C., Moron, C., & Garcia, A. (2014). Learning process of the steel use in building engineering students. In INTED2014 Proceedings. IATED. https://library.iated.org/view/CABRERA2014LEA
- Xia, T., Ma, Y., Zhang, Y., Li, J., & Xu, H. (2024). Effect of Mo and Cr on the microstructure and properties of low-alloy wear-resistant steels. Materials. https://www.mdpi.com/1996-1944/17/10/2408
- Sripriyan, K., & Karthigha, M. (2024). A comparative study on the microstructures and mechanical properties of arc welded of HSLA steel. Journal of Mechanical Science and Technology. https://link.springer.com/article/10.1007/s12206-024-1132-7
- Gupta, S. (2019). Chan-vese segmentation of SEM ferrite-pearlite microstructure and prediction of grain boundary. Int. J. Innov. Technol. Explor. Eng. https://www.ijitee.org/wp-content/uploads/papers/v8i11/K25530981119.pdf
- Ma, Q., Feng, D., Li, Y., Yao, B., & Wang, L. (2025). Mechanical Properties and Constitutive Model of Steel Under Temperature–Humidity Cycles. Buildings. https://www.mdpi.com/2075-5309/15/5/732
