Supplier Data - Osmium (Os) (Goodfellow)

Background

Osmium (Os) was discovered in 1803 by Smithson Tennant in London, England.

Pure Osmium is silver in colour and is the densest of all metals. It has a pungent smell, due to the formation of osmium tetroxide

Abundance and Occurrence

Osmium is a member of the platinum group of metals and is commonly found in conjunction with these elements (abundancy is 1 x 10-4 ppm in the earth’s crust).

Extraction

The mixed metals can be extracted from the ore with aqua regia, followed by treatment of the soluble and insoluble portions in various ways. Osmium is found in both portions and is removed as the volatile tetroxide, which can then be reduced.

Applications

Applications for Osmium include its use as an alloying constituent with other group metals, the resultant alloys being extremely hard (e.g. osmiridium, a naturally occurring alloy of osmium and iridium which is extremely hard and is used for the tips of pen nibs).

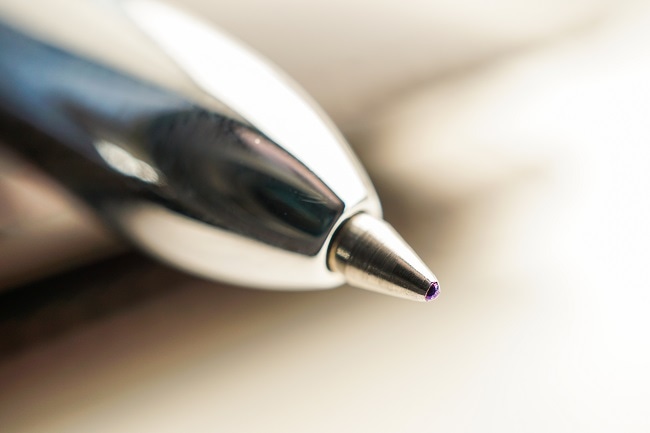

Osmium is an extremely hard material and can be used for the tips of pens. Image Credit: ShutterStock/tantawat

Osmium is an extremely hard material and can be used for the tips of pens. Image Credit: ShutterStock/tantawat

Osmium can also be used as a powerful catalyst in gas reactions.

Key Properties

The key properties of Osmium are tabulated below.

Table 1. Key properties

Atomic Properties
Atomic number 76
Atomic radius - Goldschmidt ( nm ) 0.135
Atomic weight ( amu ) 190.2
Crystal structure Hexagonal close packed
Electronic structure Xe 4f14 5d6 6s2
Photo-electric work function ( eV ) 4.8
Thermal neutron absorption cross-section ( Barns ) 15.3
Valences shown 0, 1, 2, 3, 4, 5, 6, 7, 8
Ionisation Potential No. eV
1 8.7
2 16
Natural Isotope Distribution Mass No. %
184 0.02
186 1.58
187 1.6
188 13.3
189 16.1
190 26.4
192 41.0
Electrical Properties
Electrical resistivity @ 20 °C ( µOhm.cm ) 8.8
Temperature coefficient @ 0-100 °C ( K-1 ) 0.0041
Superconductivity critical temperature ( K ) 0.66
Mechanical Properties
Material condition Soft Hard Polycrystalline
Bulk modulus ( GPa ) 373
Hardness - Vickers 300-350 670-1000
Poisson’s ratio 0.25
Tensile modulus ( GPa ) 559
Physical Properties
Boiling point ( °C ) 5027
Density @ 20 °C ( g.cm-3 ) 22.5
Melting point ( °C ) 3045
Thermal Properties
Coefficient of thermal expansion @ 0-100 °C ( x10-6 K-1 ) 4.57
Latent heat of evaporation ( J.g-1 ) 3305
Latent heat of fusion ( J.g-1 ) 154
Specific heat @ 25 °C ( J.K-1.kg-1 ) 131
Thermal conductivity @ 0-100 °C ( W.m-1.K-1 ) 87.6

About Goodfellow

Goodfellow supplies metals, ceramics and other materials to meet the research, development and specialist production requirements of science and industry worldwide.

Source: Goodfellow

For more information on this source please visit Goodfellow.
