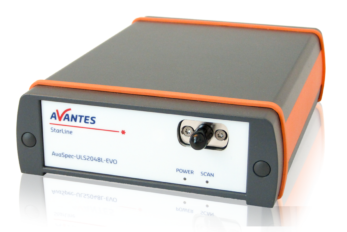

Preconfigured UV, Vis and NIR Fiber Optic Spectrometers - AvaSpec

Avantes provides a range of pre-configured spectrometers that are ready for shipping to customers with urgent needs and general flexibility in their specifications.

One of the instruments is configured for VIS-NIR spectroscopy (360 - 1100 nm), one for the visible range (360 - 880 nm), and four for UV-VIS-NIR measurements (200 - 1100 nm).

The AvaSpec-ULS2048L-USB2-UA-RS spectrometer, with a replaceable slit, has also been added into Avantes’ preconfigured spectrometer series.

All configurations from Avantes include an upgrade to AvaSoft-Full. A USB2-cable and an extensive manual are provided. All of the necessary items required to conduct experiments is included. These spectrometers are off the shelf and ready for dispatch.

Download the Brochure for More Information

Technical Infomation

Name AvaSpec-ULS3648-USB2-UA-25 AvaSpec-ULS2048-USB2-UA-50 AvaSpec-ULS2048L-USB2-UA-RS AvaSpec-ULS2048-USB2-VA-50 AvaSpec-ULS2048L-USB2-BB-50 AvaSpec-ULS2048XL-USB2-UA-50
Spectral coverage UV/VIS/NIR VIS/NIR VIS UV/VIS/NIR
Range 200 - 1100 nm 360 - 1100 nm 360 - 880 nm 200 - 1150 nm
Slit/Connector 25 µm /SMA-905 50 µm / SMA-905 25 µm /SMA-905 50 µm / SMA-905 50 µm / SMA-905 50 µm / SMA-905
Resolution (FWHM) 1.3 nm 2.4 nm 1.4 nm 2.4 nm 1.2 nm 2.4 nm
A/D Convertor 16 bit
Interface USB 2.0
Included options Deep-UV Coating
Order-sorting coating
Detector collection lens
Deep-UV Coating
Order-sorting coating
Detector collection lens
Order-sorting coating
Applications High-resolution measurements from high intensity sources (lasers, powerful light sources, plasma) Highly versatile broadband spectrometer. Ideal for absorbance, emission, irradiance measurements Color measurements, visible irradiance measurements Color measurements, visible irradiance measurements Highly sensitivity applications such as fluorescence or irradiance from very low intensity sources
AvaSoft-Full Included
