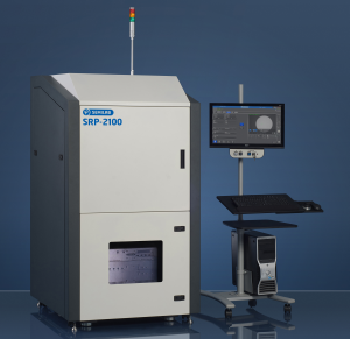

SRP-2100 Semiconductor R&D Tool for Characterizing Multilayer Structures

Semilab has developed research and development tools for a wide range of applications in semiconductor, material sciences, and photovoltaic research. SRP- 2100 is one such system that provides a range of measurement parameters, such as dopant concentration and resistivity, carrier, resistivity and dopant shape, oxide thickness, sheet resistance, profile shape, transition width, junction depth, electrically activated dose, and GaAs and other compound semiconductors.

Through SRP-2100, users can explore the complete resistivity profile or carrier density in a silicon device. Designers can check how their models signify actual fabricated devices; process engineers can troubleshoot all silicon doping operations, including ion implantation, epi and diffusion; and yield enhancement engineers can perform fabrication processes for trouble-free failure analysis.

Additional Features

Additional features of the SRP-2100 are:

  • Shallow Layer Measurement (SLM)
  • Bevel Angel Measurement (BAM)
  • Variable Probe Spacing (VPS)
  • PCIV option for wide bandgap semiconductors
  • Signal tower
  • Stand-alone bevel sample polishing unit
