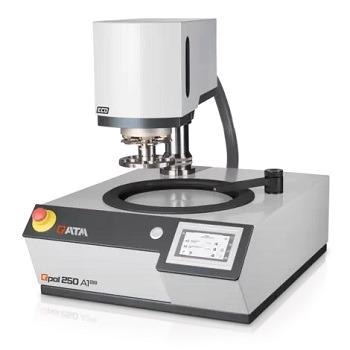

QATM has introduced a single-wheel grinding and polishing machine called Qpol 250 A1 ECO for working wheels Ø 200/250 mm. The machine can be easily operated by using a 4.3″ touch screen.
The new holder developed for the working wheel (single-disc design) allows for operation without using any carrier disc and without affecting the performance. The control software permits editing and saving of up to 200 preparation techniques protected by user account management.
The direction of rotation, speed, and pressure of both the head and working disk can be adjusted. Using a spin-cycle function (Cleaning Boost), the grinding and polishing medium can be spin-dried at 750 rpm towards the end of the preparation process in less than 3 seconds.
The powerful machine can be equipped with the dosing system Qdoser ECO, providing the highest flexibility and operating convenience for sample preparation.
Product Advantages
- Spin-cycle function (Cleaning Boost)
- Single-wheel grinder and polisher
- Up to 200 customized programs can be stored
- 4.3″ touch-screen with intuitive ATM user software
- Polishing head and working wheel can rotate in clockwise/counter-clockwise directions
- Variable speed of polishing head and working wheel
- Bowl can be easily cleaned or rinsed by raising the working wheel (single-disk design)
- Low-cost LED illumination
- Powder-coated aluminum case
- Impact-resistant plastic bowl
Features
| Working wheels |
Ø 200/250 mm |
| No. of samples (single pressure) |
1-5 samples Ø 40 mm |
| Single pressing force |
variable, 5-80 N |
| Central pressing force |
variable, 20-285 N (expert mode: 20-350 N) |
| Connection power |
2.3 kVA |
| Drive power (grinder) |
0.55 kW (S1) |
| Drive power (head) |
0.18 kW (S1) |
| Speed (grinder) |
30 - 600 min-1 |
| Speed (head) |
30 - 160 min-1 |
| W x H x D |
511 x 530-610 x 710 mm |
| Weight |
~ 64 - 72 kg |
| Water connection |
1x freshwater connection R½" max. 6 bars |
| Dosing system (option) |
Qdoser ECO |
Content may be subject to modifications or corrections
Qdoser ECO
Qdoser ECO is a fully automatic dosing system that is well-suited for use with the Qpol 250 A1 ECO series of automatic grinders. Four 500 mL glass bottles fitted with screw caps can hold 4x Dia-Complete or 1x lubricant, and 3x suspension, and are filled through a separate lid. The glass bottles are easily removed for cleaning.
The dosing nozzles are placed into a holder connected to the head. The dosing interval of the Qpol 250 A1 ECO devices are controlled via the touch screen and software. The hoses are kept clean by the backflushing function.
- Reverse rinsing function
- Dosing interval can be adjusted
- Automatic dosing unit meant for 3x diamond suspension and 4x Dia-Complete or 1x lubricant
- Regulated by the control software equipped in the Qpol 250 A1 ECO grinders/polishers
- Suspension containers can be refilled and removed
- Suitable for all Qpol 250 A1 ECO grinders/polishers
- Includes dosing nozzles (integrated into a holder fixed to the head)
