Automatic Wet Abrasive Cut-Off Machine: Qcut 350 A

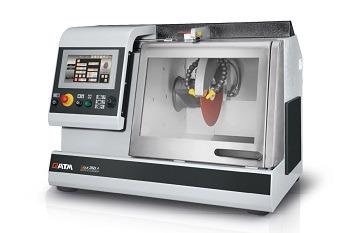

The Qcut 350 A from ATM is an automatic wet abrasive cut-off machine for samples up to a maximum Ø 135 mm. Because of its low contact cutting (lcc) function, it smoothly cuts different types of samples of various sizes, geometries, and materials.

The cut-off machine is typically used in metallography, mineralogy, materialography, as well as for the cutting of composite materials (MMC/CFC/PMC) or electronic devices such as PCBs.

The machine’s large cutting chamber and stainless steel table allow easy and flexible operation. A number of software-based features, such as multi-position process, automatic touch detection, and parallel setting of the wheel guard during vertical cutting further improve the reproducibility of the cutting processes.

Product Advantages

  • Manual vertical movement
  • Manual or automatic horizontal movement (depends on equipment)
  • Electronic control of cutting force
  • Electronic cutting force limiter
  • Electronic control of distance (depends on equipment)
  • Wide range of different clamping tools and systems available
  • Memory for saving programs (depends on equipment)

Features

Cutting wheel up to Ø 356 mm/14"
Maximum cutting capacity Ø 135 mm
Wheel flange size Ø 32 mm
X-axis automatic 260 mm
Y-axis automatic 180 mm
Z-axis automatic (option) 140 mm
Precision Z-axis 0.1 mm
Table without Z-axis WxD 400 x 300 mm, stainless
Table with Z-axis WxD 500 x 300 mm, stainless
T-slot 12 mm
Speed variable 800-3400 rpm
Connection power 9.5 kVA
Drive power (main drive) 4 kW S1; 5.5 kW S3
W x H x D 1015 x 760 x 810 mm
Weight ~ 200 kg (depends on equipment)
