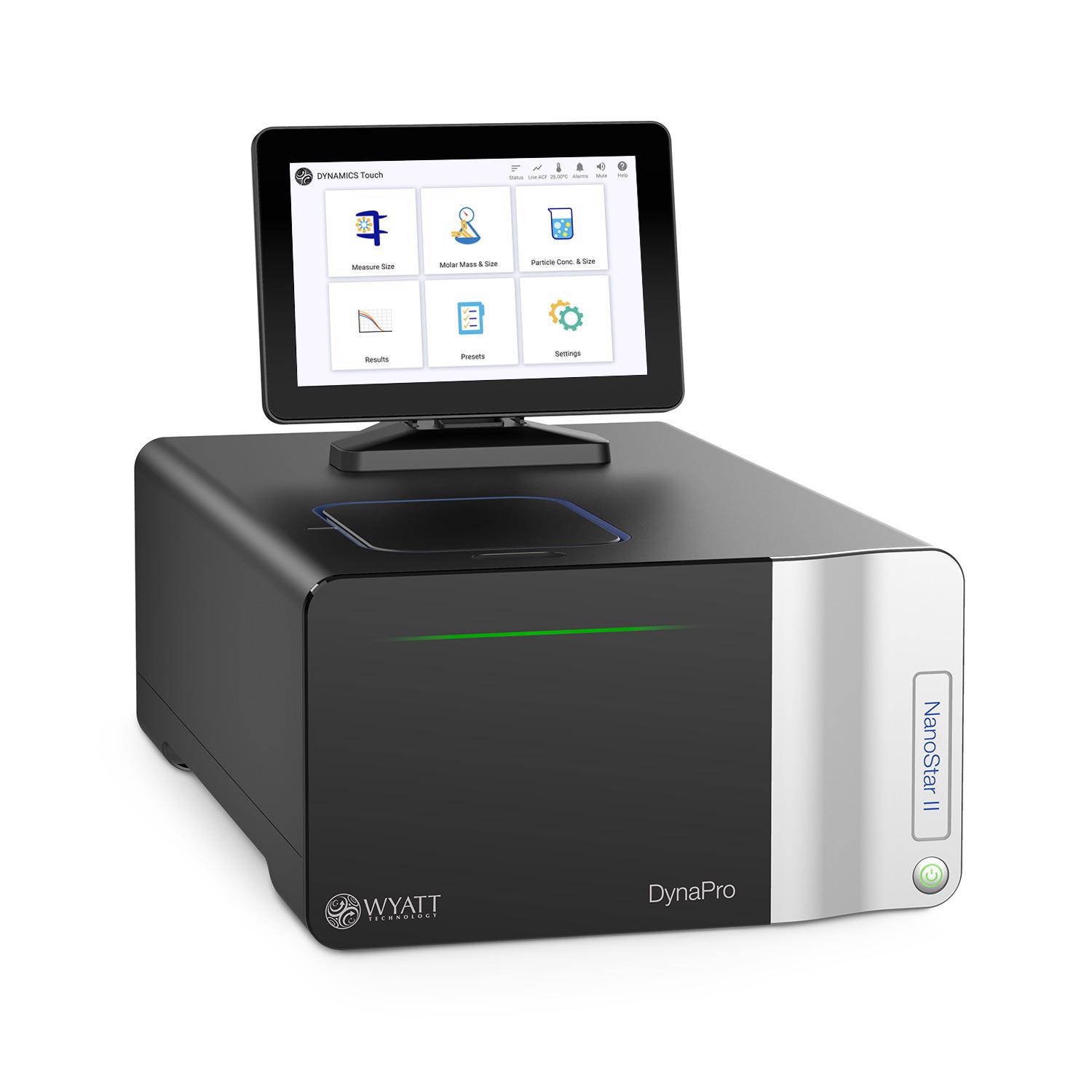

DynaPro NanoStar II Dynamic Light Scattering Detector

The DynaPro® NanoStar II® is a cuvette-based dynamic light scattering (DLS) instrument used for the analysis of the size and size distributions of peptides, proteins, polymers, viruses, nanoparticles and emulsions. A separate, optimized static light scattering (SLS) channel offers true particle concentration and molar mass measurements.

Offering walk-up, guided operation so even novices can make quality measurements in just seconds, the NanoStar II is among the most sensitive, robust, and reliable DLS detectors available with powerful software that experts will appreciate.

Specifications

Detection Channels

  • Dynamic Light Scattering
  • Static Light Scattering

Performance

  • Size Range Rh by DLS: 0.2 to 100 nm
  • Molar Mass Range by SLS: 300 Da to 1 MDa
  • Particle Concentration Range: 1x105 to 1x1015 mL-1 (dependent on size)
  • Sensitivity: 0.1 mg/mL of 14.4 kDa lysozyme in PBS

Temperature Range

  • 10 ºC to +120 ºC (0 ºC to 80 ºC with disposable cuvettes)
  • Maximum ramp rate 15 ºC/min; Stability: ± 0.01 ºC

Sample Options

Sample Cells:

  • Quartz 2 µL or 45 µL cuvettes, Disposable 4 µL cuvette (cyclic olefin copolymer)
  • Generic 4 mL quartz and disposable cuvettes (with adapter

Minimum Sample Volume:

  • Cuvettes (with adapter) Minimum Sample 2 µL in quartz cuvette
  • 4 µL in disposable cuvette

Optics

  • Laser Wavelength: 658 nm
  • Laser Power Control: Programmable 10% to 100%
  • Scattering Angle: 90º
  • Optical Fiber: Multi-mode
  • Additional Detectors:
    Laser monitor for active stabilization
    - Forward monitor measures transmitted light for turbidance and laser/cell diagnostics

Electronics

  • Data Acquisition Time: 1 to 3600 sec
  • Correlator: 512 channel, 100 nsec sampling time in a multi-tau layout

Dimensions

  • 57 cm (L) x 36 cm (W) x 20 cm (H)
