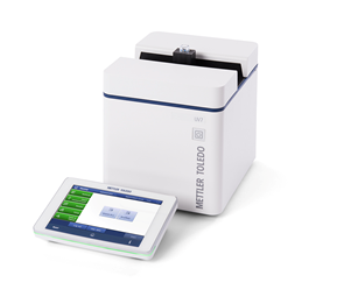

Spectrophotometer UV7 from Mettler Toledo

FastTrack™ UV/VIS Spectroscopy. The UV7 provides superior optical performance compliant with strict Pharmacopeia regulations, advanced automation routines and pre-verified methods that are ideal for reliable measurements within regulated industries.

Excellence Performance

The FastTrack™ technology of UV7 available from Mettler Toledo guarantees superior optical performance. The optional CertiRef™ module ensures automated performance verification.

Simple One Click™ operation

The wide color touchscreen includes an intuitive One Click™ interface. All users have their home screen, allowing daily tasks to be performed with just one click.

Measurements Within Seconds

Advanced fiber optics is combined with a Xenon flash lamp and CCD array detector, thus enabling a complete spectrum scan within just 1 second.

Specifications

Source: Mettler Toledo

. .
Wavelength Range (nm) 190 nm - 1,100 nm
Photometric accuracy (K2Cr2O7) ±0.01A
Wavelength accuracy ±0.8nm
Resolution (Toluene in hexane) >1.9
Stray light (KCl, 198nm) >2
Options Printer; Cuvettes; Barcode Reader; Fingerprint Reader; CuvetteChanger; FillPalMini; CertiRef; LabX PC Software
Shortcuts per user 24
Max. Number of Methods 100
User Identification yes
Languages Chinese; English; French; German; Italian; Portuguese; Russian; Spanish; Japanese
Minimal Scan time 1 s
Display 7 inch QVGA Color TFT touch sensitive screen
Displayed Resolution 800x400
Dimensions (DxHxW) 10.04 in x 8.98 in x 8.19 in (255 mm x 228 mm x 208 mm)
Weight (incl. Terminal) 6.4 kg
Material Number(s) 30254726



Pharmacopeia Compliance

The optical performance completely fulfills the requirements of Pharmacopeia regulations (USP, Ph. Eur.).

Open Sample Area

The open sample compartment enables simple and quick handling of samples. Accessories such as holders can be installed easily.

Clean Up the Lab Bench

The concise layout of optical components enables a remarkably compact footprint. It is possible to run the instrument as a standalone without using a PC.

Keep Control of All Costs

The instrument is simple to maintain and strong as there are no moving parts in the optical configuration.

Ready to Use

Once shipped, the instrument is readily available for instant use. The Xenon flash lamp does not need any warm-up time; thus, users can just power it up and start the measurements.
