METTLER TOLEDO manual mass comparators guarantee top measurement performance and full traceability of weighing results.

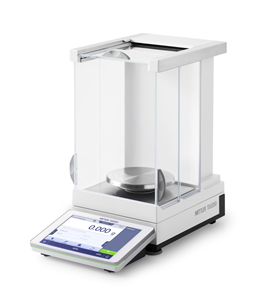

METTLER TOLEDO’s XPR2004SC is a manual mass comparator that allows efficient and traceable calibration. It includes features like built-in ProFACT adjustment, an XPR terminal, a LevelMatic weighing pan, and the MC Link mass calibration software. The XPR2004SC comparator has a capacity of 2,300 g and a readability of 0.1 mg.
Unparalleled Precision
The novel LevelMatic weighing pan prevents corner load error, which boosts the precision of users’ weighing results.
One-click Certificate
All weight calibration data are automatically stored in a secure database by the MC Link software. Calibration certificates can be generated at the click of a button.
Secure Data Transfer
The built-in LAN and USB interfaces make it easy to link it to a network or computer. Fast, secure, and error-free data transfer is ensured with the MC Link software.
Specifications
Source: METTLER TOLEDO
| . |
. |
| Maximum Capacity |
2.3 kg |
| Readability |
0.1 mg |
| Repeatability (Nominal Load) |
0.6 mg |
| Repeatability (typical) |
0.3 mg |
| Repeatability ABA at Nominal Load |
0.25 mg |
| Repeatability ABA at Low Load |
0.1 mg |
| OIML Class |
E1; E2; F1; F2; M1; M2; M3 |
| Software |
MC Link 2 Mass Calibration Software Included |
| Adjustment |
Internal / ProFACT |
| Battery operation |
No |
| Capacity |
2,300 g |
| Display |
7" color TFT touchscreen |
| Guaranteed Repeatability |
0.6 mg |
| Linearity |
1 mg |
| Minimum Weight (USP, 0.1%, typical) |
600 mg |
| Preferred model |
Top Performance |
| Readability |
0.1 mg |
| Settling Time |
3.5 s |
| Terminal size |
7 inch |
| User management / Audit Trail |
Yes |
| Weighing Pan Diameter |
130 mm |
| Material Number(s) |
30317628 |
Effortlessly Compliant
Advanced monitoring of metrology-relevant parameters within the MC Link software helps users to ensure that their results fulfill regulatory requirements.
