What is an Epoxy?

An epoxy is a thermosetting polymer that, when formulated correctly, can offer exceptional thermal resistance and dielectric behavior. "Epoxy" may be used as a general term to describe the uncured or cured resin, as well as its components and constituents.

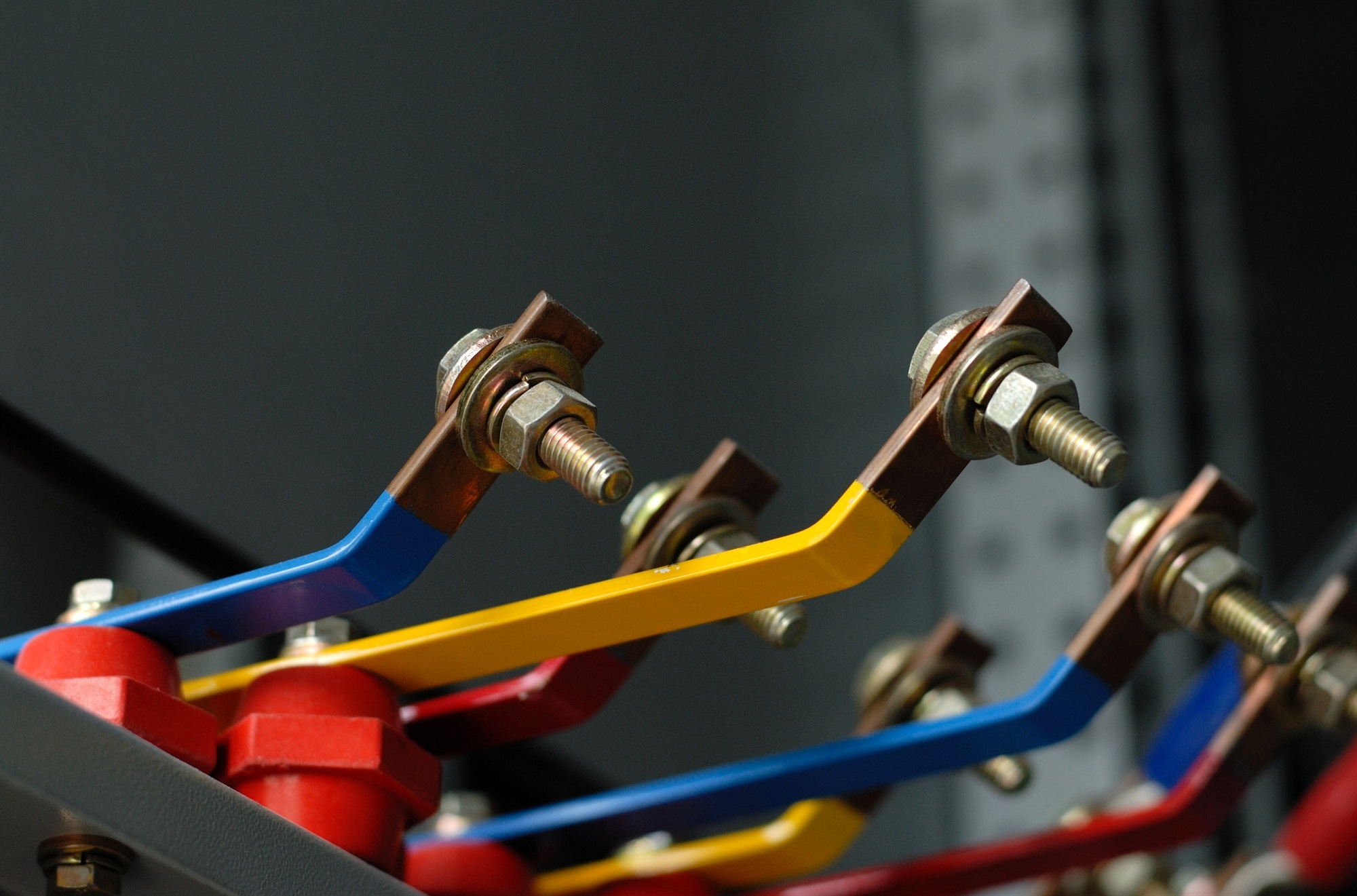

Image Credit: CABB Group GmbH

An epoxy resin is a thermosetting prepolymer consisting of epoxide and other functional groups. Epoxy resins can be cross-linked or homopolymerized into a three-dimensional network by utilizing curatives.

A wide range of curatives are offered for thermal or ambient curing. Examples include amines, polyfunctional acids, thiols, phenols, anhydrides and alcohols. They are frequently called curing hardeners or agents.

Types of epoxy resin include cycloaliphatics with saturated ring structures, those based on the Diglycidyl ether of Bisphenol A (DGEBA), tetrafunctional epoxies like Tetraglycidyl-4,4′-diaminodiphenyl methane (TGDDM), and epoxy novolaks based on formaldehyde and phenol.

Various grades of epoxy resin can be combined to attain the target properties or to decrease total costs.

EEW is the Epoxy Equivalent Weight, describing the weight of resin in grams that hold the equivalent of one epoxy group. EEW relies upon molecular weight and is beneficial for identifying the concentrations of curing agents.

The widespread rule is that the amount of curative decreases as EEW increases. This can additionally be expressed by stoichiometry, where molar ratios are used to determine the necessary amount of curative and epoxy.

While stoichiometry can be employed as a guide to establish curative dosing, it is important to note that empirically calculated lower levels are normally used for anhydrides to achieve the best results.

Epoxy Applications

Epoxies thermally cured with dianhydrides can be utilized for a host of applications.

Epoxy ahesives are known for their tenacious bonding capabilities, and have been employed in the aerospace and automotive industries. Solvent-free epoxy adhesives exhibit durability, thermal- and chemical-resistance.

Epoxy coating powders are ideal for electrical components where long term insulation under thermal and corrosive environments is required.  Examples include bus bars, wire enamels and varnishes, and encapsulants.

Filled epoxy castings can be mass-poured with reduced exotherms, allowing for the fabrication of large parts including insulators for electric power lines.

Epoxy composites including filament-wound tanks and pultruded shapes exhibit dimensional stability under high heat conditions.

Solutions from CABB

CABB has an extensive history in developing and manufacturing dianhydrides as thermal curatives for epoxy resins.

JAYHAWK BTDA® (Benzophenone tetracarboxylic dianhydride) serves as its flagship product.

This information has been sourced, reviewed and adapted from materials provided by CABB Group GmbH and Nexam Chemical AB.

For more information on this source, please visit CABB.
