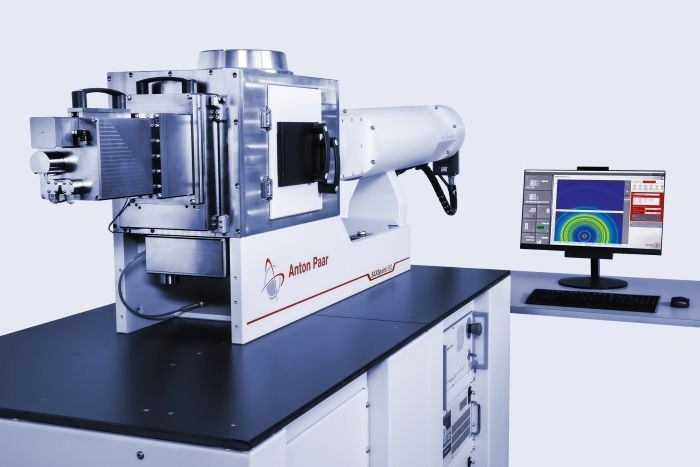

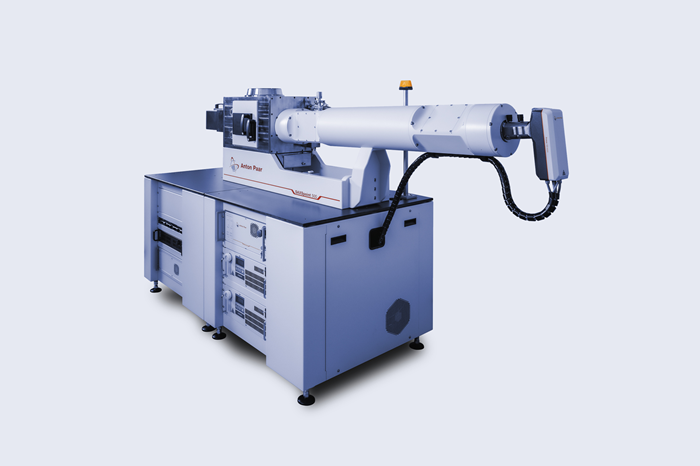

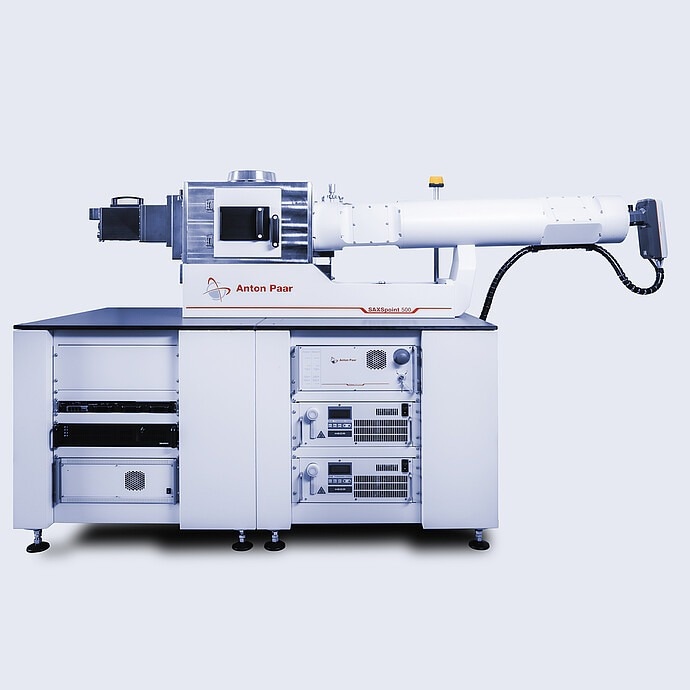

The SAXSpoint 500 is built to handle challenging samples and analyze structures up to 300 nm, thanks to cutting-edge X-ray technology and a top-tier beam delivery system. With automated workflows powered by SAXSdrive™ and SAXSanalysis™ software, you can generate high-quality 1D and 2D SAXS data with ease, and switch between samples effortlessly.
Plus, wherever you are, you’ll have access to a global support network ready to assist when you need it.
- Accelerate analysis and ensure quality with error-eliminating automation.
- Benefit from a global support network and a three-year warranty.
- Brilliant results, thanks to the best-in-class beam delivery system.
- Investigate the porosity, orientation, size, shape, structure, and crystallinity of nanostructures.
- Obtain useful results thanks to powerful analysis software.
Image Credit: Anton Paar GmbH
Key Features
2D SAXS: Pure Brilliance
Handle your samples with the help of a best-in-class beam delivery system. With a brilliant X-ray beam offering over 99.9 % spectral purity (Cu Kα) and scatterless beam collimation, users can achieve synchrotron-like 1D and 2D SAXS data quality, including SAXS, WAXS, and GISAXS, with minimal experimental effort and short exposure times.
This SAXS system combines a powerful optical setup with a compact footprint (2.7 m x 0.9 m), enabling resolution of structures up to 300 nm.
Image Credit: Anton Paar GmbH
Flexibility for the Experiments

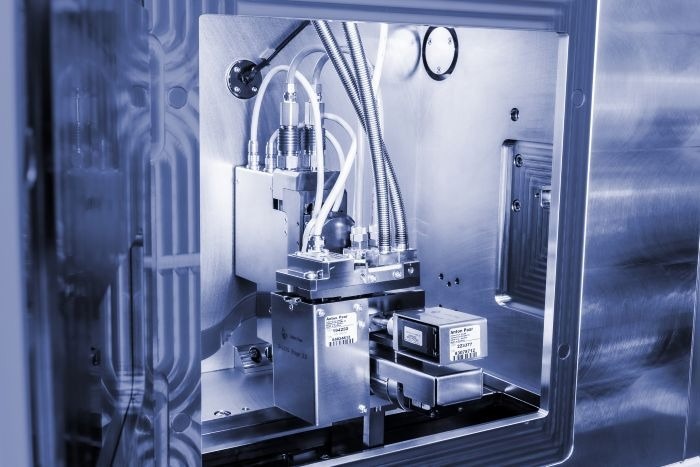

Customize your system to handle a variety of samples with a wide selection of stages designed specifically for SAXS applications. Analyze nearly any nanostructured material, and switch seamlessly between sample stages thanks to automatically aligned components.
The available options include the TCStage for temperature-controlled measurements, the GISAXS stage for grazing-incidence analysis, and more.
Image Credit: Anton Paar GmbH
Accelerate the Processes with Automation
With all routine tasks fully automated, you can speed up measurement workflows while SAXSdrive software handles the alignment of X-ray components and sample stages, reducing the risk of human error, even in complex SAXS experiments.

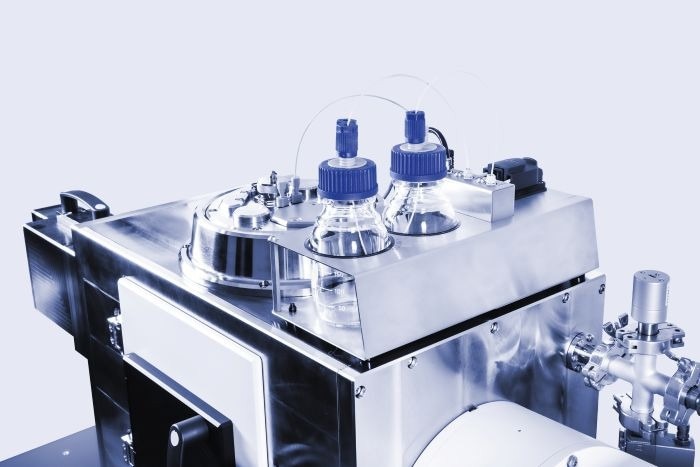

Boost sample throughput with the low-volume autosampler, which accommodates up to 192 samples, and keep them in optimal condition using the temperature-controlled well plate compartment.
Image Credit: Anton Paar GmbH
Powerful Software
SAXSdrive™ and SAXSanalysis™ software streamline routine tasks, such as temperature scans and time-dependent studies, so you can run experiments while focusing on higher-priority work. With a free, lifetime update policy, you’ll continue to benefit from ongoing software improvements.
Use customizable templates to analyze your 1D and 2D SAXS data, and calculate key parameters including radius of gyration (Rg), particle size, Porod constant, specific surface area, and Kratky plots. Export your data in all major formats for further analysis. SAXSanalysis also ensures compliance with industry standards, including ISO 20804.
Image Credit: Anton Paar GmbH
Support When Users Need It
Get the most out of your investment with Anton Paar’s standard three-year warranty. You’ll also benefit from a global support network that helps ensure maximum uptime. With subsidiaries worldwide, expert advice and on-site assistance are always within reach. The company's application specialists are always on hand to help with any measurement challenges you may face.
Strict quality management, standardized procedures like acceptance tests, and certified service personnel ensure fast response times, full service traceability, and consistently high service quality.
Image Credit: Anton Paar GmbH
Specifications
Source: Anton Paar GmbH
| |
|
| X-ray source |

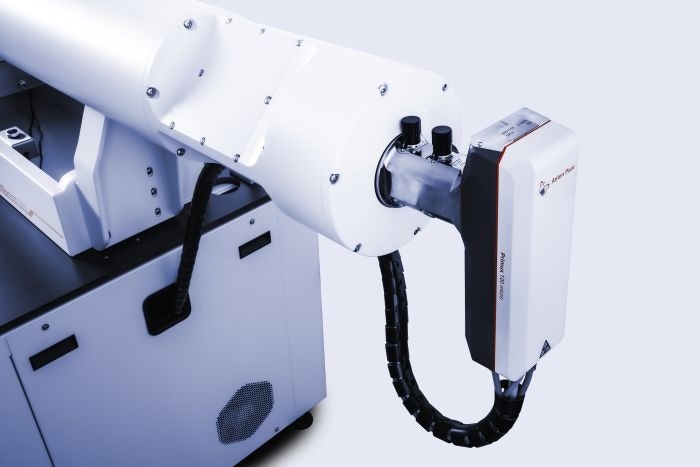

Primux 100 micro microfocus X-ray source (Cu, Mo; other target materials on request) |
| X-ray optics and collimation |
- Custom-designed AXO ASTIX/ASTIX++ optics (fully evacuated)
- Automated scatterless beam collimation (fully evacuated)
|
| Sample stages and autosamplers |
- TCStage temperature-controlled stages (-150 °C to 500 °C)
- GISAXS stage with heating/cooling option (-150 °C to 500 °C)
- Temperature-controlled autosamplers for multiple samples (-150 °C to 350 °C)
- Low volume autosampler for up to 192 liquid samples, at volumes down to 5 mL
- ASX autosamplers for up to 192 liquid samples
- Shear Cell
Customized solutions are available on request. |
| Special features |
- TrueFocus: automatic self-alignment
- TrueSWAXS: continuous and simultaneous SWAXS studies
- Stagemaster: XYZ stage with auto-recognition of sample stages
- Optional high-performance optics providing an X-ray flux of >6 x 108 ph/s
|
| Temperature range |
-150 °C to +500 °C |
| Temperature accuracy |
±0.1 °C |
| Atmosphere |
Vacuum, inert gas, humidity (reactive gases on request) |
| Sample holders |
- Quartz capillary for liquids
- Low-parasitic SiN cell
- Sample holder for solids
- PasteCell for viscous and powder samples
- RotorCell for sample spinning
- μ-Cell for small sample volumes
- FlowCell and TubeCell for automation
- Holders for multiple samples
- Multicuvette holder
- UV-Vis cell
Customized solutions are vailable on request. |
| Detectors |
2D EIGER2 R and PILATUS4 R series HPC detectors |
| Accessible q-range |
0.02 nm-1 to 43 nm-1 (main detector) |
| Software |
- SAXSdrive™ measurement and acquisition software
- SAXSanalysis™ data processing and analysis software
|
| Footprint |
2.7 m x 0.9 m (L x W) |
