In semiconductor manufacturing, not all defects cause immediate failure. Many devices pass electrical inspection and testing, yet they do not show electrical problems until months or even years of use. These failures are often linked to latent defects, imperfections introduced during production or assembly that remain electrically inactive until subjected to long-term operational stress.

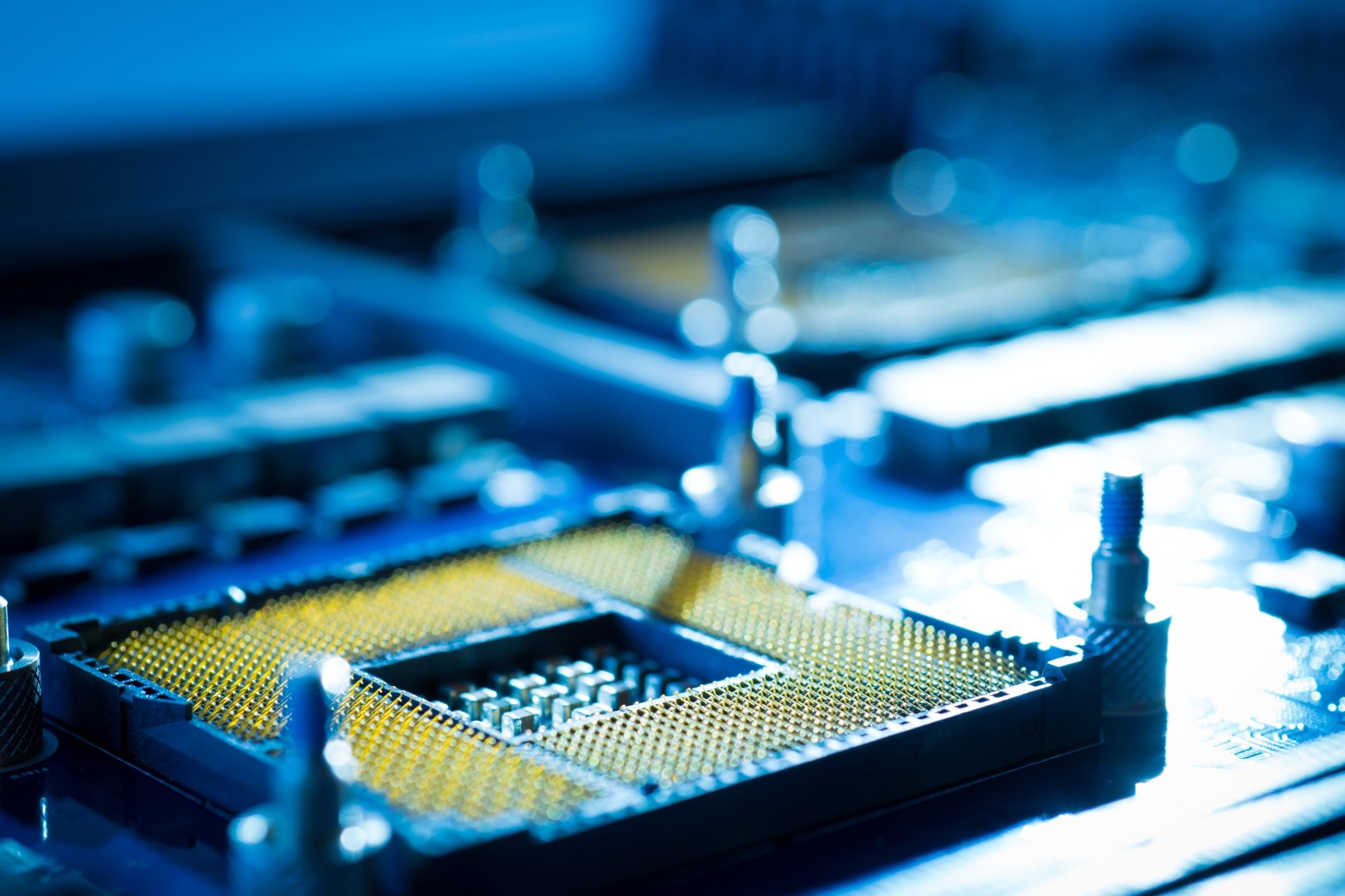

Image Credit: aPhoenix photographer/Shutterstock.com
Within the context of semiconductor inspection and failure analysis, latent defects present a significant challenge because they make it difficult to determine whether a fault originated during manufacturing or developed later through normal wear.
Latent defects can take several forms, including microscopic structural irregularities, contamination, incomplete material interfaces, or subcritical dielectric damage. Initially, these imperfections may remain within functional limits or specification thresholds, allowing affected devices to pass production tests. Over time, however, sustained electrical, thermal, or mechanical stress can cause these small irregularities to evolve into sites of failure.
The increasing complexity of semiconductor architectures, combined with aggressive device scaling and advanced packaging technologies, has made identifying latent defects more difficult. As device dimensions shrink, tolerance margins narrow, meaning even relatively small imperfections can influence long-term reliability behavior.
Save this PDF for later by downloading it here.
What Makes Latent Defects Difficult to Detect?
Traditional inspection and test methods are designed to detect defects that produce immediate electrical or physical anomalies. Techniques such as parametric testing, optical inspection, and burn-in screening focus on identifying devices that fail to meet specification limits during manufacturing. Latent defects, however, often remain below detection thresholds or require extended stress exposure before they become electrically observable.
A key reason these defects escape detection is that many degradation mechanisms develop gradually over time. Processes such as charge trapping, diffusion, and material fatigue evolve slowly, meaning early-stage defects may appear benign. Manufacturing variability can further obscure marginal structures, particularly when statistical process control allows a range of acceptable parameters. As a result, short-duration screening tests cannot reproduce the combined stresses experienced during real-world operation.
Detection is also constrained by inspection resolution. As semiconductor features approach nanoscale dimensions, identifying sub-surface or interface defects becomes increasingly difficult without advanced analytical techniques. Even when sophisticated imaging tools are available, the subtle nature of latent defects means they may not be easily distinguished from normal process variation.
The Evolution of Delayed Failures Under Operational Stress
Although latent defects may remain undetected during manufacturing, their impact often becomes apparent once devices enter operation. During normal use, semiconductor devices are exposed to electrical, thermal, and mechanical stresses that can gradually drive degradation and eventually lead to failure.
One major mechanism is electromigration, where sustained current flow causes atomic diffusion within metal interconnects. Pre-existing microstructural irregularities can accelerate void formation, increasing electrical resistance and ultimately leading to open circuits. Hence, illustrating how a latent defect contributes to delayed failures.1
Dielectric degradation represents another common pathway. Subcritical defects within insulating layers can accumulate charge trapping over time, progressively weakening dielectric integrity until breakdown occurs. Time-dependent dielectric breakdown and bias temperature instability are well-known examples in which long-term electrical stress causes initially acceptable structures to evolve into failure sites.2
Thermomechanical stress also plays a significant role. Differences in coefficients of thermal expansion between materials introduce repeated mechanical strain during temperature cycling in normal operation. Under these conditions, latent cracks or weak bonding interfaces may gradually grow through fatigue processes, eventually leading to delamination or structural failure.3
Environmental exposure can further accelerate degradation. Moisture in combination with electrical bias may cause corrosion and electrochemical migration, creating conductive paths over time.4
These mechanisms demonstrate that delayed failures are rarely caused by a single event. Instead, they arise from cumulative interactions between pre-existing defects and ongoing operational stress conditions.
Implications for Inspection and Failure Analysis
Because latent defects may appear far removed from their origin, reconstructing the sequence of events leading to failure becomes a central task in failure analysis. Analysts typically rely on a combination of electrical data, physical inspection, and materials analysis to rebuild the failure timeline.
This process is rarely straightforward.
Catastrophic breakdown often produces secondary damage that can obscure the initiating defect, making root cause determination particularly challenging. To distinguish primary defects from later damage, device history, stress exposure, and failure signatures must therefore be considered together.
The unpredictable timing of delayed failures adds to the difficulty. Failures may occur months or years after manufacturing, and their frequency often depends on operating conditions. Without accounting for differences in exposure or workload, statistical assessments can become misleading. As a result, traditional pass/fail screening methods are increasingly limited in their ability to identify latent reliability risks.
Addressing this challenge requires inspection approaches that extend beyond simple defect detection. Reliability physics must be considered alongside inspection data to understand how marginal structures evolve under operational stress. This perspective also encourages closer collaboration between design, process, and reliability teams, since subtle degradation mechanisms often reflect interactions between design choices and manufacturing conditions.
Modern inspection strategies, therefore, combine high-resolution analytical techniques with modelling approaches that track defect evolution over time.
Tools capable of detecting nanoscale structural and chemical anomalies allow engineers to identify potential reliability risks earlier in the process. When these observations are correlated with manufacturing parameters and long-term reliability behavior, weak process windows can be identified and mitigated through improved safeguards. Strengthening contamination control, refining material interfaces and improving monitoring practices can further reduce the formation of latent defects.
Conclusion
Within the broader scope of semiconductor inspection and failure analysis, understanding latent defects increasingly depends on methods that capture how defects evolve over time rather than relying solely on static inspection.
Dynamic testing and long-term reliability evaluation allow analysts to observe how initially acceptable structures degrade under operational stress.
As semiconductor technologies continue to scale and device architectures become more complex, the ability to identify and manage latent defects will remain central to achieving reliable device performance. Advances in in-line metrology, data analytics and machine learning are beginning to support this effort by helping engineers detect early indicators of reliability risks before failures appear in the field.
References and Further Reading
- Zhao, W.-S., et al. (2022). Recent progress in physics-based modeling of electromigration in integrated circuit interconnects. Micromachines, 13(6), 883. DOI:10.3390/mi13060883, https://www.mdpi.com/2072-666X/13/6/883
- Stathis, J. H., & Zafar, S. (2006). The negative bias temperature instability in MOS devices: A review. Microelectronics Reliability, 46(2–4), 270–286. DOI:10.1016/j.microrel.2005.10.006, https://www.sciencedirect.com/science/article/doi/10.1016/j.microrel.2005.10.006
- Evans, J.W., et al. (1998). Thermomechanical failures in microelectronic interconnects. Microelectronics Reliability, 38(4), 523-529. DOI:10.1016/S0026-2714(97)00226-6, https://www.sciencedirect.com/science/article/doi/10.1016/S0026-2714(97)00226-6
- Zhang, H., et al. (2026). Mechanisms of electrochemical migration in damp-heat and dew-condensation environments of chip resistors. Microelectronics Reliability, 176, 115958. DOI:10.1016/j.microrel.2025.115958, https://www.sciencedirect.com/science/article/doi/10.1016/j.microrel.2025.115958
