Characterization of Grain Boundaries in Metals and Alloys Using Instruments

The functional properties of many metals and alloys are determined by the chemical and/or morphological distribution of the crystallographic grains in the material. The properties of the regions where grains come together (grain boundaries) often determine the formation, evolution, and stabilization (or dissolution) of the grains and as such, characterization of grain boundaries (GB) is of critical importance in materials studies.

Grain Boundary Analysis in Steel

Although focused ion beam (FIB) methods have previously been employed to prepare samples for atom probe tomography from materials containing grain boundaries, standard FIB sharpening methods have been combined with a FIB lift-out methodology.

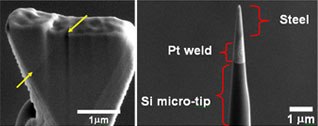

A wedge of material containing a grain boundary is removed from the sample such that the grain boundary is running along the long side of the wedge. It is clearly visible from a side view (denoted in the image on the left by arrows.) Small pieces of the wedge are attached to multiple tips on microtip coupon™ carriers. Multiple specimens containing the same GB may be fabricated in this fashion, each being sharpened to the required final radius using annular FIB milling.

Example carbon atom maps from two different analyses of the steel are displayed on the right. Only the positions of carbon atoms are shown, remaining atoms are removed for clarity. The field of view was >150nm in diameter with the grain boundary clearly contained in the field of view of the analyses.

Grain Boundary Segregation in a Ni-Mn Alloy

Mn addition significantly improves the thermal stability of electrodeposited Ni films both by segregating to grain boundaries and forming second-phase particles that impede grain boundary mobility. As an illustration, this 3D reconstruction from an electrodeposited Ni-Mn alloy annealed at 600°C for 1 hour, shows C segregation at a grain boundary and the presence of a Mn-rich precipitate.

Data obtained by Emmanuelle Marquis of Sandia National Laboratories using the CAMECA LEAP 3000.

This information has been sourced, reviewed and adapted from materials provided by CAMECA SAS.

For more information on this source, please visit CAMECA SAS.
