Precision PCB Carriers from Formagrind

PCB carriers are generally designed either as fixed or adjustable arrangements from both conductive and non-conductive plastic and designed so as to handle different sizes of PCB’s. The carriers are mostly designed based on gerber formats or other file formats as specified by the customer. Gerber format may be termed as a family of file formats which is used by the PCB software to clearly describe the images of a PCB such as solder mask, legend, copper layers etc. This is the de-facto industry standard for PCB image transfer.

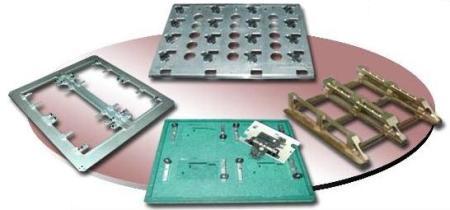

Formagrind’s PCB Carriers

Accurate PCB holders are designed and manufactured by Formagrind using customer Gerber data or other electronic formats or just by PCB supply.


Formagrind manufactures single or multi aperture PCB carriers for the following applications:

  • Auto-insertion
  • Surface mountwave solder
  • Selective soldering
  • Conformal coating
  • Assembly inspection

About Formagrind

Formagrind are manufacturers of high precision tooling to the World's most demanding industries since 1983.

Through the use of advanced materials, modern manufacturing equipment and engineering know how, Formagrind work with our customers to develop production improvements that realise financial gains.

This information has been sourced, reviewed and adapted from materials provided by Formagrind.

For more information on this source, please visit Formagrind
