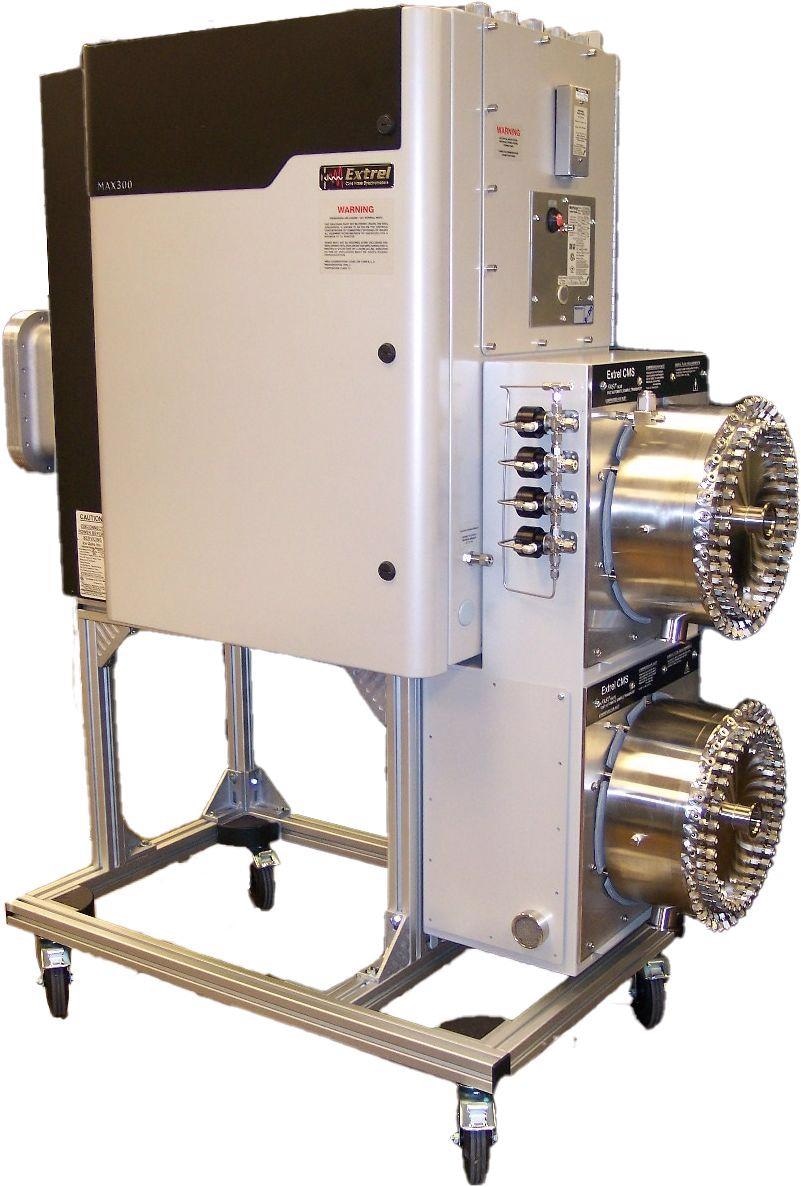

MAX300-AIR Environmental Mass Spectrometer for Industrial Gas Analysis

The MAX300-AIR is an advanced industrial gas analyzer specifically developed for environmental monitoring and regulatory compliance. A single analyzer is capable of measuring unlimited compounds and it can be automated to track more than 160 sample points, spread across the production site.

The MAX300-AIR quadrupole mass spectrometer is fast and sensitive, making it possible to detect and measure a wide range of poisonous industrial contaminants. The system can measure total sulfur, toxic chemical release, TWA exposure values and BTU (energy content). It also allows explosive limit analysis.

Key Features

The main features of the MAX300-AIR environmental mass spectrometer are as follows:

  • ppt detection limits
  • High precision for safety and regulatory reporting
  • Quantitative analysis of separate contaminants
  • Rapid analysis time
  • Multiport sample systems for overall site monitoring
  • Minimum maintenance and calibration required

System Highlights:

  • Number of sample streams: 16, 31, 40, 80, 120, 160+
  • Detectable compounds: Any vapor or gas sample
  • Detection range: 100% - 10ppb standard, 10ppt w/ membrane inlet
  • Analysis rate: 0.4 seconds per component
  • Number of analysis routines: Unlimited
  • Number of components: Unlimited
  • Number of user configurable data tags: Unlimited
  • Analysis precision: ±0.0025 absolute
  • Stability: ±0.05 absolute over 30 days
  • Filaments: Two - one active and one spare with automatic switchover
  • Minimum maintenance with manual or fully automated calibration and validation
  • 19mm high-transmission quadrupole filter
  • Mass range options: 1-200, 300, 500 amu


The MAX300-AIR environmental mass spectrometer can be used in the following industrial sites:

  • Pharmaceutical solvents
  • Polymers
  • Petrochemical
  • Specialty chemicals
  • Pesticides and herbicides
