The Hyper-Cam from Telops is a hyperspectral imaging camera (Figure 1). It facilitates generating hyperspectral maps of an area monitored from an airplane when installed on Telops’ airborne platform. This article presents the key technical specifications, features and benefits, and applications of the Hyper-Cam.
.jpg)

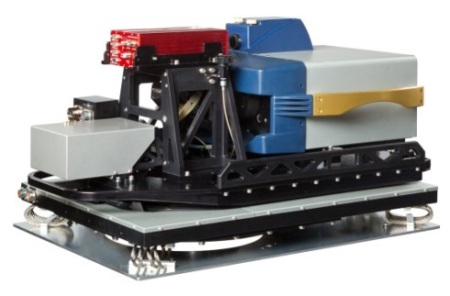

Figure 1. The Telops Hyper-Cam airborne platform
Technical Specifications
The following table summarizes the imaging characteristics, physical characteristics and electrical power of the Hyper-Cam:
| Parameter |
Description |
Units |
Value |
| IMAGING CHARACTERISTICS (USING THE HYPER-CAM) |
| Spectral range |
Midwave (MWIR) and longwave (LWIR) |
μm |
3-5 and 8-12 |
| Geolocation accuracy |
@1000 m altitude with internal GPS |
m |
5 (2*) |
| Ground pixel size @1000 m |
Standard (6.4° x 5.1°)
Using the 0.25x telescope (25° x 20°) |
m
m |
0.35
1.4 |
| Aircraft speed |
Typical cruising speed |
kn |
110 |
| Aircraft altitude from sea level |
Maximum operating altitude using unpressurized aircraft |
m |
3000 |
*High accuracy option
| Parameter |
Description |
Units |
Value |
| PHYSICAL CHARACTERISTICS |
| Mass - Airborne sensing module |
Airborne sensing module mass, excluding Hyper-Cam sensor |
kg |
77 |
| Dimensions - Airborne sensing module |
Airborne sensing module dimensions (length x width x height) |
mm x mm x mm (in x in x in) |
953 x 584 x 470 (37.5 x 23 x 18.5) |
| Airborne sensing module footprint |
Compatibility with existing aircraft aperture & fixation characteristics of analog airborne visible camera |
- |
Leica PAV Series |
| Mass-Electronic equipment rack |
Electronic equipment rack mass, including all rack mounted components |
kg |
68 |
| Dimensions -Equipment rack |
Electronic equipment rack dimensions (width x depth x height) |
mm x mm x mm (in x in x in) |
591 x 566 x 613 (23.2 x 22.3 x 24.2 |
| Operating Temperature Range |
Operating temperature range |
°C |
0 - 40 |
| Parameter |
Description |
Units |
Value |
| ELECTRICAL POWER |
|
|
| Input voltage |
Range of input voltages, available from the aircraft under which the Hyper-Cam airborne system can operate |
V |
21 - 31 VDC |
| Steady-state power consumption |
Typical Airborne module steady-state power consumption, including Hyper-Cam sensor |
W |
680 |
| Peak power consumption |
Airborne module peak power consumption, including Hyper-Cam sensor |
W |
740 |
Key Features and Benefits
The high sensitivity and outstanding signal-to-noise ratio of the Hyper-Cam enable detecting weak signals. The spectral resolution of the Hyper- Cam is flexible, thus allowing users to select any value up to 1cm-1 and thereby yielding tens to hundreds of spectral bands. Mapping and targeting are the two acquisition modes. The Hyper-Cam can be used for both ground and airborne applications. Besides yielding georeferenced data, it acquires visible images concurrently with IR hyperspectral data. The Hyper-Cam is compatible with longwave (8-12µm) and mid-wave (3-5µm) Hyper-Cam sensors.
Applications
The Hyper-Cam is used in the following applications:
- Agriculture and Vegetation Surveys – The Hyper-Cam can easily perform soil and vegetation characterization in large areas.
- Environmental Monitoring – Airborne hyperspectral data facilitate the simultaneous detection and determination of multiple substances. The Hyper-Cam Airborne is an important instrument for environmental monitoring applications, detecting pipeline leaks, and analyzing substances in urban pollution.
- Geology, Mining, and Oil and Gas Exploration – A Hyper-Cam Airborne can be used for mine face imaging to map the mineral content of a mine face and determine mineral concentrations and streaks (Figure 2). Airborne detection of natural gas leaks allows for the exploration of vast areas.
.jpg)

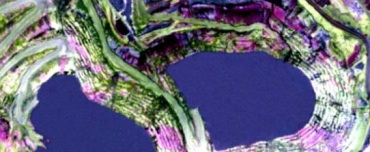

Figure 2. Identification of minerals based on their spectral features
- Target Detection, Identification and Surveillance – The Hyper-Cam Airborne is suitable for target interrogation, surveillance (Figure 3), or wide area mapping, thanks to its improved sensitivity and resolution.
.jpg)

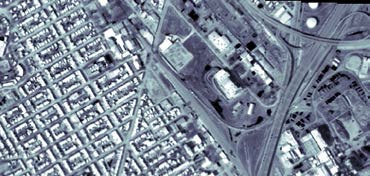

Figure 3. Surveillance of urban areas
