A limiting problem in creating energy-efficient circuits for improved memory and more powerful computers is manufacturing a transistor with reconfigurable properties. As the size of transistors becomes smaller and the need for higher data processing capabilities increases, it becomes clear that more innovative solutions are required to overcome these obstacles. A potential solution is having reconfigurable transistors made up of ferroelectrics which can change their properties even after manufacturing, allowing for flexible and efficient circuits.

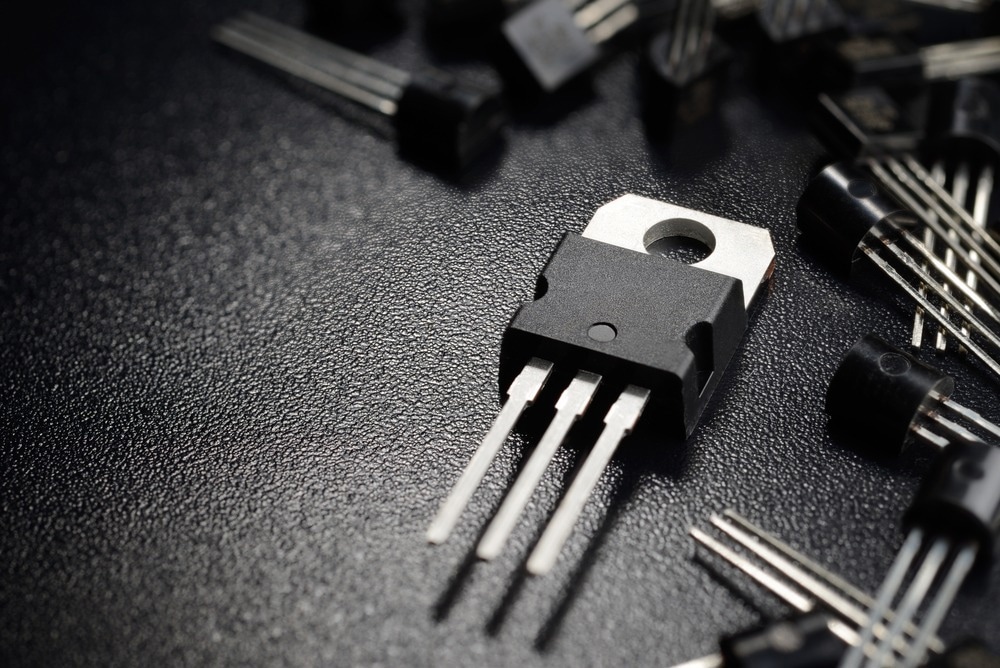

Image Credit: Andrei Kuzmik/Shutterstock.com
Tapping into the Power of Transistors
Transistors are small electrical components that, while having simple functions of letting current pass or stopping it, accomplish very complex tasks. The speed of rapidly turning on or off gives way to the processing speed in computers. These transistors are the foundations upon which modern digital technology is built.
As the technology moves forward, these transistors keep getting smaller, essentially accomplishing almost twice the performance in the same area. Roughly, this is known as Moore’s law, which dictates that, with time, smaller transistors can be placed on a board, thus increasing processing capabilities. However, as the size of transistors approaches the nanoscale, quantum mechanical effects such as leakage current and tunneling effect come into play, and electrons start behaving in ways that do not remain very predictable.
Cutting-edge semiconductor materials such as ferroelectrics play a role in this context. These remarkable substances possess an attribute called "ferroelectricity," enabling them to alter their polarization when subjected to an external electric field.
The incorporation of ferroelectrics in transistor design has the potential to bring about a shift by introducing a state beyond the conventional "On" and "Off" states. This novel characteristic introduces the concept of a state enabling enhanced data storage and processing capabilities, ultimately resulting in efficient and adaptable transistors, as well as the birth of neuromorphic circuits for mimicking human-brain synapses in a computer.
Ferroelectrics to the Rescue
Researchers at Lund University have recently shown how new reconfigurable transistors can be made using these astounding ferroelectrics. Using a blend of materials, scientists have developed ferroelectric "grains" that regulate an electrical tunnel junction within the transistor.
These grains are incredibly tiny, measuring 10 nanometers in size. By analyzing variations in voltage or current, they have successfully detected shifts in polarization within each grain, providing insights into how these changes impact the behavior of the transistor.
The remarkable aspect of the findings lies in the ability to generate tunnel junctions by utilizing grains positioned right next to the junction. These tiny grains can now be individually manipulated, whereas before, only collective groups of grains called ensembles could be monitored.
This breakthrough allows for the identification and control of portions within the material. Additionally, the researchers have explored how this understanding can be applied to create reconfigurable applications by manipulating the signal that passes through the transistor in ways.
Enter Ferroelectric Tunnel Field-effect Transistors (Ferro-TFET)
Picture this - reconfigurability, a smaller footprint, and reduced supply voltage, all harmoniously working together to deliver a signal modulation spectacle like never before. A symphony of efficiency and versatility, all in a single transistor.
Recently, in a captivating exposition, researchers embarked on a journey to unveil the groundbreaking capabilities of a single vertical nanowire ferroelectric tunnel field-effect transistor (ferro-TFET). This remarkable creation published in Nature Communications not only boasts the ability to modulate input signals but also showcases a mesmerizing array of diverse modes, including signal transmission, phase shift, frequency doubling, and seamless mixing with a conspicuous suppression of undesired harmonics - a true marvel tailor-made for reconfigurable analog applications.
At the core of this awe-inspiring breakthrough lies a novel heterostructure design, a feat of ingenuity that places a gate and source in the delightful overlap. The result? A nearly perfect parabolic transfer characteristic, charmingly adorned with robust negative transconductance.
Furthermore, a ferroelectric gate oxide introduces a non-volatile reconfigurability to this ferro-TFET, thus, resulting in a stunning ensemble of high-density, energy-efficient, and multifunctional digital/analog hybrid circuits.
Single Domain Dynamics & Defects – An Achilles Heel to Scaled Ferroelectrics
Diving into the realm of cutting-edge technology, the quest for ultra-scaled ferroelectrics emerges as the holy grail for high-density nonvolatile memories and next-gen neuromorphic computing. But, here's the catch - to tackle advanced applications, we must unravel the enigmatic mysteries of single-domain dynamics and the elusive behavior of defects, all within those scaled ferroelectrics.
One such study was published in Applied Sciences and Engineering, which ventured into the groundbreaking integration of a ferroelectric gate stack onto a heterostructure tunnel field-effect transistor (TFET) boasting sub-thermionic operation. Without physical gate-length scaling required for conventional transistors, the localized potential variations induced by single domains and individual defects were sensed based on the ultrashort effective channel created by the band-to-band tunneling process.
It was shown by the scientists that ferroelectric films could be integrated into heterostructure devices and that the opportunity for ultrasensitive scale-free detection of single domains and defects in ultra-scaled ferroelectrics was provided by the intrinsic electrostatic control within ferroelectric TFETs.
This pioneering approach opens up vast opportunities for ultrasensitive detection within ultra-scaled ferroelectrics, driving us closer to the dream of high-density nonvolatile memories and cutting-edge neuromorphic computing.
The Pursuit of Progress
The enigmatic fusion of ferroelectric semiconductors and reconfigurable transistors embarks us on a journey into uncharted territory within digital electronics. As we traverse this unexplored frontier, the promise of energy-efficient transistors endowed with extraordinary adaptability becomes the clarion call of a transformative era on the horizon.
However, while the trajectory of progress unfurls with tantalizing possibilities, the road ahead remains shrouded in intriguing complexity and challenges that demand our unwavering dedication and optimism.
More from AZoM: Alternative Electrode Materials for High-Performance Batteries
References and Further Reading
ScienceDaily, (2023). Cutting-edge transistors for semiconductors of the future. [Online]
Available at: https://www.sciencedaily.com/releases/2023/07/230703133015.htm
Zhu, Z. et. al. (2023). Reconfigurable signal modulation in a ferroelectric tunnel field-effect transistor. Nature Communications. 14(1). 2530. Available at: https://doi.org/10.1038/s41467-023-38242-w
Persson A. et. al. (2023). Sensing single domains and individual defects in scaled ferroelectrics. ScienceAdvances. 9. 7098. Available at: https://www.doi.org/10.1126/sciadv.ade709
