Wear Resistant Ceramic Tubes, Rods and Pins For The Textile Industry

CeramTec North America materials are the standard for the textile industry. Tubes, rods and pins made from CeramTec North America guide materials substantially reduce costs caused by downtime.

Ceramic Tubes for the Textile Industry

Figure 3 gives examples of ceramic tubes CeramTec North America has produced. They can engineer and manufacture custom products to exacting surface, performance, and dimensional specifications. The full range of CeramTec America materials and polished is available for quick delivery.

Ceramic tube samples

Figure 1. Ceramic tube samples

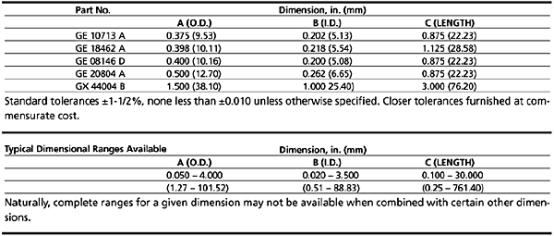

Ceramic tube dimensions

Figure 2. Ceramic tube dimensions

Examples of CeramTec ceramic tubes

Figure 3. Examples of CeramTec ceramic tubes

Ceramic Rods and Pins for the Textile Industry

Wear-resistant AlSiMag® Textile Products ceramic rods from CeramTec North America are used to direct fiber. CeramTec can engineer and manufacture custom rods and pins to exacting surface, performance and dimensional specifications. All materials described in the CeramTec material Selection Guide are available. Surface finishes range from <0.1 mm (m4in.) to 2.5 mm (m100in.). Visual specifications are as stated in CeramTec Specifications HK-1.

Ceramic rod and pin samples

Figure 4. Ceramic rod and pin samples

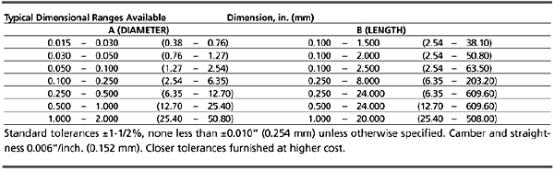

Ceramic rod and pin dimensions

Figure 5. Ceramic rod and pin dimensions

Examples of CeramTec ceramic rods and pins

Figure 6. Examples of CeramTec ceramic rods and pins

This information has been sourced, reviewed and adapted from materials provided by CeramTec.

For more information on this source, please visit CeramTec.
