Fabrication of Nanometer Scale Patterns with Polymer Langmuir-Blodgett Films

Tiesheng Li, Masaya Mitsuishi and Tokuji Miyashita



Copyright AD-TECH; licensee AZoM.com Pty Ltd.

This is an AZo Open Access Rewards System (AZo-OARS) article distributed under the terms of the AZo–OARS https://www.azom.com/oars.asp which permits unrestricted use provided the original work is properly cited but is limited to non-commercial distribution and reproduction.



AZojomo (ISSN 1833-122X) Volume 2 January 2006

Topics Covered

Abstract

Keywords

Introduction

Experimental

Results and Discussion

Formation of Copolymer LB Films

Photolithographic Properties of p(TDMA-tBVPC) LB Films

Etching Resistance

Photodecomposition of Copolymer LB Films

Conclusions

Acknowledgements

References

Contact Details

Abstract

In this paper, we investigated the photolithographic properties of poly(N-tetradecylmethacryl-amide-co-t-butyl 4-vinylphenyl carbonate) [p(TDMA-tBVPC)] thin films prepared by Langmuir-Blodgett (LB) technique.  The copolymer forms a stable monolayer on a water surface and LB films with any desired number of layers.  The copolymer has a structure being subject to the main chain scission and deprotection of t-butoxycarbonyloxy group by deep UV irradiation.  The positive-tone patterns of the p(TDMA-tBVPC56) LB film with 60 layers could be obtained by deep UV irradiation followed by development with alkaline aqueous solution.  The resolution of the pattern was 0.75 μm, which is the resolution limit of the photomask employed.  The etching resistance of p(TDMA-tBVPC56) LB film was also investigated permitting etching of the gold film.

Keywords

Langmuir-Blodgett films, Copolymer, Photolithography, Etching

Introduction

The continuing trend toward higher circuit density in microelectronic devices has motivated research efforts in varieties of high-resolution lithography techniques, including electron beam (EB), X-ray, and deep UV irradiation.  Use of ultra-thin films and new materials have been proposed as approaches to improve resolution in lithography.  The Langmuir-Blodgett (LB) technique is very effective method used to prepare well-defined ultra-thin film with controlled thickness and orientation at a molecular level.  Therefore, LB films are expected to realize ultra-high resolution photolithography [1-4].

In previous studies, [5-7] we have found that N-octadecylacrylamide forms a uniform LB film with a highly ordered structure, and yielded a fine negative pattern by photopolymerization.  Furthermore, we have also succeeded in the preparation of preformed polymer LB film that has a cross-linking group [8].  By the cross-linking reaction with deep UV and electron beam irradiation we obtained a fine negative pattern consisting of two-dimensional network.  All of these polymer LB films resulted in negative-tone photopatterns.  On the other hand, we also obtained positive type photopatterns using poly(N-tetradecylmethacrylamide)(p(TDMA)) LB films without any development process (self-development) [9, 10].  It was found that the higher sensitivity could be obtained by changing the alkyl side chain to the short-branched type [11].  In addition, the deprotection reaction of t-butoxycarbonyloxy group has also been used in positive patterning of polymer LB films [12-14].  Combining these interesting properties, the improvement of not only the sensitivity but also the imaging quality can be expected.  In this work, we prepared the copolymers of photodegradable N-tetradecylmethacrylamide (TDMA) with t-butyl 4-vinylphenyl carbonate (tBVPC) (Figure 1) aiming at the fabrication of a new type of positive resist taking place both main chain scission and polarity change caused by t-butoxycarbonyloxy group deprotection.

AZojomo - The "AZo Journal of Materials Online" Chemical structure of p(TDMA-tBVPC)

Figure 1. Chemical structure of p(TDMA-tBVPC).

Experimental

The copolymer (p(TDMA-tBVPC)) was prepared by free-radical copolymerization of N-tetradcylmethacrylamide (TDMA) with t-butyl 4-vinylphenyl carbonate (tBVPC) in toluene at 60˚C.  Measurement of surface pressure ( π) - area (A) isotherm and deposition of monolayers were carried out at 15˚C with a Langmuir trough system (FSD-50 and 51, USI) with a compression speed of 14 cm2/min.  The rate of deposition was set at 10 mm/min at both up- and down-strokes.  Deionized pure water (Milli-QII, MILLIPORE) was used as the subphase.  The copolymer was dissolved in chloroform at a concentration of ca. 1 mM and the solution was spread on the water surface.  The glass, quartz, and silicon slides on which LB film was deposited were initially cleaned by a UV-O3 cleaner (NL-UV253, Nippon Laser Electronic); then they were made hydrophobic with n-octyltrichlorosilane.  UV absorption measurements were recorded with a Hitachi U-3000 UV-Vis spectrophotometer.  The molar ratio of the tBCPV in the copolymer were determined from 1H NMR of p(TDMA-tBVPC).  Molecular weight was determined with a Toyo Soda gel permeation chromatography (GPC) using a polystyrene standard.  IR spectra were measured with a JASCO-IR 230 spectrometer.  Deep UV irradiation was carried out with a deep UV lamp (UXM-501MA, USHIO) through an IR-cut filter.  The thickness of copolymer LB film was determined with surface profilometry using a Sloan Dektak 3ST.  Gold film was deposited onto a glass substrate with a vacuum evaporator (V-KS200, Osaka Vacuum, Ltd).

Results and Discussion

Formation of Copolymer LB Films

The molecular weight of p(TDMA-tBVPC) are summarized in Table 1.  The copolymer(p(TDMA-tBVPC)) was spread on the water subphase from chloroform solution (ca. 1mM) to measure surface pressure (π) - area(A) isotherms (Figure 2).  The copolymer p(TDMA-tBVPC) monomers have collapse pressure.  Their curves stand sharply.  We can conclude that they can form a condensed monomer on the water subphase.  The p(TDMA-tBVPC) monolayer could be transferred onto a solid substrate with a transfer ratio of almost unity.  UV absorption spectra of p(TDMA-tBVPC56) LB film on quartz were measured as a function of the number of layers (Figure 3).  The absorbance at 193 nm apparently increases linearly with the number of layers deposited, indicating the regular deposition of the copolymer monolayer onto the solid substrate.

Table 1. Various copolymers of TDMA with tBVPC.

Copolymer

n (tBVPC mol%)

Mn (10-4)

Mw (10-4)

Mw/Mn

p(DDMA-tBVPC23)

23

0.96

2.20

2.29

p(DDMA-tBVPC35)

35

1.21

2.10

1.73

p(DDMA-tBVPC56)

53

2.60

4.10

1.58



AZojomo - The "AZo Journal of Materials Online" Surface pressure(π) –(A) area isotherms of p(TDMA-tBVPC) measured at 15˚C.  (A: p(TDMA-tBVPC23), B: p(TDMA-tBVPC35), C: p(TDMA-tBVPC56).

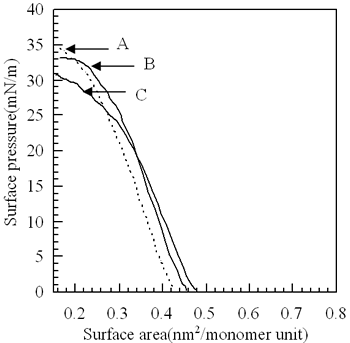

Figure 2.  Surface pressure(π) –(A) area isotherms of p(TDMA-tBVPC) measured at 15˚C.  (A: p(TDMA-tBVPC23), B: p(TDMA-tBVPC35), C: p(TDMA-tBVPC56).

AZojomo - The "AZo Journal of Materials Online" UV absorption spectra of p(TDMA-tBVPC65) LB films as a function of deposited layers. Inset; plots of the absorbance at  193 nm vs. the number of LB films deposited.

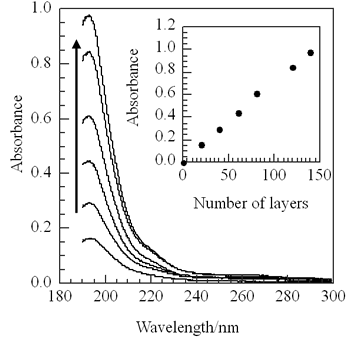

Figure 3. UV absorption spectra of p(TDMA-tBVPC65) LB films as a function of deposited layers. Inset; plots of the absorbance at  193 nm vs. the number of LB films deposited.

Photolithographic Properties of p(TDMA-tBVPC) LB Films

The p(TDMA-tBVPC56) LB film with 60 layers was directly exposed to a deep UV lamp (86mW/cm2) through a photomask without no monochromatic filter in the air for 60 min and then developed with 1% tetramethylammonium hydroxide (TMAH) aqueous solution.  As shown in Figure 4, we obtained a clear positive-tone pattern with a resolution of 0.75 µm, which is the resolution limit of the photomask employed in the present work.  Among the photopatterns of the LB films (20, 40, 60, and 80 layers), the LB film with 60 layers gave the finest resolution under the present condition.  Therefore, the subsequent experiments for the sensitivity were carried out with 60 layers of LB films.

AZojomo - The "AZo Journal of Materials Online" An optical micrograph of p(TDMA-tBVPC56) LV film with 60 layers irradicated with deep UV lamp for 60 mins in air followed by the development with 1% TMAH aqueous solution for 20s

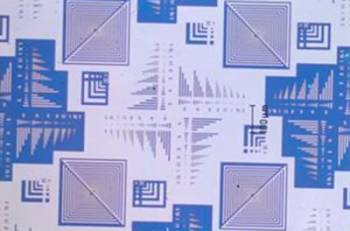

Figure 4. An optical micrograph of p(TDMA-tBVPC56) LV film with 60 layers irradicated with deep UV lamp for 60 mins in air followed by the development with 1% TMAH aqueous solution for 20s

To estimate the sensitivity of lithographic property for the LB film, the residual thickness of the LB films in the exposed portion was measured as a function of the exposure time (Figure 5).  It should be noted that the p(TDMA-tBVPC56) LB films are more sensitive than the homopolymer [p(TDMA)] LB film (Figure 5) [11].  Moreover, there are apparently two steps in the decrease in the thickness of the p(TDMA-tBVPC56) LB film,  while the monotonic decrease in the thickness was observed in the sensitivity curve of all poly(alkylmethacrylamide) LB films which undergo main chain scission [11].  Since the light intensity at 193 nm (λmax of the copolymers) from the deep UV lamp was very weak and was not able to be estimated exactly, the quantitative analysis of the sensitivity of the LB films could not be determined.  From the shape of the sensitivity curve of p(TDMA-tBVPC56)LB films, however, it is noticeable that there are two steps in the process of photodecomposion; the deprotection of t-butoxycarbonyloxy group is predominant in the initial region and consequently the main chain scission due to the TDMA fragmentation occurs.  The normalized film thickness decreases with exposure time, that is, the copolymer in the LB film is effectively decomposed by deep UV irradiation and removed completely with development of alkaline solution.

AZojomo - The "AZo Journal of Materials Online" Sensitivity curves of p(TDMA-tBVPC56) and p(TDMA) LB films.

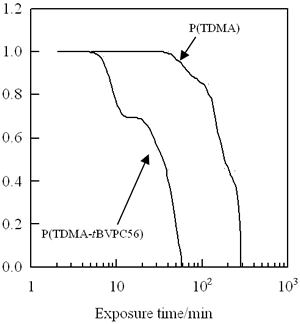

Figure 5 Sensitivity curves of p(TDMA-tBVPC56) and p(TDMA) LB films.

Etching Resistance

Etching of p(TDMA-tBVPC56) LB film against wet etching was also investigated as follows: the p(TDMA-tBVPC56) LB film with 20 layers was deposited on a gold substrate; then, it was irradiated through a photomask with deep UV lamp (86 nW/cm2); finally, it was developed with alkaline solution.  Next, the positive-tone patterned substrate was immersed into a mixed solution of ammonium iodide, iodide, ethanol and water (etchant).  Finally the LB film on gold film was removed with chloroform.  Figure 6 shows the patterns of gold film after the etching.  Resolution of 1.0 µm for gold film was obtained.  This indicates that the copolymer p(TDMA-tBVPC56) LB film with at least 20 layers has a high etching resistance for etchant.

AZojomo - The "AZo Journal of Materials Online" Etched pattern of gold film on the glass substrate

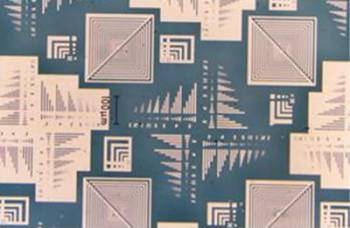

Figure 6. Etched pattern of gold film on the glass substrate.

Photodecomposition of Copolymer LB Films

The photopattern formation in copolymer LB films was investigated for the photodecomposition mechanism.  To obtain the significant change in the experimental data, p(TDMA-tBVPC56) LB film with 40 layers were used for UV and IR spectra, and p(TDMA-tBVPC56) cast film was utilized for GPC measurements.  First, absorption spectra change of p(TDMA-tBVPC56) LB film with 60 layers under deep UV irradiation was measured (Figure 7).  The absorption band at 193 nm is assigned to the amide group and the group of t-butoxycarbonyloxy group.  The decrease in the absorbance at 193 nm indicates that the main chain scission, photodecomposition of aromatic ring or t-butoxycarbonyloxy group occurs by UV light irradiation, leading to the formation of volatile low molecular weight compounds such as carbon dioxide, isobutylene [16], or form conjugated structure because of the presence of a broad absorptive tail at wavelength above 230 nm.

AZojomo - The "AZo Journal of Materials Online" Changes of UV absorption spectra of p(TDMA-tBVPC56) LB films with 70 layers by deep UV irradiation at ambient air

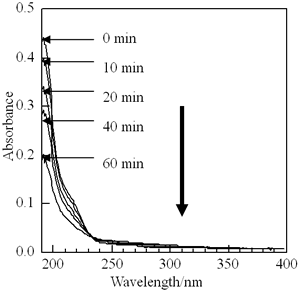

Figure 7.Changes of UV absorption spectra of p(TDMA-tBVPC56) LB films with 70 layers by deep UV irradiation at ambient air.

In addition, the GPC measurement of the p(TDMA-tBVPC56) cast film was carried out to confirm the molecular weight change during the deep UV irradiation.  As clearly shown in Figure 8, the molecular weight decreased with irradiation time, and the curve became broader, indicating that the molecular distribution is larger than that of the initial state.  These findings suggest that the main chain scission also takes place.

AZojomo - The "AZo Journal of Materials Online" GPC curves of p(TDMA-tBVPC56) cast film as a function of exposure time of deep UV irradiation

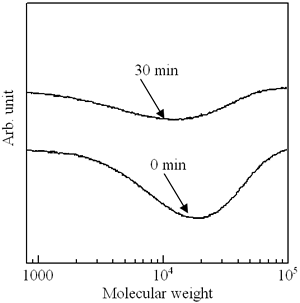

Figure 8. GPC curves of p(TDMA-tBVPC56) cast film as a function of exposure time of deep UV irradiation.

The absorbance at 3350 cm-1 in the IR spectra of the LB film, assigned to the stretching vibration of hydroxy group, was increased after irradiation (Figure 9), which is the evidence that hydroxy group was produced by UV irradiation [11, 17].  The band at 1750 cm-1, which is assigned to carbonyl group, is attenuated by deep UV irradiation.  This also means that the t-butoxycarbonyloxy group is removed from the side chain to give a phenol group which can be dissolved in alkaline solution [15].  Moreover, the absorbance at 2910 cm-1 assigned to the alkyl group is drastically decreased after 30 min irradiation.  This implies that the LB film is more dissolved in alkaline solution due to the change of the molecular weight.  Although the difficulty still remains in distinguishing the difference between main chain and side chain scissions, these findings support the above discussion in the sensitivity curve for p(TDMA-tBVPC56) LB film.

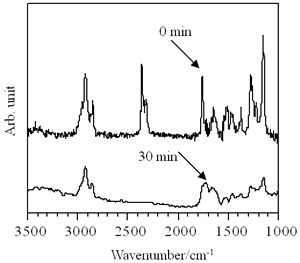

AZojomo - The "AZo Journal of Materials Online" IR spectra of p(TDMA-tBVPC56) LB films with 80 layers by deep UV irradiation

Figure 9. IR spectra of p(TDMA-tBVPC56) LB films with 80 layers by deep UV irradiation.

Conclusions

The copolymers [p(TDMA-tBVPC)] were prepared by free radical copolymerization.  The copolymer has a structure being subjected to decomposition in main chain scission and side chain cleavage.  The polymer forms a stable monolayer on the water subphase and the monolayer can be transferred onto a solid substrate.  On irradiation with deep UV light on the LB film, the positive tone patterns could be obtained after development with an alkaline aqueous solution.  We also investigated the etching property of the underling gold.  The p(TDMA-tBVPC56) LB films with 20 layers have a high etching resistance with a resolution of 1.0 µm.  From the results we expect that the new copolymer [p(TDMA-tBVPC56)] can be used in the lithographic process in future.

Acknowledgements

We would like to thank Prof. T. Miyazaki, and Dr. Y. Ando, Department of Applied Physics, Graduate School Engineering, Tohoku University, for the use of the surface profilometry.  This work was partially supported by Grant-in-Aid for the “Research for the Future” Program (JSPS-RFTF97P00302) from the Japan Society for the Promotion of Science.
